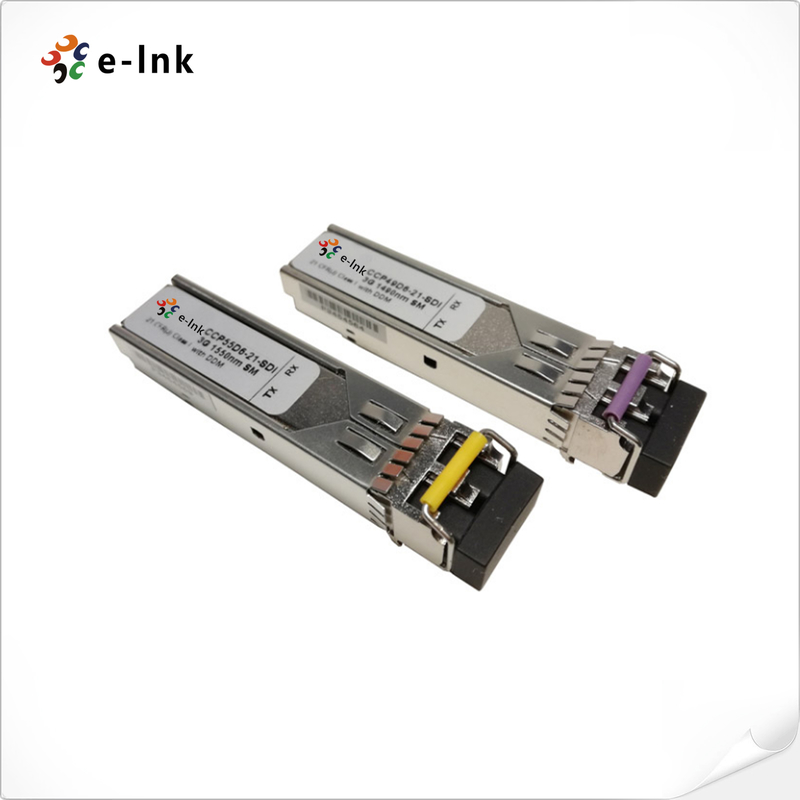

12G-SDI CWDM 1270~1610nm 10km Digital Video SFP Optical Transceiver

Name: 12G-SDI CWDM 1270~1610nm 10km Digital Video SFP Optical Transceiver
Brand: E-link China Technology Co.,LTD
SKU: LNK-CWDM-SFP12G-XX10
Price: 395.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: RoHS

Model Number: LNK-CWDM-SFP12G-XX10

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Transceiver Internal Temperature:	-5 To +70°C	VCC3 Internal Supply Voltage:	3.0 To 3.6V
Laser Bias Current:	0 To 90mA	Tx Output Power:	-5 To +4dBm
Rx Input Power:	-15.5 To +0.5dBm	Immunity:	IEC 61000-4-3

Transceiver Internal Temperature:	-5 To +70°C
VCC3 Internal Supply Voltage:	3.0 To 3.6V
Laser Bias Current:	0 To 90mA
Tx Output Power:	-5 To +4dBm
Rx Input Power:	-15.5 To +0.5dBm
Immunity:	IEC 61000-4-3

Description

12G-SDI CWDM 1270~1610nm 10km Digital Video SFP Optical Transceiver

Advantages

◎ Supports 12Gb/s serial optical interface

◎ Up to 10km transmission on SMF

◎ CWDM DFB laser and PIN receiver

◎ Hot-pluggable SFP+ footprint

◎ SFI high speed electrical interface

◎ Built-in digital diagnostic functions

◎ Single +3.3V power supply

◎ Power consumption less than 1.0 W

◎ Operating case temperature: -5~+70°C

◎ SFP+ MSA package with duplex LC connector

Overview

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 12Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: an Un-cooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Ordering Information

Model	Description
LNK-CWDM-SFP12G-2710	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1270nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-2910	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1290nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-3110	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1310nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-3310	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1330nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-3510	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1350nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-3710	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1370nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-3910	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1390nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-4110	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1410nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-4310	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1430nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-4510	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1450nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-4710	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1470nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-4910	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1490nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-5110	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1510nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-5310	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1530nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-5510	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1550nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-5710	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1570nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-5910	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1590nm, 10km, LC, DDMI, MSA
LNK-CWDM-SFP12G-6110	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1610nm, 10km, LC, DDMI, MSA

Application

◎ 12GBASE-LR/LW 12G Ethernet

◎ Other optical links
