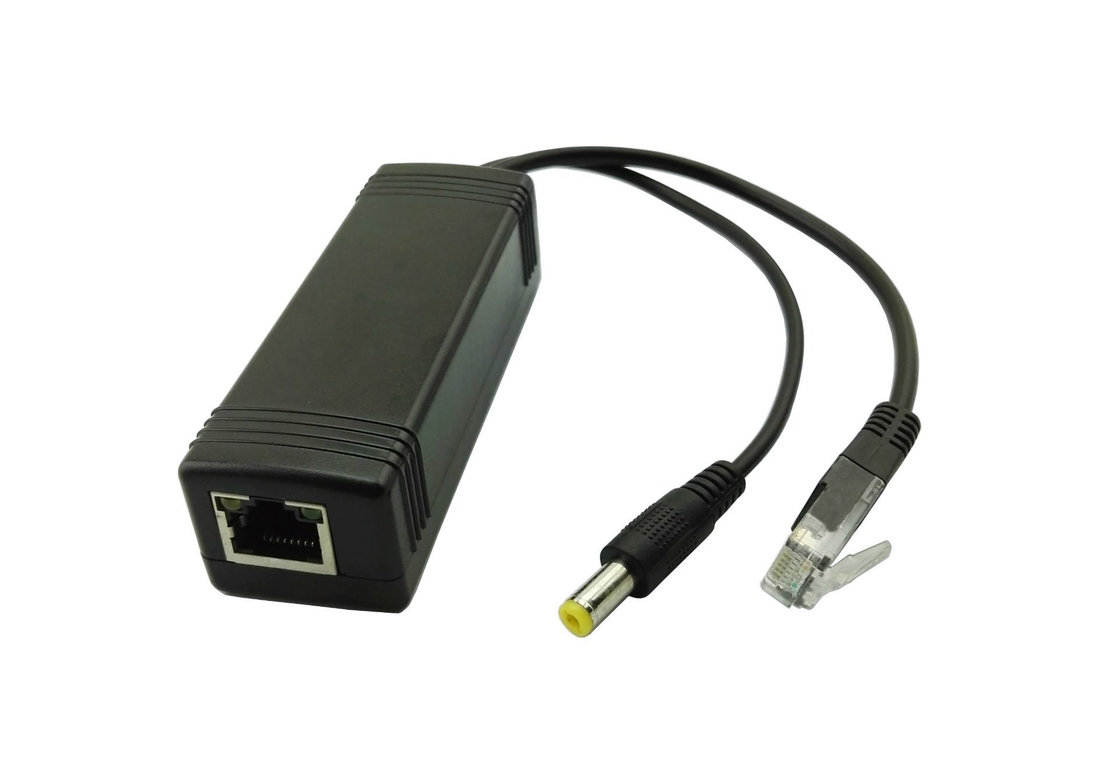

10/100/1000M 5V 3A PoE Splitter

Name: 10/100/1000M 5V 3A PoE Splitter
Brand: E-link China Technology Co.,LTD
SKU: LNK-SP15WG
Price: 42.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-SP15WG

Document: E-link LNK-SP15WG POE Split....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Size:	250mm28mm24mm	Radiation:	CE Mark,commercial,FCC Part 15 Class B，RoHS
Weight:	0.2kg	Operating Temperature:	-20°～55°C
CasingCasingCasingCasingCasing:	Aluminum Case

Product Size:	250mm28mm24mm
Radiation:	CE Mark,commercial,FCC Part 15 Class B，RoHS
Weight:	0.2kg
Operating Temperature:	-20°～55°C
CasingCasingCasingCasingCasing:	Aluminum Case

Description

10/100/1000M 5V 3A PoE Splitter

Product Advantages

► DC output 5V 3A

► 52V: MAX transmission 150M (With full copper low resistance network lines)

► Comply to IEEE802.3af/at

► Power Input:DC38～56V

► Plug＆Play

► Built-in high performance chip and high specification circuit board

► Stable:AKros AS1138, with lightning protection

► RJ45 full shield port

► Full bridge design, non polarity input

Overview

LNK-SP15WG PoE splitter, Develop used for Ethernet power supply application scenarios, device does not support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at” POE power supply; DC output 5V 3A; The POE signal can be separated into network signal and electric power.
PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Technical Indexes

Model	LNK-SP15WG
DC out	5V 3A
Power	15W
distance	10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-TX: cat 5 and above UTP(≤100m)
Port	1 GE(10/100/1000M) POE input+1 Network+1 DC output
POE	IEEE POE++/IEEE 802.3af /IEEE802.3at, IEEE802.1af DTE Power via MDI
Network protocol	IEEE 802.3i 10BASET； IEEE 802.3u 100BASETX； IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control
Environmental	Working Temperature:-20°～55°C Storage temperature:-40°～85°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing
Radiation	CE mark,commercial,FCC Part 15 Class B,RoHS
Product Size	250mm28mm24mm
Weight	0.2kg

Ordering Information

Model	Description
LNK-SP15WG	PoE Splitter: 1x10/100/1000M POE input + 1xNetwork +1xDC output, MAX 15 watts, DC output 5V 3A
