Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-GPON-N01
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Power Splitter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
1-Port Gigabit LAN EPON ONU |
Dimension: |
83mm*83mm*25mm(length*width*height) |
Net Weight: |
0.24Kg |
Working Temperature: |
-5~+55℃ |
Keyword: |
1-Port Gigabit LAN EPON ONU |
Dimension: |
83mm*83mm*25mm(length*width*height) |
Net Weight: |
0.24Kg |
Working Temperature: |
-5~+55℃ |

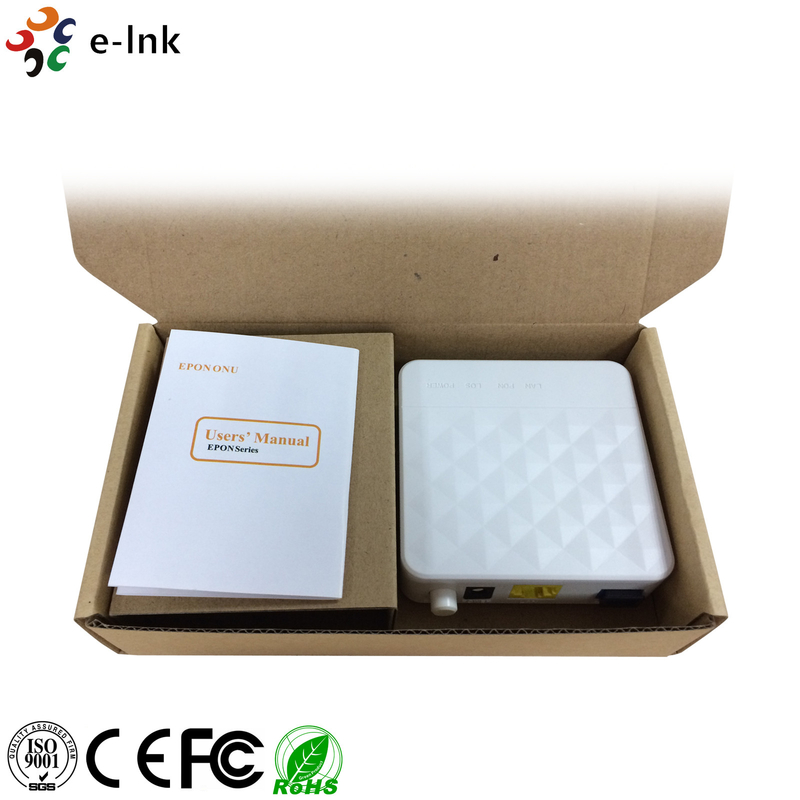

1 Port Gigabit Ethernet Splitter GPON ONU Support LED Indication
1-Port Gigabit LAN EPON ONU
Advantages
Technical Indexes
| Technical items | Description |
| Optical property | |
| Upstream PON interface |
1 GPON interface, SC single-mode/single-fibre, symmetric 1.25 Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Optical output power | -1~+4dBm |
| Receiving sensitivity | <-26dBm |
| Farthest distance | 20km between OLT and ONU |
| Optical interface | SC/UPC connector |
| Downstream LAN interface |
1*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
| Layer 2/3 switch | Support IEEE802.1Q VLAN |
| Support speed rate inhibition of broadcast packet at ONU | |
| IEEE 802.3X flow control | |
| Support 16 multicast addresses at each LAN port | |
| Security strategy |
Support AES-128,data encryption for both upstream and downstream Support dynamic update of key |
| Management maintenance | Centralized OLT management based on OAM, WEB, CLI, Upgrade software remotely |
| Hardware information | |
| Indicators |
4 indicators, for status of power supply, PON port and 1 Giga-Ethernet port. |
| DC power supply | +12V, external AC-DC power adaptor |
| Chipset | zte chipset |
| Power switch | 1 |
| Power consumption | ≤2.5W |
| Operating condition | Operating temp: -5~+55℃ Operating humidity:10~90%(non-condensed) |
| Storing condition | Storing temp: -30~+60℃ Storing humidity:10~90%(non-condensed) |
| Dimension | 83mm*83mm*25mm(length*width*height) |
| Net weight | 0.24Kg |
Overview
E-link mini GPON ONU terminal device , which applies to pure broadband access. It adopts mini-type compact structure design with high-integration and can provide 1 GE(RJ45)interfaces. Supports the technology of layer 2 Ethernet switch and it’s easy to maintenance and manage. It can be applied to FTTH/FTTP access application for resident and business users. and it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of GPON Equipment (V3.1).
Ordering Information
| Product name | Product description |
| LNK-GPON-N01 | GPON ONU 1*SC SM 20KM Tx1310nm,Rx1490nm,1*10/100/1000Base-T,12VDC |
