GJFJH Cable Fiber Optic Accessories Soft Flexible Easy To Splice
GJFJH fiber optic cable
Characteristics:
Good uniformity of the outer diameter of tight buffer fiber and excellent strip ability
Good performance of flame-retardand
Low induced attenuation within the operating temperature range
Excellent geometrical dimension of the fiber
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Overview

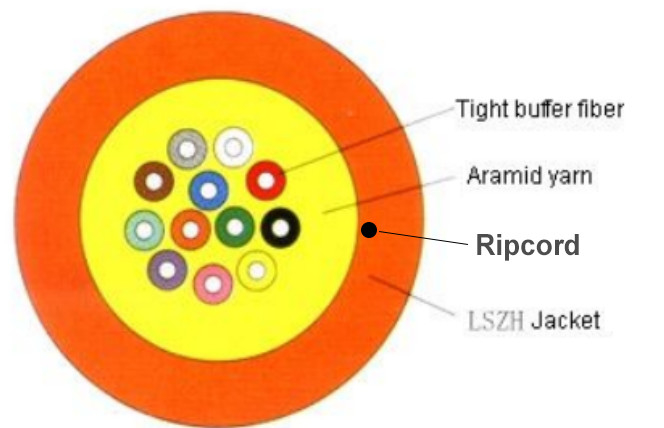

02~12 fiber, Φ900μm Tight buffer fiber, Aramid yarn, LSZH Jacket
Specification
| 50/125μm | 62.5/125μm | G.652 | G.655 | ||
| Attenuation(+20℃) | @850nm | ≤3.5dB/km | ≤3.5dB/km | ||
| @1300nm | ≤1.5dB/km | ≤1.5dB/km | |||
| @1310nm | ≤0.45dB/km | ≤0.50dB/km | |||
| @1550nm | ≤0.30dB/km | ≤0.50dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500MHz·km | ≥200MHz·km | ||
| @1300nm | ≥1000MHz·km | ≥600MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
| Δα(-20℃~+85℃) Attenuation at temperature cycling Δα(-20℃~+85℃) |
@1300nm | ≤0.50dB/km | ≤0.50dB/km | ||
| @1550nm | ≤0.20dB/km | ≤0.20dB/km | |||
1.Used in indoor cabling, especially used as distribution cable;
2.Used as interconnect lines of equipments, and used in optical connections in optical communication equipment rooms and distribution frames;
3.Used in pigtails and patch cords.
