Heavy Duty Fiber Optic Accessories Single Mode Flexible Optical Cable

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $5-269

Packaging Details: DIN-Rail Standoff Bracket Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              10cm Fiber Optic Accessories, 2m Flexible Optical Cable, 1m Single Mode Fiber Cable


Fiber Length:	1m, 2m….. Any Length Optional.	Length And Tolerance:	10cm
Operating Temperature:	-40C ~ +85C	Storage Temperature:	-40C ~ +85C

Fiber Length:	1m, 2m….. Any Length Optional.
Length And Tolerance:	10cm
Operating Temperature:	-40C ~ +85C
Storage Temperature:	-40C ~ +85C

Description

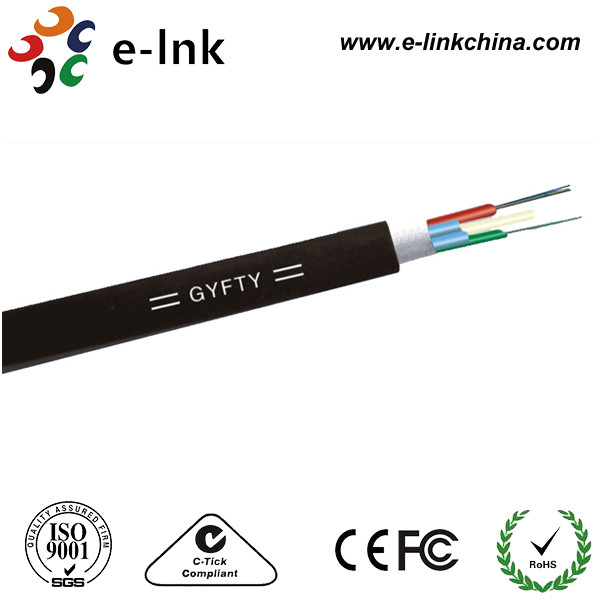

Heavy Duty Fiber Optic Accessories Single Mode Flexible Optical Cable

Heavy Duty Fiber Optic Accessories Single Mode Flexible Optical Cable

Heavy Duty Flexible Single Mode Fiber Cable

Specification

Item	Item	Parameter/ Information
Appearance	Outer diameter	3.0mm士0.1mm
	Color	Black
	Standard length	1000m
Material	Fiber	0.25mm colored fiber
	Armor	Stainless steel, SUS200CU
	Outer jacket	TPU
Fiber	Type	SM
Fiber	Fiber count	2cores
Characteristics	Attenuation	≤0.4 dB/km(1310nm)
Characteristics	Attenuation	≤0.3 dB/km(1550nm)
Features	Working temperature	-40℃~+85℃
Features	Storage temperature	-40℃~+85℃
Fire-resistance of the jacket	Level	UL94V-0
Weight	Net weight	10kg/1000m

Connector Specification

ITEM	PARAMETER
Connector type	LC/UPC, SC/UPC, FC/UPC, ST/UPC.	LC/APC, SC/APC, FC/APC, ST/APC
Insertion Loss	<=0.2db	<=0.3db
Return Loss	>=50db	>=60db
Fiber mode	Single-mode/ Multi-mode, G.652.D
Operating wavelength	1310, 1550nm
Test wavelength	1310,1550nm
Repeatability	<=0.1
Interchangeability	<=0.2dB
Durability	<=0.2dB
Fiber Length	1m, 2m….. any length optional.
Length and tolerance	10cm
Operating Temperature	-40C ~ +85C
Storage Temperature	-40C ~ +85C
