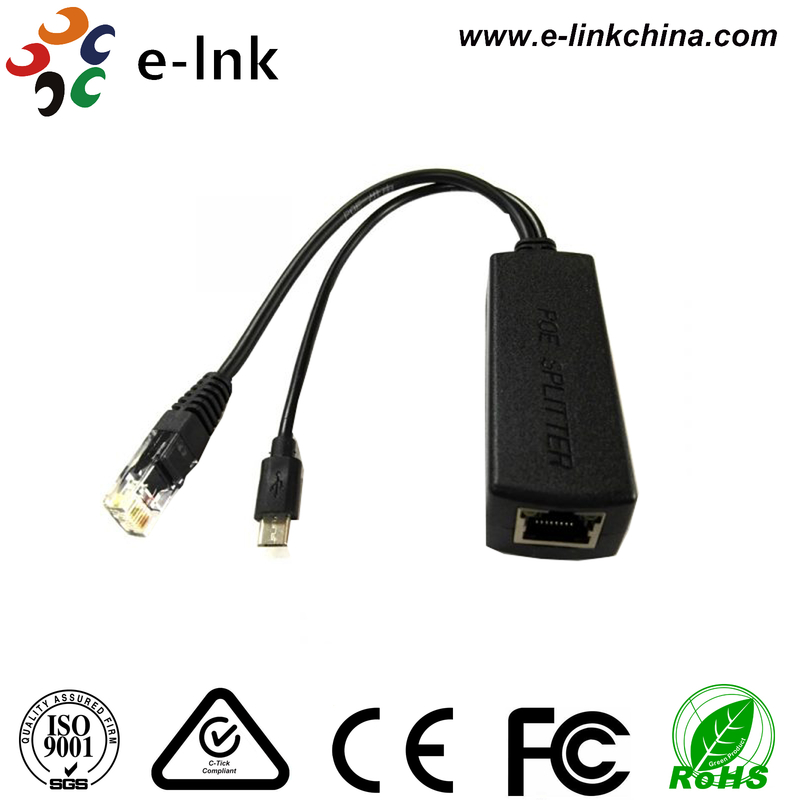

Gigabit 5V 2A PoE Splitter with Micro USB Port

Name: Gigabit 5V 2A PoE Splitter with Micro USB Port
Brand: E-link China Technology Co.,LTD
SKU: LNK-SP5VG-USB
Price: 42.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-SP5VG-USB

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-7working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Power Pin:	1/2(+), 3/6(-); 4/5(+), 7/8(-)	Power Input:	44-57V DC
Power Output:	5V 2.4A DC	Product Size:	83 X 28 X 22mm
Weight:	59g

Power Pin:	1/2(+), 3/6(-); 4/5(+), 7/8(-)
Power Input:	44-57V DC
Power Output:	5V 2.4A DC
Product Size:	83 X 28 X 22mm
Weight:	59g

Description

Gigabit 5V 2A PoE Splitter with Micro USB Port

Gigabit 5V 2A PoE Splitter with Micro USB port

Advantage

► Compliant with IEEE 802.3af

► Isolation: 2.5kV

► Power Input: DC48V

► Power Output: DC5V 2.4A

► Data Output Port: RJ45 Male

► Power Output Port: Micro USB Power Plug

► Data Transfer Rate: 10/100Mbps

► Devices will be detected before poe input

► Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)

Overview

The LNK-SP5VG-USB is designed specially to fill the demand of the micro USB power input

products such as iPad, Dropcam, Raspberry Pi , Android, Tablet etc. It can be transmitted

power and data signals through the cable transmission.

Technical Indexes

Model	LNK-SP5V-USB
Standard	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af
Power Pin	1/2(+), 3/6(-); 4/5(+), 7/8(-)
Power Input	44-57V DC
Power Output	5V 2.4A DC
Date Rate	10/100Mbps
Distance	10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m)
LED Indicator	POE input indicator; PD output indicator
Environmental	Working Temperature: 0°C~55°C Storage temperature: -20°C~75°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing
Radiation	CE mark,commercial,FCC Part 15 Class B,RoHS
Product Size	83 x 28 x 22mm
Weight	59g
