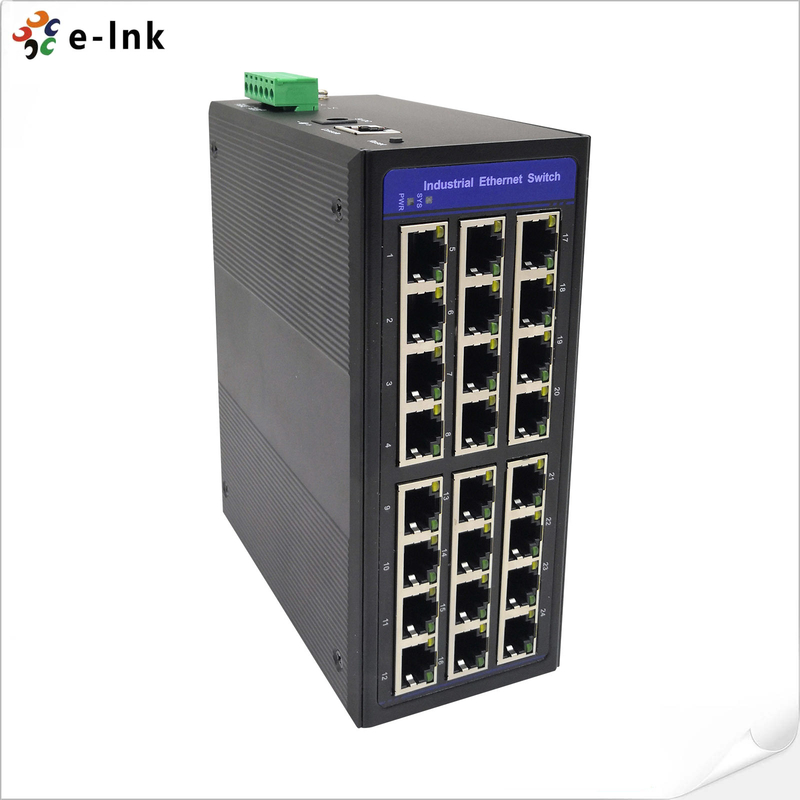

Industrial 1000M 24-Port Managed Switch Gigabit Ethernet DIN-Rail Mount

Industrial 1000M 24-Port Managed Switch Gigabit Ethernet DIN-Rail Mount

Product Overview

Premium Industrial Networking Solution
The LNK-GYM7024G Series represents E-link's advanced 24-port industrial managed Ethernet switch, delivering high-performance network connectivity for mission-critical applications in harsh environments. This ruggedized networking device features 24×10/100/1000Base-T RJ45 ports with industrial-grade reliability and advanced management capabilities.

Key Features & Benefits

1. High-Density Connectivity

   • 24× Gigabit Ethernet ports for bandwidth-intensive industrial applications

   • Non-blocking switching architecture ensures full wire-speed performance

   • Auto-negotiation on all ports for plug-and-play operation

2. Industrial-Grade Reliability

   • Extended temperature operation (-40°C to +80°C)

   • Dual redundant power inputs (12-48V DC) with polarity protection

   • Fanless metal housing with IP40 protection against dust/particles

3. Advanced Network Management

   • Layer 2+ features including VLAN, QoS, and RSTP

   • 10K jumbo frame support for data-intensive protocols

   • 8K MAC address table for large-scale deployments

Technical Specifications

1. High-Density Network Connectivity
✔ 24× 10/100/1000Base-T RJ45 Ports - Full Gigabit Ethernet connectivity with auto-negotiation
✔ Auto-MDIX Technology - Automatic cable type detection for simplified installation
✔ Non-blocking Switching Architecture - Ensures full wire-speed performance across all ports

2. Advanced Networking Performance
✔ 10K Jumbo Frame Support - Optimizes throughput for industrial video and data transmission
✔ IPv6/IPv4 Dual Stack - Ensures future-proof network compatibility
✔ 8K MAC Address Table - Supports large-scale device deployments

3. Industrial-Grade Protection
✔ 8KV Surge Protection - Comprehensive defense against power surges on all interfaces
✔ Reverse Polarity Protection - Prevents damage from incorrect DC power connections (12-48V)
✔ Overcurrent Protection - Automatic shutdown for equipment safety

4. Energy Efficiency & Management
✔ IEEE 802.3az EEE - Reduces power consumption up to 70% during low traffic
✔ Comprehensive Status Indicators - Real-time monitoring of port status and system health
✔ DIN-Rail/Wall Mounting - Flexible installation in industrial control cabinets

5. Robust Mechanical Design
✔ Fanless Metal Enclosure - IP40-rated for dust protection and silent operation
✔ Extended Temperature Range - Reliable operation from -40°C to +80°C
✔ Industrial-Grade Components - Ensures long-term reliability in harsh environments

6. Layer 2 Management Features
✔ VLAN Support - Enables network segmentation and security
✔ QoS Prioritization - Ensures bandwidth allocation for critical applications
✔ RSTP Protocol - Provides network redundancy and fast convergence

Application Scenarios

1. Industrial Automation & Smart Manufacturing
• Serves as mission-critical network backbone in Industry 4.0 smart factories, connecting PLCs, HMIs, and robotic workstations through high-density 24-port connectivity
• Provides deterministic Ethernet communication for SCADA systems with 10K jumbo frames ensuring low-latency data transmission
• Features 8KV surge protection for reliable operation in electrically noisy production environments

2. Large-Scale Enterprise Networks
• Supports high-density workstation connectivity in corporate campus environments
• Enables VLAN segmentation for departmental network isolation with QoS prioritization
• Provides rack-mount deployment for data center edge applications

3. Intelligent Transportation Systems (ITS)
• Powers roadside communication units and traffic monitoring devices with -40°C to +80°C operation
• Delivers network redundancy through RSTP protocol for mission-critical traffic management
• Withstands vibration and extreme temperatures in outdoor cabinet installations

4. Utility & Energy Sector Applications
• Complies with IEC 61850-3 standards for substation automation systems
• Provides dual power inputs for 24/7 operation in power distribution stations
• Features fanless design for noise-sensitive utility environments

5. Smart City Infrastructure
• Supports municipal network deployments with IPv6 readiness
• Enables building automation systems including access control and surveillance networks
• Provides industrial-grade reliability for outdoor kiosk and digital signage applications

Specifications

Order Information

Application Display Diagram
