Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC204G
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Industrial Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Industrial Ethernet Switch 4 Port |
Input Power: |
12~58VDC Redundant Power |
RJ45 Port: |
4 Port 10/100/1000Base-T Ethernet |
Optical Port: |
2 Port 1000Mbps (SFP, SC, FC, ST Optional) |
Weight: |
0.5Kg |
Casing: |
IP40 Aluminum Case |
Keywords: |
Industrial Ethernet Switch 4 Port |
Input Power: |
12~58VDC Redundant Power |
RJ45 Port: |
4 Port 10/100/1000Base-T Ethernet |
Optical Port: |
2 Port 1000Mbps (SFP, SC, FC, ST Optional) |
Weight: |
0.5Kg |
Casing: |
IP40 Aluminum Case |

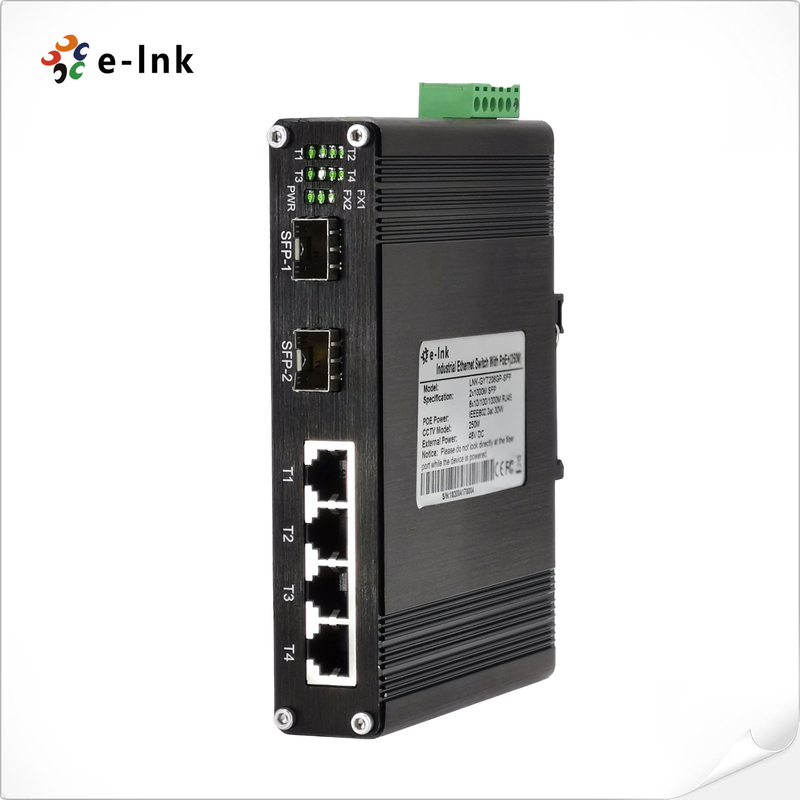

Redundant Power Input Unmanaged Network Switch 4 Port Industrial
Industrial Unmanaged 4 Port Din Rail Ethernet Switch
4 Port 10/100/1000BASE-T + 2 Port 1000BASE-X SFP Uplink
4 Port Unmanaged Ethernet Switch Advantages
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
4 Port Industrial Ethernet Switch Overview
LNK-IMC204G is a 4 ports 10/100/1000Base-TX + 2 port 1000Base-FX Hardened Ethernet switch. The Switch has 4 TP ports and 2 fiber ports. TP (RJ45) support 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber.
Industrial 4 Port Gigabit Ethernet Switch Technical Indexes
|
Connector: |
4 x RJ45 |
|
Optical Port: |
2 x 1000Base-FX (SFP, SC, FC, ST Optional) |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Input Power: |
12~58VDC , Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet(Per Port): |
Link/Activity |
|
Fiber Port: |
FX1, FX2 |
|
Regulatory Approvals |
|
|
ISO9001 |
|
4 Port Din Rail Industrial Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC204G |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC204G-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC204GS-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC204GF-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC204G-SFP |
Industrial 4-port 10/100/1000BASE-T + 1-port 1000BASE SFP Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
