Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-4KDVI-2240
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: DVI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
Fiber Optic Extender |
Optical: |
1x SFP+ Port |
DVI Input / DVI Output: |
1x DVI 24+1 Female Connector |
Compliance: |
DVI1.0 / HDMI V1.4 |
Maximum Video Bit Rate: |
3.40 Gbps |
KM Support: |
USB Keyboard X 1 / USB Mouse X1 |
Keyword: |
Fiber Optic Extender |
Optical: |
1x SFP+ Port |
DVI Input / DVI Output: |
1x DVI 24+1 Female Connector |
Compliance: |
DVI1.0 / HDMI V1.4 |
Maximum Video Bit Rate: |
3.40 Gbps |
KM Support: |
USB Keyboard X 1 / USB Mouse X1 |

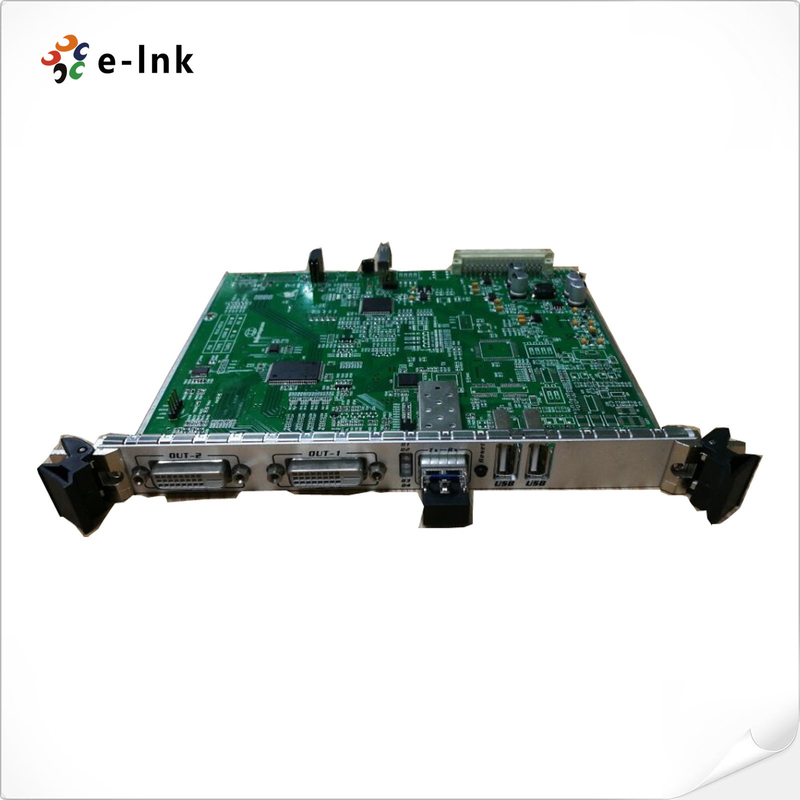

DVI Fiber Converter 5U Rack Mount 4K DVI KVM Fiber Optic Extender
DVI Fiber Optic Extender Advantages
►Support 5U rack
►Supports resolutions up to 3840*2160/30p, 4096x2160/30p, 3840*2160/60P(YCbCr 420), 4096*2160/60P(YCbCr 420)
►Supports 3840*2160/30p resolution with color depth up to 24 bits/pixel
►Supports bit-rates up to 3.4 Gbps/color,10.2 Gbps total
Technical Indexes
|
Supported Resolutions |
1920x1080/60p,3840x2160/30p, 4096x2160/30p, 3840x2160/60p(YCbCr 420),4096*2160/60P(YCbCr 420) |
|
Digital Audio Support |
7.1 channel LPCM, 192 kHz, 24-bit audio capability |
|
DVI Input / DVI Output |
1x DVI 24+1 Female connector |
|
Optical |
1x SFP+ port |
|
Fiber Cable Type / Max. Length |
50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters) |
|
KM Support |
USB Keyboard x 1 / USB Mouse x1 |
|
HDCP / EDID Pass-through Support |
only 300 meters |
|
5U Rack |
|
|
Number of slots |
16 |
|
Structure |
5U rack |
|
Power input |
AC Voltage: AC 85~265V; frequency: 50/60 Hz |
|
Size (WxHxD) |
482*221*300mm |
|
Max power consumption |
250W |
Overview
DVI (High-Definition Multimedia Interface) recently has become increasingly popular in the application of video and audio transmission system. In view of the extreme of electrical performances, however, the traditional copper wire cable imposes limits on signal transmission distance and signal quality. In reality, optical fiber is of low dispersion, which in turn has the strength of longer signal transmission distance and better signal transmission quality in comparison to the traditional copper wire cable.
Ordering information
| Item | Description |
|
LNK-4KDVI-2240 |
Card Type 4K DVI KVM Fiber Optic Extender with KVM, including 1 sender & 1 receiver, used by pairs |
| LNK-5U-DVI | 16-slot 5U Rack for 4K DVI KVM Fiber Extender |
