Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-SFP-10G-T
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: SFP Fiber Transceivers Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Bidirectional SFP Transceiver |
Data Rate: |
10000Mb/sec |
Applications: |
10 Gigabit Ethernet |
Cable: |
Cat 6a/7 Cable |
Input Swing: |
180~700mV |
Temperature: |
0℃ To 70℃ |
Keyword: |
Bidirectional SFP Transceiver |
Data Rate: |
10000Mb/sec |
Applications: |
10 Gigabit Ethernet |
Cable: |
Cat 6a/7 Cable |
Input Swing: |
180~700mV |
Temperature: |
0℃ To 70℃ |

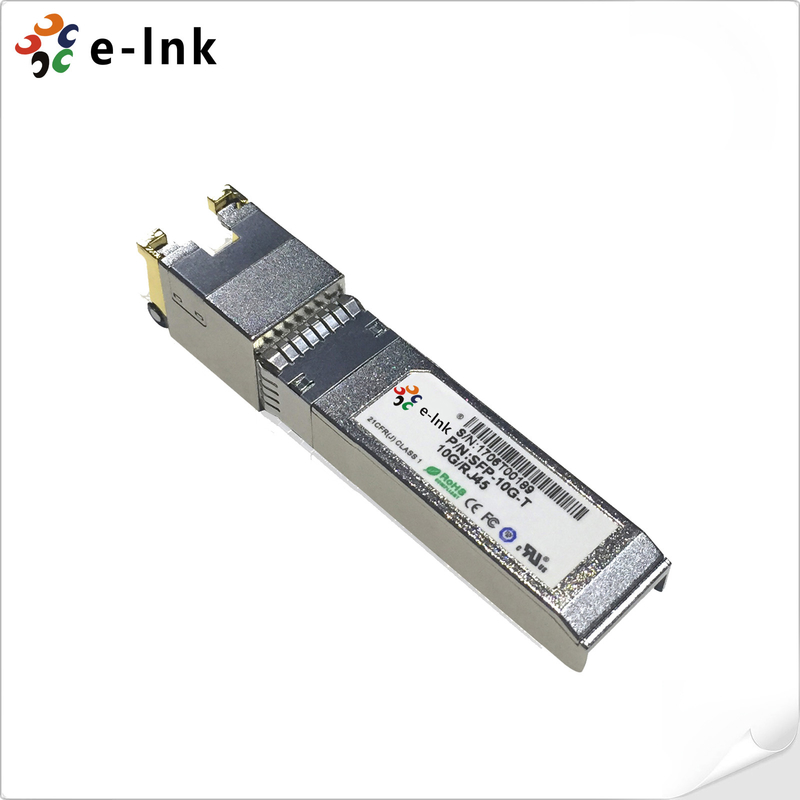

SFP Optical Module 10G Bidirectional SFP Module Fiber Optic Transceiver Connector
Commercial SFP Module Advantages
► Hot-pluggable SFP footprint
► RJ45 Connector
► Supports Links up to 30m using Cat 6a/7 Cable
► Fully metallic enclosure for low EMI
High-speed Electrical Interface Transmission Line-SFP
|
Parameter |
Symbol |
Min. |
Typ |
Max |
Units |
Notes/Conditions |
|
Line Frequency |
fL |
10 |
125 |
1000 |
MHZ |
5-level encoding,per IEEE 802.3 |
|
Tx Output Impedance |
Zout,TX |
|
100 |
|
Ohm |
Differential,for all frequencies between 1MHz and 125MHz |
|
Rx Input Impedance |
Zin,RX |
|
100 |
|
Ohm |
Differential,for all frequencies between 1MHz and 125MHz |
The LNK-SFP-10G-T has an input voltage range of 3.3V +/-5%,The 4 V maximum voltage is not allowed for continuous operation. E-link transceivers are Class 1 Laser Products comply with FDA regulations. Meet Class 1 eye safety requirements of EN 60825 and the electrical safety requirements of EN 60950.
Note:
1.Clock tolerance is +/- 50 ppm
2.By default, the LNK-SFP-10G-T is a full duplex device in preferred master mode
3.Automatic crossover detection is enabled. External crossover cable is not required
4. Multi- BASE-T operation requires the host system to have an SGMII interface with no clocks.
Ordering information
|
Part No. |
Data Rate |
Laser |
Fiber Type |
Distance |
Optical Interface |
|
LNK-SFP-10G-T |
10G |
N/A |
N/A |
30m |
RJ45 |
