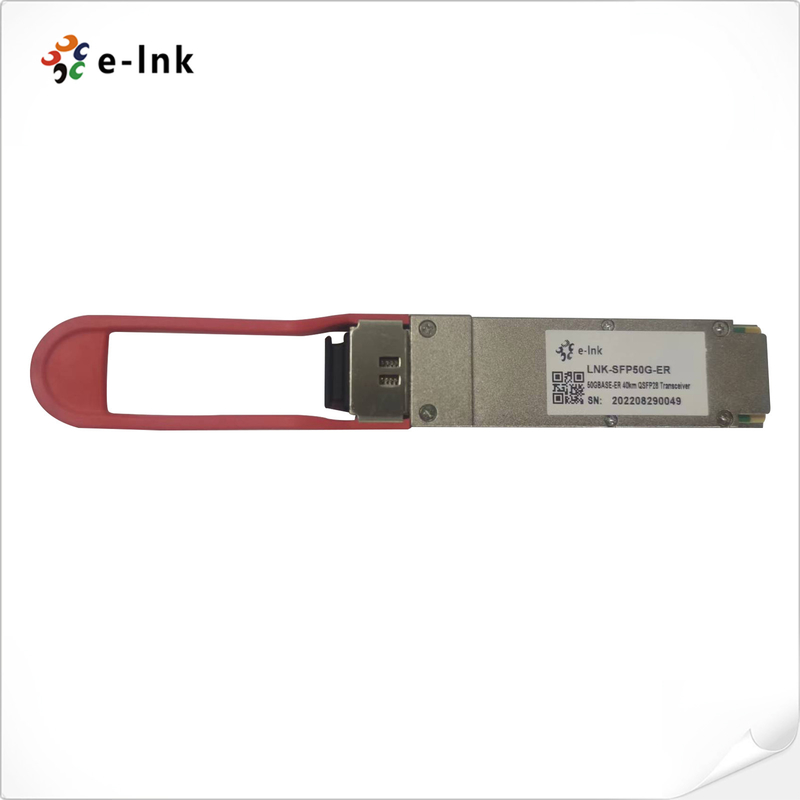

Generic Compatible 50GBASE-ER QSFP28 40km Duplex LC SMF Transceiver

Product Details

Place of Origin: China

Brand Name: E-link

Certification: RoHS,CE

Model Number: LNK-SFP50G-ER

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: To be negotiated

Packaging Details: SFP Fiber Transceivers

Delivery Time: 5-15working days

Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card

Supply Ability: 500PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

1310nm SFP Fiber Transceivers

,

Duplex LC SFP Fiber Transceivers

,

SMF duplex fiber transceiver

Keyword:
SFP Fiber Transceivers
Compatibility:
Cisco, HP, Juniper, Etc.
Connector Type:
LC
Data Rate:
10G
Humidity Range:
5% To 95%
Product Type:
SFP Fiber Transceivers
Temperature Range:
-40°C To 85°C
Keyword:
SFP Fiber Transceivers
Compatibility:
Cisco, HP, Juniper, Etc.
Connector Type:
LC
Data Rate:
10G
Humidity Range:
5% To 95%
Product Type:
SFP Fiber Transceivers
Temperature Range:
-40°C To 85°C
Description
Generic Compatible 50GBASE-ER QSFP28 40km Duplex LC SMF Transceiver

SFP Fiber Transceivers Generic Compatible 50GBASE-ER QSFP28 40km Duplex LC SMF



SFP Fiber Transceivers Overview

Generic Compatible 50GBASE QSFP28 transceiver supports up to 40km link lengths over OS2 SMF via a LC duplex connector. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters via the I2C interface. This transceiver is suitable for 50GBASE Ethernet, 5G Network Mid/Backhaul applications.



SFP Fiber Transceivers Advantages

  • Compliant with QSFP28 Standard:
    SFF-8665 Revision 1.9, SFF-8636 Revision 2.10a
  • Compliant with IEEE 802.3cn_D2p0 50GBASE-ER
  • Compliant with IEEE802.3 50GAUI-2 C2M electrical interface
  • Single 3.3V Supply Voltage
  • Maximum power consumption 4.5W
  • 0-70 ºC Case Operating Temperature
  • EML laser and APD Receiver
  • QSFP28 MSA package with duplex LC connector
  • Two Wire Serial Interface with Digital Diagnostic Monitoring

SFP Fiber Transceivers Technical Description

Form Factor

QSFP28

Max Data Rate

53.125Gbps

Wavelength

1310nm

Max Cable Distance

40km

Connector

Duplex LC

Media

SMF

Transmitter Type

EML

Receiver Type

APD

TX Power

0.4~6.6dBm

Receiver Sensitivity

<-17.6dBm

Powerbudget

18dB

Receiver Overload

-6dBm

Power Consumption

<4.5W

Extinction Ratio

6dB

DDM/DOM

Supported

Commercial Temperature Range

0 to 70°C (32 to 158°F)
