Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE
Model Number: LNK-SFP50G-BX10
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: SFP Fiber Transceivers
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 500PCS/Month
Keyword: |
SFP Fiber Transceivers |
Wavelength: |
1271nm-TX/1331nm-RX |
Application: |
Data Center/Telecom/Industrial |
Cable Type: |
Duplex |
Connector Type: |
LC |
Humidity Range: |
5~90% |
Keyword: |
SFP Fiber Transceivers |
Wavelength: |
1271nm-TX/1331nm-RX |
Application: |
Data Center/Telecom/Industrial |
Cable Type: |
Duplex |
Connector Type: |
LC |
Humidity Range: |
5~90% |

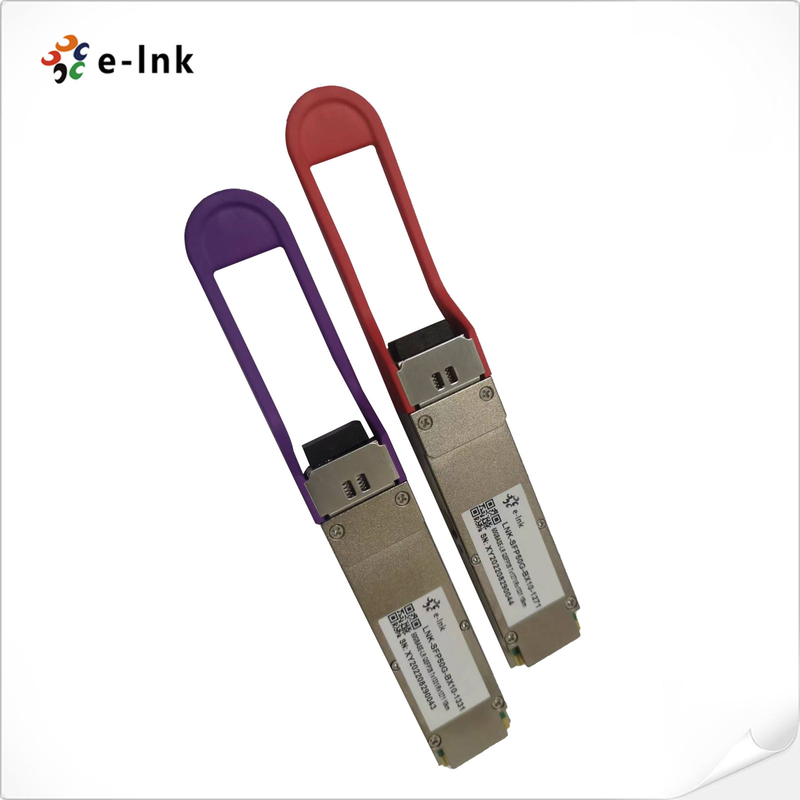

SFP Fiber Transceivers Generic Compatible 50GBASE-BX QSFP28 10km Simplex LC SMF
SFP Fiber Transceivers Overview
This transceiver is compliant with QSFP28 MSA, IEEE P802.3 standard. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters via the I2C interface. This transceiver is compliant with QSFP28 MSA, IEEE P802.3 standard, and is suitable for 50GBASE Ethernet, 5G Network Mid/Backhaul applications.
SFP Fiber Transceivers Advantages
SFP Fiber Transceivers Technical Description
Form Factor
QSFP28
Max Data Rate
53.125Gbps
Wavelength
1271nm-TX/1331nm-RX
Max Cable Distance
10km
Connector
Simplex LC
Media
SMF
Transmitter Type
LAN-WDM
Receiver Type
PIN
TX Power
-4.5~4.2dBm
Receiver Sensitivity
<-10.8dBm
Powerbudget
6.3dB
Receiver Overload
5.2dBm
Power Consumption
<3.5W
Extinction Ratio
3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
