Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE
Model Number: LNK-QSFP28-LR1-10
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: SFP Fiber Transceivers
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 500PCS/Month
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
QSFP28 |
Max Data Rate: |
103.125Gbps |
Connector: |
Duplex LC |
Wavelength: |
1310nm |
Max Cable Distance: |
10km |
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
QSFP28 |
Max Data Rate: |
103.125Gbps |
Connector: |
Duplex LC |
Wavelength: |
1310nm |
Max Cable Distance: |
10km |

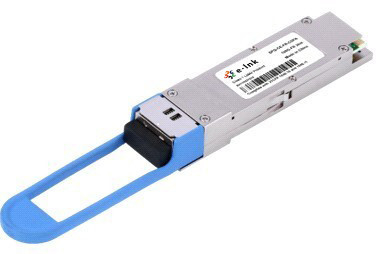

SFP Fiber Transceivers 100GBASE-LR QSFP28 2km DOM LC SMF
LNK-QSFP28-LR1-10 is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors.It is easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet.
SFP Fiber Transceivers Advantages
SFP Fiber Transceivers Technical Description
Form Factor
QSFP28
Max Data Rate
103.125Gbps
Wavelength
1310nm
Max Cable Distance
2km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-2.9~4dBm
Receiver Sensitivity
<-5.9dBm
Powerbudget
3dB
Receiver Overload
4dBm
Power Consumption
≤4.5W
Extinction Ratio
3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
