Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE
Model Number: LNK-QSFP28-SR4
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: SFP Fiber Transceivers
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 500PCS/Month
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
QSFP28 |
Max Data Rate: |
103.125Gbps |
Connector: |
MTP/MPO-12 |
Wavelength: |
850nm |
Max Cable Distance: |
100m |
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
QSFP28 |
Max Data Rate: |
103.125Gbps |
Connector: |
MTP/MPO-12 |
Wavelength: |
850nm |
Max Cable Distance: |
100m |

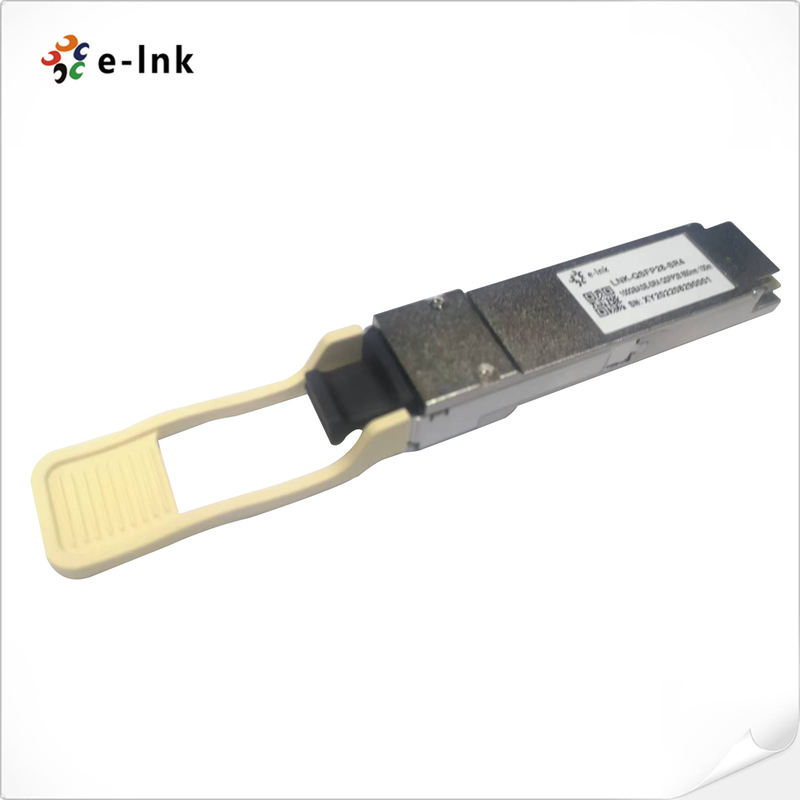

SFP Fiber Transceivers 100GBASE-SR4 QSFP28 100m DOM MTP/MPO-12 MMF
LNK-QSFP28-SR4 is designed for use in 100GBASE Ethernet throughput up to 100m over multi mode fiber (MMF) using a wavelength of 850nm via MTP/MPO-12 connectors.It is easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet.
SFP Fiber Transceivers Advantages
SFP Fiber Transceivers Technical Description
Form Factor
QSFP28
Max Data Rate
103.125Gbps
Wavelength
850nm
Max Cable Distance
100m
Connector
MTP/MPO-12
Media
MMF
Transmitter Type
VCSEL 850nm
Receiver Type
PIN
TX Power
-8.4~2.4dBm
Receiver Sensitivity
<-10.3dBm
Powerbudget
1.9dB
Receiver Overload
2.4dBm
Power Consumption
≤.1.8W
Extinction Ratio
>3dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
