Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE
Model Number: LNK-QSFP28-ZR4
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: SFP Fiber Transceivers
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 500PCS/Month
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
QSFP28 |
Max Data Rate: |
103.125Gbps |
Connector: |
Duplex LC |
Wavelength: |
1310nm |
Max Cable Distance: |
80km |
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
QSFP28 |
Max Data Rate: |
103.125Gbps |
Connector: |
Duplex LC |
Wavelength: |
1310nm |
Max Cable Distance: |
80km |

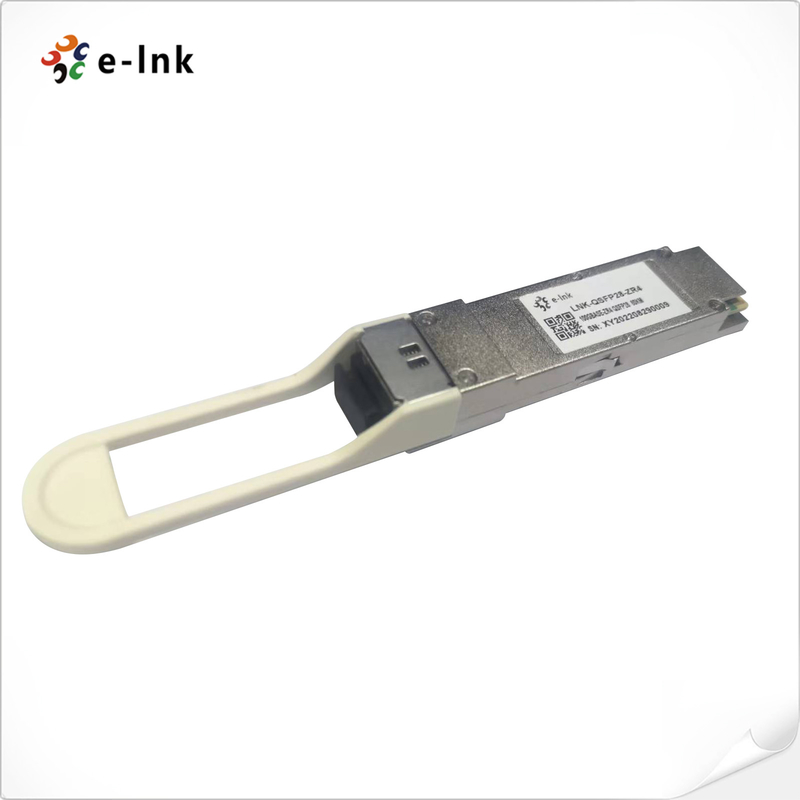

SFP Fiber Transceivers 100GBASE-ZR4 QSFP28 80km DOM Deplex LC SMF
LNK-QSFP28-ZR4 is designed for use in 100GBASE Ethernet throughput up to 80km over single mode fiber (SMF) using a wavelength of 850nm via duplex LC connectors.It is easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet.
SFP Fiber Transceivers Advantages
Compliant with QSFP28 Standard:
High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3bm-2015
100GBASE-ZR4 point-to-point Ethernet links
Rx sensitivity of -28dBm with enabled KR4 FEC in host for up to 80km SMF
Single 3.3V Supply Voltage
LAN WDM EML laser and SOA+PIN Receiver
Universal QSFP28 MSA package with duplex LC connector
Two Wire Serial Interface with Digital Diagnostic Monitoring
Complies with EU Directive 2011/65/EU (RoHS compliant)
Class 1 Laser
SFP Fiber Transceivers Technical Description
Form Factor
QSFP28
Max Data Rate
103.125Gbps
Wavelength
1310nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
2~6.5dBm
Receiver Sensitivity
<-28dBm
Powerbudget
31dB
Receiver Overload
2dBm
Power Consumption
≤.6W
Extinction Ratio
>6dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
