Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE
Model Number: LNK-OSFP-400G-LR8-10
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: SFP Fiber Transceivers
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 500PCS/Month
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
OSFP |
Connector: |
Duplex LC |
Wavelength: |
1310nm |
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
OSFP |
Connector: |
Duplex LC |
Wavelength: |
1310nm |

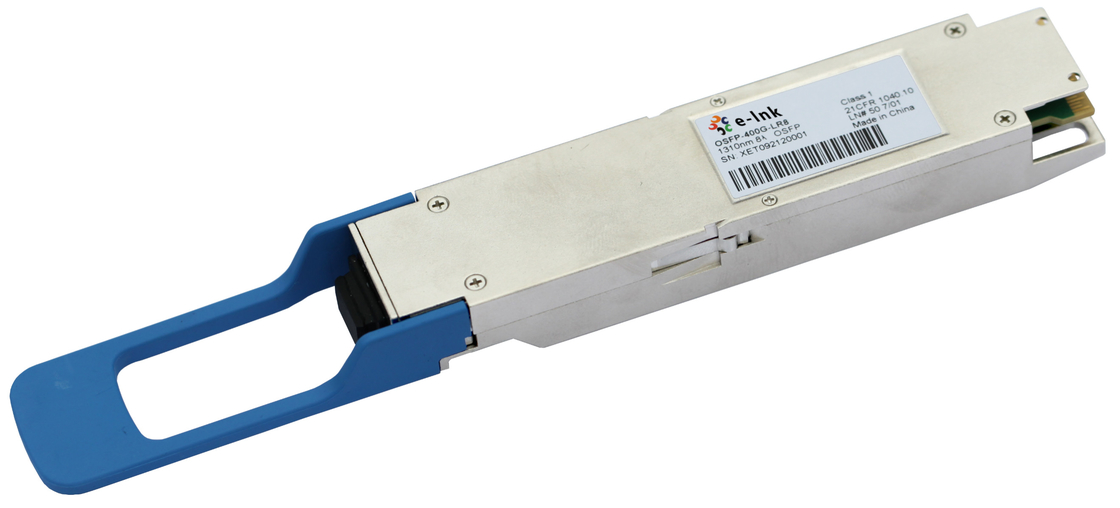

SFP Fiber Transceivers 400GBASE-LR8 OSFP-DD 10km DOM Deplex LC SMF
LNK-OSFP-400G-LR8-10 module supports link lengths of up to 10km over a standard pair of G.652 single mode fiber (SMF) with duplex LC connectors. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.
SFP Fiber Transceivers Advantages
Compliant with IEEE 802.3bs standard:
- 400GBASE-LR8 optical interface
- 400GAUI-8 electrical interface
Compliant with OSFP MSA HW Rev 2.0 with duplex LC connector
Compliant with CMIS Rev 4.0
Case operating temperature 0°C to 70°C
Two wire serial Interface with digital diagnostic monitoring
Complies with EU Directive 2011/65/EU (RoHS compliant)
Class 1 Laser
SFP Fiber Transceivers Technical Description
Form Factor
OSFP
Max Data Rate
400Gbps
Wavelength
1310nm
Max Cable Distance
10km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-2.8~5.3dBm
Receiver Sensitivity
<-9.1dBm
Powerbudget
6.3dB
Receiver Overload
5.3dBm
Power Consumption
≤14W
Extinction Ratio
3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
