Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE
Model Number: LNK-QDD-400G-DR4-05
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: SFP Fiber Transceivers
Delivery Time: 5-15working days
Payment Terms: L/C,T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 500PCS/Month
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
QSFP-DD |
Max Data Rate: |
400Gbps |
Connector: |
MTP/MPO-12 |
Wavelength: |
1310nm |
Max Cable Distance: |
500km |
Keyword: |
SFP Fiber Transceivers |
Form Factor: |
QSFP-DD |
Max Data Rate: |
400Gbps |
Connector: |
MTP/MPO-12 |
Wavelength: |
1310nm |
Max Cable Distance: |
500km |

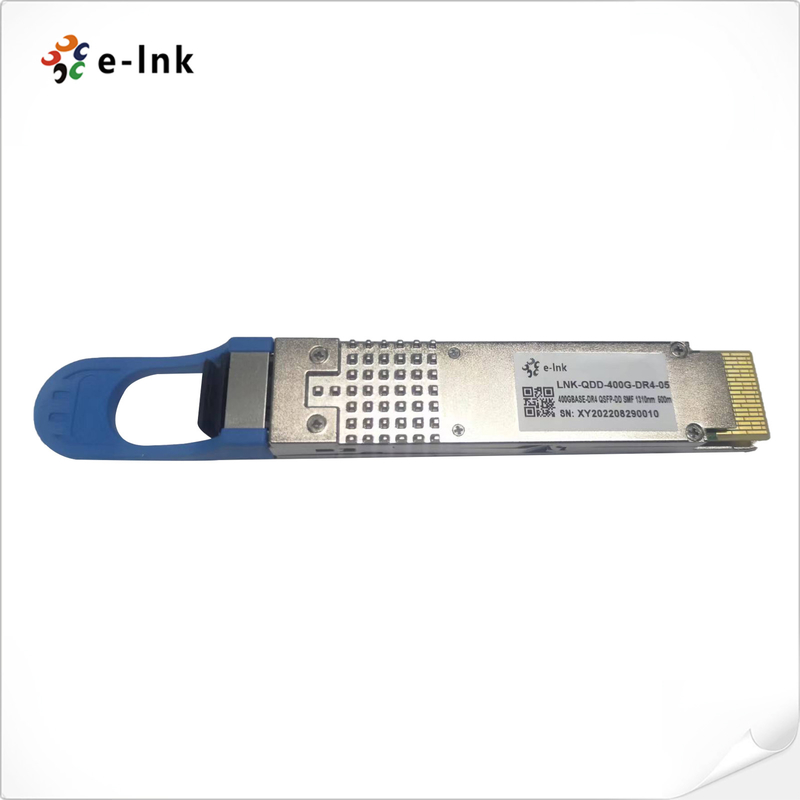

SFP Fiber Transceivers 400G DR4 QSFP-DD 500m DOM MTP/MPO-12 SMF
LNK-QDD-400G-DR4-05 module supports link lengths of up to 500m SMF with MTP/MPO-12 connector. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP28-DR-100G.
SFP Fiber Transceivers Advantages
SFP Fiber Transceivers Technical Description
Form Factor
QSFP-DD
Max Data Rate
400Gbps
Wavelength
1310nm
Max Cable Distance
500m
Connector
MTP/MPO-12
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-2.9~4.0dBm
Receiver Sensitivity
<-5.9dBm
Powerbudget
3dB
Receiver Overload
4dBm
Power Consumption
≤10W
Extinction Ratio
3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
