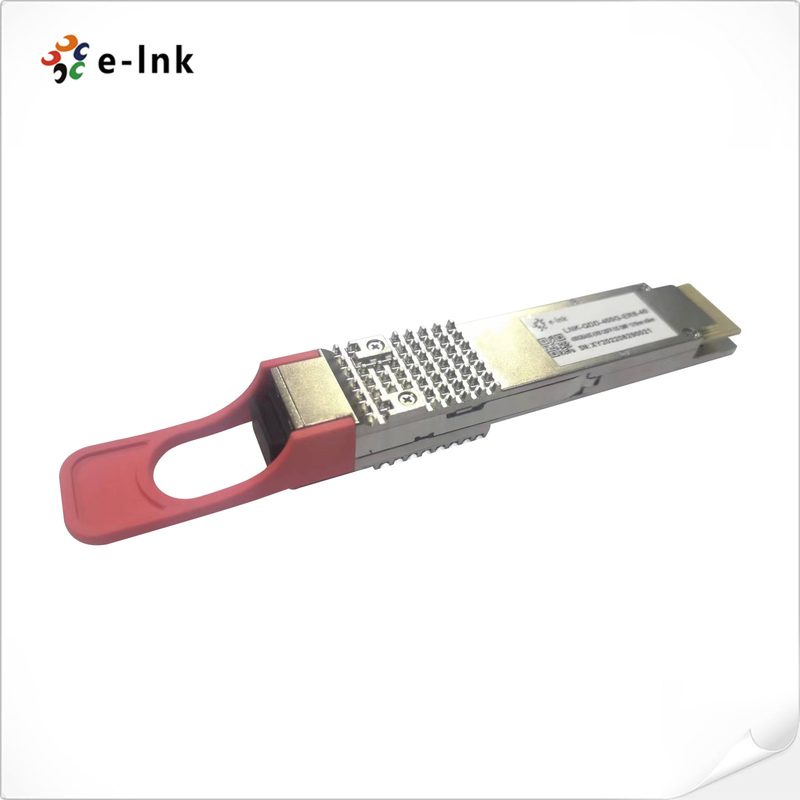

400GBASE-ER8 SFP Fiber Transceivers QSFP-DD 40km DOM Duplex LC SMF

Product Details

Place of Origin: China

Brand Name: E-link

Certification: RoHS,CE

Model Number: LNK-QDD-400G-ER8-40

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: To be negotiated

Packaging Details: SFP Fiber Transceivers

Delivery Time: 5-15working days

Payment Terms: L/C,T/T, Western Union, MoneyGram,Credit Card

Supply Ability: 500PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

400G ER8 SFP Fiber Transceivers

,

QSFP-DD SFP Fiber Transceivers

,

40km sfp lc transceiver

Keyword:
SFP Fiber Transceivers
Form Factor:
QSFP-DD
Max Data Rate:
400Gbps
Connector:
Duplex LC
Wavelength:
1310nm
Max Cable Distance:
40km
Keyword:
SFP Fiber Transceivers
Form Factor:
QSFP-DD
Max Data Rate:
400Gbps
Connector:
Duplex LC
Wavelength:
1310nm
Max Cable Distance:
40km
Description
400GBASE-ER8 SFP Fiber Transceivers QSFP-DD 40km DOM Duplex LC SMF

SFP Fiber Transceivers 400GBASE-ER8 QSFP-DD 40km DOM Duplex LC SMF

SFP Fiber Transceivers Overview

LNK-QDD-400G-ER8-40 module supports link lengths of up to 40km over a standard pair of G.652 single mode fiber (SMF) with duplex LC connectors. It is compliant to IEEE 802.3cn protocol and 400GAUI-8, QSFP-DD HW Rev 5.0 and QSFP-DD CMIS Rev 4.0 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.

SFP Fiber Transceivers Advantages

  • Compliant with IEEE802.3bs standard:
  • - 400GAUI-8 electrical interface

  • Compliant with IEEE 802.3cu standards:
  • - 4x 100GBASE-FR1 optical interface

  • Compliant with QSFP-DD MSA HW Rev 5.1
    Type 2 housing with MPO-12 connector
  • Compliant with QSFP-DD CMIS Rev 4.0
  • Class 1 Laser



SFP Fiber Transceivers Technical Description

Form Factor

QSFP-DD

Max Data Rate

400Gbps

Wavelength

1310nm

Max Cable Distance

10km

Connector

Duplex LC

Media

SMF

Transmitter Type

EML

Receiver Type

APD

TX Power

-0.6~5.6dBm

Receiver Sensitivity

<-16.1dBm

Powerbudget

15.5dB

Receiver Overload

-3.4dBm

Power Consumption

14W

Extinction Ratio

6dB

DDM/DOM

Supported

Commercial Temperature Range

0 to 70°C (32 to 158°F)
