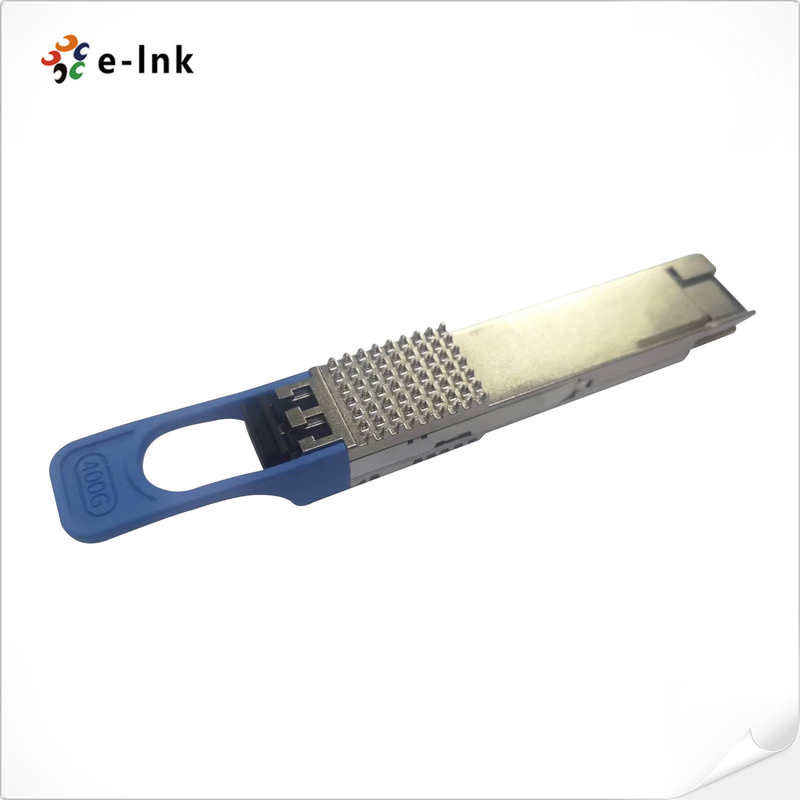

400GBASE-LR8 SFP Fiber Transceivers QSFP-DD 10km DOM Duplex LC SMF

Product Details

Place of Origin: China

Brand Name: E-link

Certification: RoHS,CE

Model Number: LNK-QDD-400G-LR8-10

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: To be negotiated

Packaging Details: SFP Fiber Transceivers

Delivery Time: 5-15working days

Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card

Supply Ability: 500PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

400G LR8 SFP Fiber Transceivers

,

SMF optical fiber transceiver

,

Duplex LC optical fiber transceiver

Keyword:
SFP Fiber Transceivers
Form Factor:
OSFP
Max Data Rate:
400Gbps
Max Cable Distance:
10km
Keyword:
SFP Fiber Transceivers
Form Factor:
OSFP
Max Data Rate:
400Gbps
Max Cable Distance:
10km
Description
400GBASE-LR8 SFP Fiber Transceivers QSFP-DD 10km DOM Duplex LC SMF

SFP Fiber Transceivers 400GBASE-LR8 QSFP-DD 10km DOM Duplex LC SMF

SFP Fiber Transceivers Overview

LNK-QDD-400G-LR8-10 module supports link lengths of up to 10km over a standard pair of G.652 single mode fiber (SMF) with duplex LC connectors. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.

SFP Fiber Transceivers Advantages

  • Compliant with IEEE 802.3bs standard:
    - 400GBASE-LR8 optical interface
    - 400GAUI-8 electrical interface
  • Compliant with QSFP-DD MSA HW Rev 5.0 with duplex LC connector
  • Compliant with QSFP-DD CMIS Rev 4.0
  • Case operating temperature 0°C to 70°C
  • Two wire serial Interface with digital diagnostic monitoring
  • Complies with EU Directive 2011/65/EU (RoHS compliant)
  • Class 1 Laser

SFP Fiber Transceivers Technical Description

Form Factor

QSFP

Max Data Rate

400Gbps

Wavelength

1310nm

Max Cable Distance

10km

Connector

Duplex LC

Media

SMF

Transmitter Type

EML

Receiver Type

PIN

TX Power

-2.8~5.3dBm

Receiver Sensitivity

<-9.1dBm

Powerbudget

6.3dB

Receiver Overload

5.3dBm

Power Consumption

14W

Extinction Ratio

3.5dB

DDM/DOM

Supported

Commercial Temperature Range

0 to 70°C (32 to 158°F)
