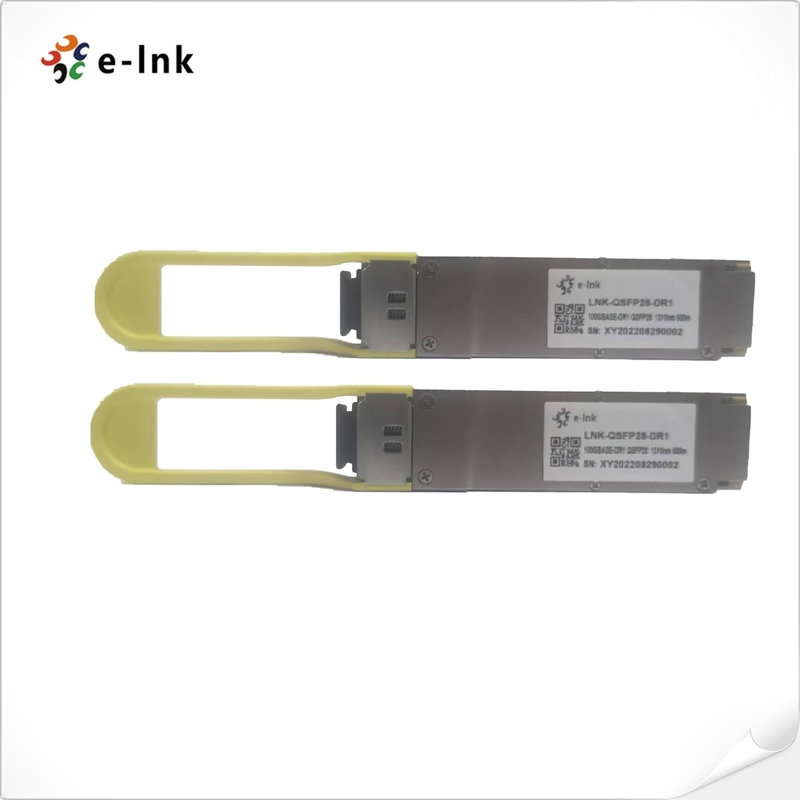

100GBASE-DR1 Ethernet SFP Transceiver 100G QSFP28 Transceiver Duplex LC 1310nm 500m

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-QSFP28-DR1

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: SFP Fiber Transceivers Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

DR1 Ethernet SFP transceiver

,

Ethernet SFP transceiver 500m

,

Duplex LC 100G QSFP28 Transceiver

Keyword:
Ethernet SFP Transceiver
Data Rate:
100GE
Fiber Type:
Single Mode Duplex LC
Transmission Distance:
500M
Wavelength:
1310nm
Operating Temperature:
0°C ~ 70°C
Keyword:
Ethernet SFP Transceiver
Data Rate:
100GE
Fiber Type:
Single Mode Duplex LC
Transmission Distance:
500M
Wavelength:
1310nm
Operating Temperature:
0°C ~ 70°C
Description
100GBASE-DR1 Ethernet SFP Transceiver 100G QSFP28 Transceiver Duplex LC 1310nm 500m

QSFP28 Optical Module 100GBASE-DR1 1310nm 500m Transceiver Duplex LC
100G QSFP Transceiver Advantages

► Compliant with QSFP28 Standard: SFF-8636 Rev 2.10a
► High speed I/O electrical interface (CAUI-4)
► QSFP28 MSA package with duplex LC connector
► Two Wire Serial Interface with Digital Diagnostic Monitoring
► KP4 FEC termination inside module

Transmitter Optical Specifications

Parameter Symbol Min. Typical Max. Unit Notes
Wavelength λC 1304.5 1311 1317.5 nm
Side mode suppression ratio SMSR 30 - - dB
Average Optical Launch Power POUT -2.9 - 4 dBm 1
Average launch power of OFF transmitter POUT_OFF - - -15 dBm
Extinction Ratio ER 3.5 - - dB
Outer Optical Modulation Amplitude (OMAouter) OMAouter -0.8 - 4.2 dBm
Launch power in OMAouter minus



OMAouter- TDECQ



TDECQ:

for extinction ratio ≥ 5 dB



-2.2

- - dBm
for extinction ratio < 5 dB -1.9
Transmitter and dispersion eye closure TDECQ - - 3.4 dB
TDECQ – 10log10(Ceq) CEQ - - 3.4 dB
RIN15.5OMA RIN - - -136 dB/Hz
Optical return loss tolerance ORLT - - 15.5 dB
Transmitter transition time   - - 17 ps
Transmitter reflectance TR - - -26 dB

Receiver Optical Specifications

Parameter Symbol Min. Typical Max. Unit Notes
Wavelength λC 1304.5 1311 1317.5 nm
Damage Threshold   5 - - dBm
Average receive power   -5.9 - 4 dBm 1
Receive power (OMAouter) RP - - 4.2 dBm
Receiver reflectance RR - - -26 dB
Receiver sensitivity (OMAouter) RS - - Max(-3.9, SECQ-5.3) dBm
Stressed receiver sensitivity SRS - - -1.9 dBm 2
Stressed Receiver Sensitivity Test Conditions: - -   -

100GBASE-DR1 Ethernet SFP Transceiver 100G QSFP28 Transceiver Duplex LC 1310nm 500m 0

100GBASE-DR1 Ethernet SFP Transceiver 100G QSFP28 Transceiver Duplex LC 1310nm 500m 1

Ordering Information

Part Number Application Data Rate Laser Source Fiber Type
LNK-QSFP28-DR1 100GBASE-DR 100GE (53.125 GBd) 1311nm EML SMF
