Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-QSFP-CSR4
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: SFP Fiber Transceivers Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Optical Transceiver Module |
Data Rate: |
40GB Ethernet |
Connector: |
MTP MPO Connector |
Wavelength: |
850nm |
Transmission Distance: |
300m (OM3); 400m (OM4) |
Support: |
Digital Diagnostic Monitoring |
Keyword: |
Optical Transceiver Module |
Data Rate: |
40GB Ethernet |
Connector: |
MTP MPO Connector |
Wavelength: |
850nm |
Transmission Distance: |
300m (OM3); 400m (OM4) |
Support: |
Digital Diagnostic Monitoring |

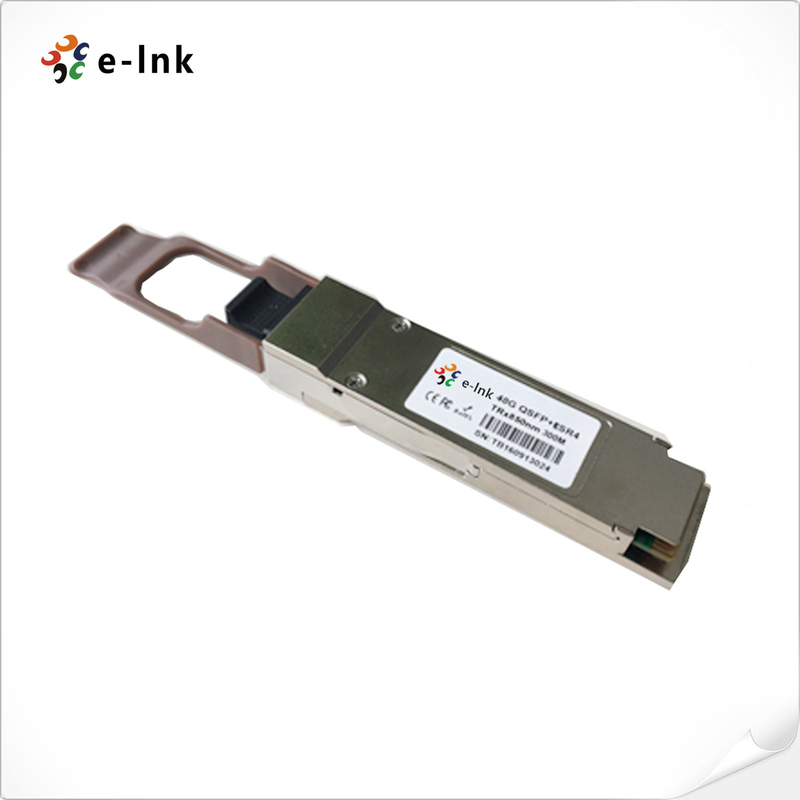

QSFP Fiber Transceiver 40G Multimode 850nm MTP MPO Connector 300M
40G QSFP+ Transceiver Advantages
► 4 independent full-duplex channels
► TX input and RX output CDR retiming
► CML compatible electrical I/O
► MTP/MPO optical connector
► Built-in digital diagnostic functions
Technical Indexes
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
| Data Rate per Channel | - | 10.3125 | 11.2 | Gbps | ||
| Power Consumption | - | 2.5 | 3.5 | W | ||
| Supply Current | Icc | 0.75 | 1.0 | A | ||
| Control I/O Voltage-High | VIH | 2.0 | Vcc | V | ||
| Control I/O Voltage-Low | VIL | 0 | 0.7 | V | ||
| Inter-Channel Skew | TSK | 150 | Ps | |||
| RESETL Duration | 10 | Us | ||||
| RESETL De-assert time | 100 | ms | ||||
| Power On Time | 100 | ms | ||||
| Transmitter | ||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | 1 | ||
| Common mode Voltage Tolerance | 15 | mV | ||||
| Transmit Input Diff Voltage | VI | 120 | 1200 | mV | ||
| Transmit Input Diff Impedance | ZIN | 80 | 100 | 120 | ||
| Data Dependent Input Jitter | DDJ | 0.1 | UI | |||
| Data Input Total Jitter | TJ | 0.28 | UI | |||
| Receiver | ||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | |||
| Rx Output Diff Voltage | Vo | 600 | 800 | mV | ||
| Rx Output Rise and Fall Voltage | Tr/Tf | 35 | ps | 1 | ||
| Total Jitter | TJ | 0.7 | UI | |||
| Deterministic Jitter | DJ | 0.42 | UI | |||
Overview
The LNK-QSFP-CSR4 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Ordering Information
| Part Number | Description |
| LNK-QSFP-CSR4 | 40G QSFP+ 850nm 300m CSR4 MPO |
