Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-H8
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Video Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Model: |
LNK-H8 |
Output: |
1-Chanel HDMI Input, 1-Chanel 3.5 Audio Input |
Video: |
1-Chanel IP Signal Output |
Dimension: |
102mm X 70mm X 44mm |
Model: |
LNK-H8 |
Output: |
1-Chanel HDMI Input, 1-Chanel 3.5 Audio Input |
Video: |
1-Chanel IP Signal Output |
Dimension: |
102mm X 70mm X 44mm |

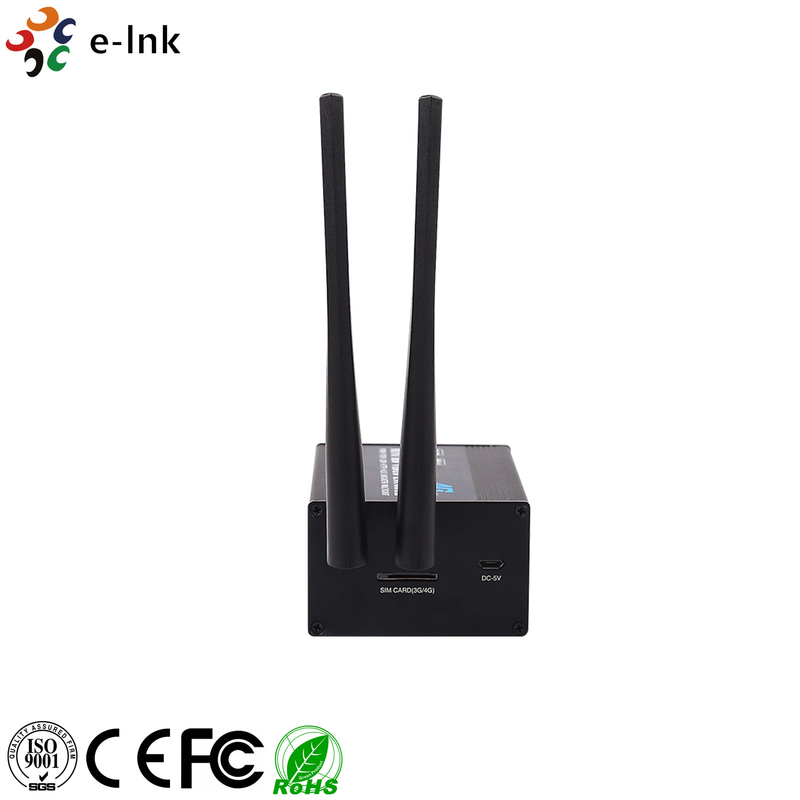

10W HDMI Fiber Extender H.265 Video Encoder With 10000MAH Battery
H.265 HDMI Video Encoder
H.265 HDMI Video Encoder Advantages
· Support 3G/4G/WIFI/cable network optional
· The shoe base is fixed to the camera
· Support 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i solutions (customized)
· Support HDMI input,H.265 latest architecture
· Support more units in one computer to work.
· Supports WINDOWS and LINUX etc
· Support multiple devices display on a computer at the same time
· Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords)
· Support Main TS stream and the sub TS stream use in different network protocols for transmission ,H264/H265
· Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )
· Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
· Video packaging: A mode: FFMPEG, B mode: VLC
· Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
· Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
· Video packaging: A mode: FFMPEG, B mode: VLC
· Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
· Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
· Support OSD in Chinese/ English, support OSD rolling, images superimposing, Support adding LOGO ,Characters and symbols;
· Adjustable coordinates: 1920x1080; The font size resolution: 8 to 72.
· Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
· Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
· Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
· Support coding without video signal;
· Complete the setting effect immediately, don’t need to restart
· Support one-key recovery of the default configuration
· Support STB decoding
· The low power consumption design
· Battery power supply,can use 5-6 hours
Technical Indexes
| Model |
LNK-H8 2/3/4G++WIFI +Lithium battery HDMI encoder
|
|
| Output | 1-Chanel HDMI input, 1-Chanel 3.5 audio input | |
| Video | 1-Chanel IP signal output | |
| Audio | Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc |
| Coding standard | H.265 / H.264 | |
| Coding level |
H.265 main profile H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
|
|
Encoded size |
640*360~1920*1080(can be customized) | |
| Video bit rate | CBR/VBR: 16KBIT/S~12MBIT/S | |
| Video frame rate | 30/60 | |
| OSD | Text& image | |
|
IP Output |
Input selection | 1-Channel SDI built-in audio function,1-Chanel 3.5 independent (support audio gain) |
| Audio coding | AAC/MP3/G711 | |
| Audio bit rate | 64Kb/s~384Kb/s | |
| Sampling rate | 32000, 44100, 48000 etc | |
| System | 1 RJ45 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol | |
| Network protocol | Supports HLS, HTTP, RTSP, RTMP, UDP, HLS Unicast, multicast | |
| Configuration management | Supports IE configuration, remote upgrade | |
| Power supply | 5V~2.4A | |
| power consumption | 10W | |
| Size | 102mm x 70mm x 44mm | |
| Operating temperature | -20℃+ 60℃ | |
| Working humidity | <90%, Non-condensing | |
| Weight | 0.4KG | |
| LTE | 3G/4G(selectable) | |
| Battery | 10000MAH | |
| Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check | ||
Overview
LNK-H8 series 3G & 4 G& WIF I& Lithium battery HDMI Encoder, supports push-flow status lamp, supports 1-channel HDMI input, 1 channel 3.5MM independent audio input, dual streaming H.265/ H.264 encoded output, MP3, AAC output. Bitrate and display definition could be freely adjusted according to the need. Supports HTTP/RTSP/RTMP/UDP/ONVIF/HLS protocols. It is easy to handle, just manually switch WiFi or 4G mode while other settings set up automatically.
