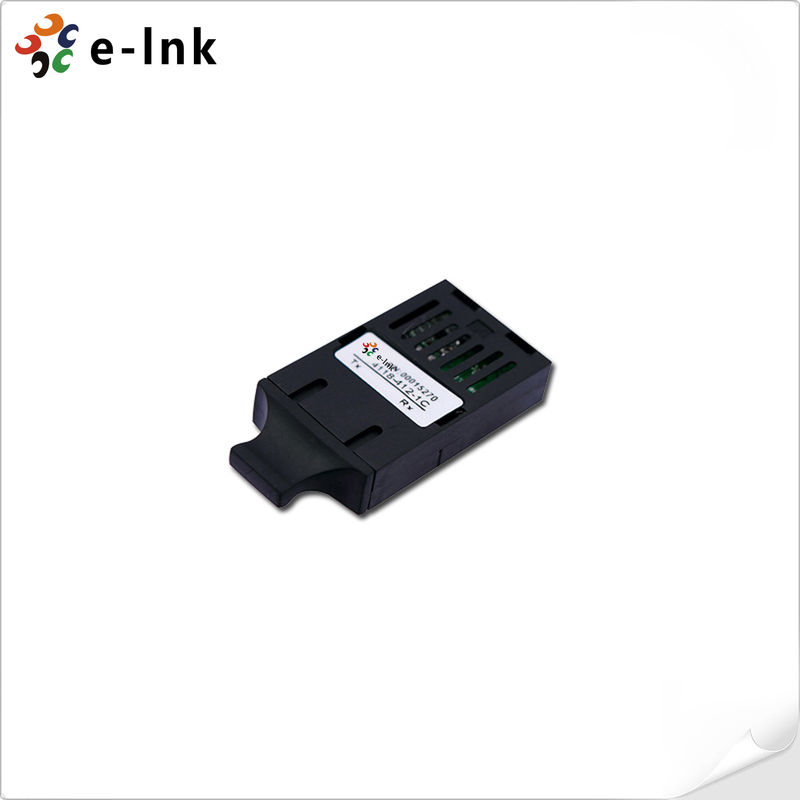

155M Single Fiber BIDI 1x9 Optical Transceiver

Name: 155M Single Fiber BIDI 1x9 Optical Transceiver
Brand: E-link China Technology Co.,LTD
SKU: LNK-BD9-155T3R5
Price: 1,292.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: RoHS,CE

Model Number: LNK-BD9-155T3R5

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $5-2579

Packaging Details: SFP Fiber Transceivers

Delivery Time: 5-15working days

Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card

Supply Ability: 500PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Single Fiber BIDI Optical Transceiver, 155M BIDI Optical Transceiver, 1x9 BIDI Optical Transceiver


Storage Temperature:	-40，85℃	Operating Temperature:	0，70℃
Supply Voltage:	0，3.6V	Data Rate:	155Mb/s

Storage Temperature:	-40，85℃
Operating Temperature:	0，70℃
Supply Voltage:	0，3.6V
Data Rate:	155Mb/s

Description

155M Single Fiber BIDI 1x9 Optical Transceiver

155M Single Fiber BIDI 1x9 Optical Transceiver

Description

The 1×9 transceiver supports 155Mbps and 20km transmission distance with SMF.

The transceiver consists of two sections: The transmitter section incorporates a FP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).

SFP Fiber Transceivers Advantages

1×9 package with SC connector
1310nm FP TX/1550nm PIN RX and
1550nm FP TX/1310nm PIN RX
20Km transmission with SMF
+3.3V single power supply
LVPECL compatible data input/output interface
Low EMI and excellent ESD protection
laser safety standard IEC-60825 compliant
Compatible with RoHS

Performance specifications

Parameter		Symbol	Min.	Typ.	Max.	unit
Data rate				155		Mb/s
Wavelength	1550 Rx	l	1500	1550	1600	nm
Wavelength	1310 Rx	l	1260	1310	1360	nm
Maximum Input Power		P_max	-3	-	-	dBm
Receiver Sensitivity		P_min	-		-34	dBm
Output differential impendence		Zdiff		100		Ohm
LOSS Thresholds		LOSS_D	-	-	-34	dBm
LOSS Thresholds		LOSS_A	-45
