Fiber Ethernet Media Converter 2xRS232/422/485 To Ethernet Server System
Industrial 2xRS232/422/485 to Ethernet Server System
Fiber Media Converter Advantages
► Remote industrial rail devices provide Console (RS232) management interface, easy to install;
► The device supports 2 serial RS232 / 422/485 serial port IP + port data, with 2 Fast Ethernet and 1 Fast Ethernet, Ethernet switch chip + FPGA solution with remote OAM management frame function;
► 4U card equipment with 8 Fast optical Ethernet and 1 Gigabit Ethernet support SNMP network management, you can manage the remote serial server, SNMP network management can view and set the local and peer device status and parameters, and You can set the Ethernet bandwidth between the local end and the remote end.
Specifications
| Fiber optical interface | |
| Working wavelength | 1310nm, 1490nm, 1550nm |
| Rate | 100M, full duplex or half-duplex mode |
| Protocol | Supports IEEE 802.3, IEEE 802.1Q (VLAN) |
| MAC Address Table | You can learn 4096 MAC addresses |
| Physical Interface | FC / SC / ST / LC |
| Transmission distance | The distance over which the fiber is transported is limited by the loss of the optical path and the additional loss due to the connection terminals, connectors, patch panels. The transmission distance may also be limited by the bandwidth of the optical fiber. |
| 10/100M Ethernet interface | |
| Protocol | Complies with IEEE 802.3, IEEE802.1Q (VLAN) |
| Rate | 10 / 100M adaptive, full / half duplex fully adaptive MAC |
| Address Table | You can learn 8K MAC address |
| Physical interface | RJ45 port, support Auto-MDIX (cross / straight line adaptive) |
| RS232/422/485 Interface | |
| Rate | 0-115200Kbps |
|
Interface characteristics |
EIA RS232 RS422 RS485 |
| Connector | Phoenix terminal |
| Working environment | |
| Working temperature | -40°C ~ 80°C |
| Working Humidity | 5%~95 % (no condensation) |
| Storage temperature | -40°C ~ 85°C |
| MTBF | > 100,000 hours |
| Specification & Mechanical | |
| Model | LNK-ISE200 |
| Product Function Description | 2*RS232/422/485 Serial Server |
| Business port description | 2*Fast Ethernet electrical2 interface; |
| 1* Fast Ethernet optical interface, | |
| 2*RS232/422/485 Interface | |
| Power Supply | Dual redundant power inputs DC9-48V/AC9-48V, |
| Power consumption <10W | |
| Overload Protection: Support; reverse polarity protection: Support; redundancy protection: Support | |
| Access Terminal: 4-pin plug-in terminal pitch of 5.08mm | |
| Dimensions (LxWxH) | 133mm×120mm×41mm |
| Casing | IP30 protection, Metal case |
| Installation | 35mm DIN-Rail, Wall Mounting |
| Weight | 750g |
Overview

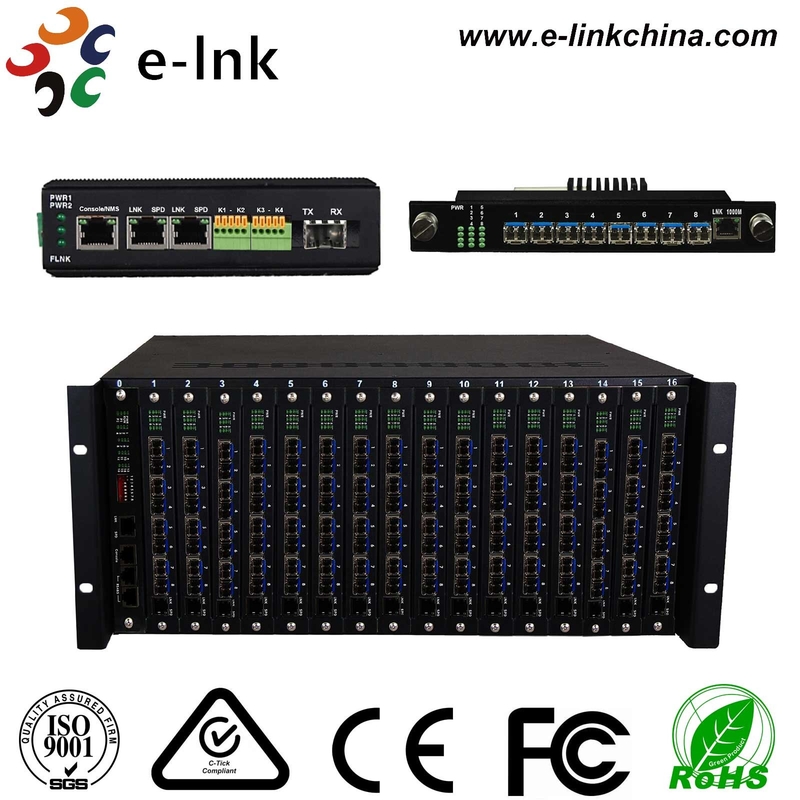

The remote-end equipment of this system is an industrial DIN-Rail type. The 2*RS232/422/485 is encapsulated in IP data packets and sent to 2*Fast Ethernet electrical port and 1*Fast Ethernet optical port. The local end central office equipment of this system is a 4U card chassis that contains 8 Fast Ethernet optical ports and 1 Gigabit Ethernet port. The 2* serial port that will be received from eight optical ports transmits the Gigabit Ethernet to the IP + port.
Order Information
| Item | Description |
| Remote End | |
| LNK-ISE200 | Industrial 2xRS232/422/485 to Ethernet Server: 2xRS232/422/485 port + 2x10/100M Ethernet port + 1x100M SFP port, excl. SFP module, standalone, Support DIN-Rail mounting and Wall mounting installation, 12~36VDC power input, no power supply adapter, Operating Temperature -40°C ~ 80°C |
| Local End | |
| LNK-F8G1 | Card-type 8*100Base-FX+1GE Serial Server: 2x100M SFP port + 1x10/100/1000M Ethernet port, SFP Optical port, not including SFP Module, it can be inserted to the LNK-C4U Chassis |
| LNK-C4U | 4U Chassis for Card-type 8*100Base-FX+1GE Serial Server, support SNMP Management, Dual Power Supply, 16 slot, can insert 16pcs Card-type 8*100Base-FX+1GE Serial Server |
