Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-Convert-Sony
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: 3G-SDI Converter Board Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Product Name: |
Converter Board For 3G-SDI Sony Camera |
Input: |
30pin LVDS Cable RS232 TTL |
Output: |
2x3G/HD-SDI; 1xHDMI |
Video Output HD: |
SD-SDI / HD-SDI / 3G-SDI |
HDMI Video Resolution: |
1920*1200P 60Hz |
Power Supply: |
9~12 V DC |
Product Name: |
Converter Board For 3G-SDI Sony Camera |
Input: |
30pin LVDS Cable RS232 TTL |
Output: |
2x3G/HD-SDI; 1xHDMI |
Video Output HD: |
SD-SDI / HD-SDI / 3G-SDI |
HDMI Video Resolution: |
1920*1200P 60Hz |
Power Supply: |
9~12 V DC |
Converter Board for Sony Camera 3G/HD-SDI and HDMI Output
SONY 3G-SDI Converter Board Advantages
► Automatic cable balancing for all speeds below 3.2 Gb/s (Belden 1694A);
► SDI output automatically relocks 270Mbit/s-1.48Gbit/s-3Gbit/s
► Comply with HDMI1.4B 3D and HDCP1.2 standards
► Board and camera management through RS232/TTL
► Board and camera management through RS485/TTL
Sony Converter Board Technical Indexes
|
Input Analog |
30pin LVDS Cable |
|
Input Digital |
30pin LVDS Cable |
|
Video output HD |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) SMPTE425M3Gb/s Mapping(3G-SDI) SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
HDMI Video |
1080P 50/59.95/60Hz,( Max 1920*1200P 60Hz) 1080P 23.98/24/29.97/30Hz, 720P 23.98/24/29.97/30Hz, |
|
Camera control interface |
RS-232 control |
|
Power Requirements |
9 to 12 V DC |
|
Mass |
30g |
|
Cable |
30pin LVDS Cable |
|

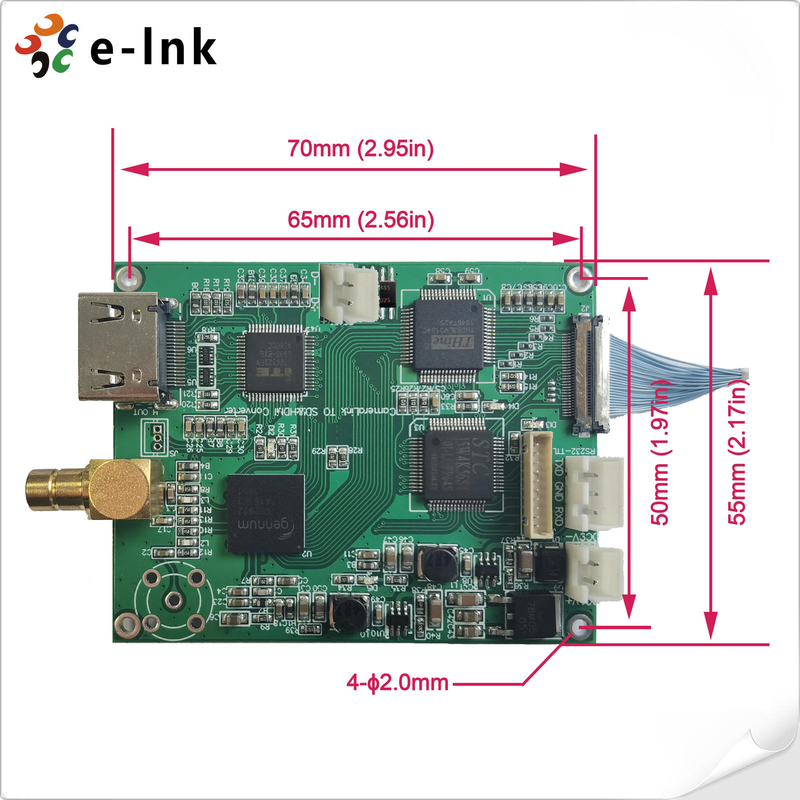

Dimensions (W x H x D) |
70mm x 55mm x 18.5 mm |
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
3G-SDI Converter Board Overview
This SONY HD movement HDMI board is designed for the research and design of SONY FCB HD integrated modules, compatible with SONY FCB-EH3410/FCB-EH3310/FCB-EH3150/FCB-EB-EEH6300/FCB-EH6500/FCB-EV7500/FCB-VV7100/FCB-EV7300/FCB-EV7310/FCB-EV 5300, etc. This control panel has a wide range of applications and can be used for aerial photography, amblyopia, video conferencing, medical equipment, or other professional equipment.
Converter Board for 3G-SDI Sony Camera Ordering Information
|
Model |
Description |
|
LNK-Convert-Sony |
Converter Board for Sony Camera Output 3G-HD-SDI and HDMI:
Input: 30pin LVDS Cable RS232 TTL, RS485, Keyboard, 9-12V DC input;
Output: 2X3G/HD-SDI Output 1XHDMI 1080P 60Hz Output
|
