100G DR1 QSFP28 Transceiver 1310nm 500m Duplex LC Module

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC

Model Number: LNK-QSFP28-DR1

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: Negotiation

Packaging Details: QSFP Fiber Transceiver Standard Export Package

Delivery Time: 3~5 working days

Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay

Supply Ability: 5000 pcs per month

Get Best Price
Contact Now
Specifications
Highlight:

100G DR1 QSFP28 Transceiver

,

1310nm QSFP Fiber Transceivers

,

Duplex LC Module QSFP28 Transceiver

Product Name:
QSFP Fiber Transceivers
Data Rate:
100G
Fiber Type:
Single-Mode
Wavelength:
1310nm
Connector Type:
Duplex LC
Distance:
500 Meters
Product Name:
QSFP Fiber Transceivers
Data Rate:
100G
Fiber Type:
Single-Mode
Wavelength:
1310nm
Connector Type:
Duplex LC
Distance:
500 Meters
Description

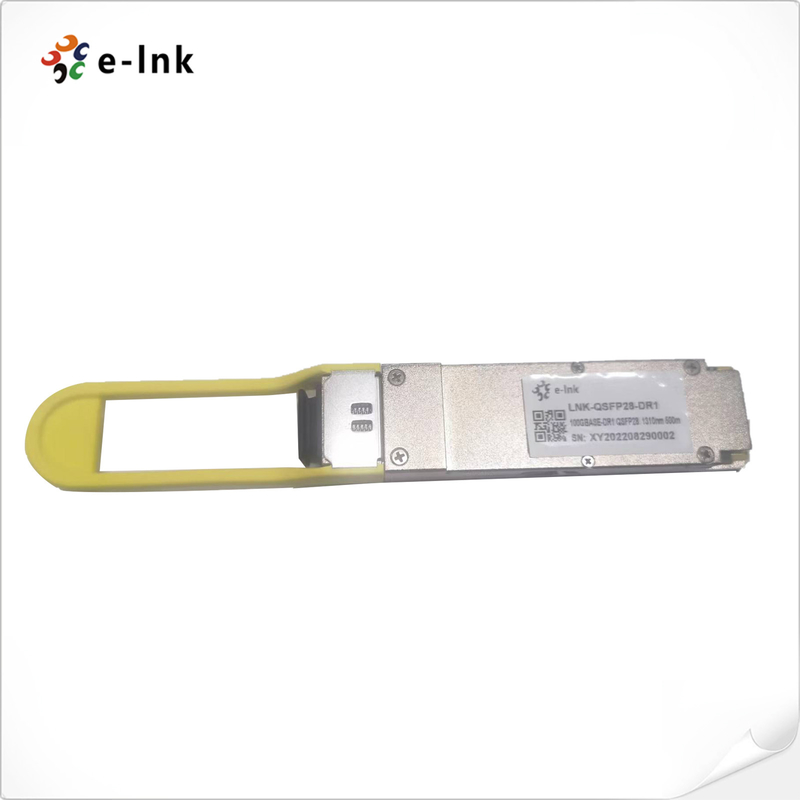

100G DR1 QSFP28 Transceiver 1310nm 500m Duplex LC Module

Product Description:

This product is compliant with the QSFP28 standard, specifically specified in SFF-8636 Rev 2.10a. It also meets the requirements of IEEE802.3cu D3.2 for 100GBASE-DR.
The high speed I/O electrical interface used is CAUI-4, and it operates with a single 3.3V supply voltage. The maximum power consumption is 4W and it has an operating temperature range of 0-70 ºC.
The product utilizes a 1311nm EML laser and PIN receiver, and has a hermetically sealed TO based design. It is packaged in a QSFP28 MSA package with a duplex LC connector.
With a two wire serial interface and digital diagnostic monitoring, this product also has KP4 FEC termination inside the module. It supports a 500m reach of single mode fiber.
Additionally, this product complies with EU Directive 2011/65/EU, making it RoHS compliant. It is classified as a Class 1 Laser Product.
100G DR1 QSFP28 Transceiver 1310nm 500m Duplex LC Module 0


Module Characteristics:

  • Table 1 – Absolute Maximum Ratings



    Parameter Symbol Min. Max. Unit Notes
    Storage Temperature TS -40 +85 ºC
    Supply Voltage VCC -0.3 3.6 V
    Relative Humidity (non-condensing) RH 5 95 %
    Data Input Voltage – Differential lVDIP-VDINl - 1.0 V
    Control Input Voltage VI -0.3 Vcc+0.3 V
    Control Output Current IO -20 20 mA


Table 2 – Recommended Operating Conditions

Parameter Symbol Min. Typical Max. Unit Notes
Operating Case Temperature TOPR 0 - 70 ºC
Power Supply Voltage VCC 3.135 3.3 3.465 V
Instantaneous peak current at hot plug ICC_IP - - 1600 mA
Sustained peak current at hot plug ICC_SP - - 1320 mA
Maximum Power Dissipation PD - - 4 W

Maximum Power Dissipation,

Low Power Mode

PDLP


-


-



1.5


W


Signalling Rate SR - 53.125 - GBd
Control Input Voltage High VIH VCC*0.7 - VCC+0.3 V
Control Input Voltage Low VIL -0.3 - VCC*0.3 V
Two Wire Serial Interface Clock Rate - - - 400 kHz

QSFP28 Module Pad Layout:

100G DR1 QSFP28 Transceiver 1310nm 500m Duplex LC Module 1

Packing and Shipping:

Packaging and Shipping

All QSFP Fiber Transceivers are carefully packaged to ensure safe delivery to our customers.
The transceivers are first placed in anti-static bags to protect them from electrostatic discharge. They are then placed in individual boxes with foam padding to prevent any damage during transportation. These boxes are then placed in a larger shipping box with additional protective material to further ensure the safety of the products.
For shipping, we use trusted carriers such as FedEx, UPS, and DHL to ensure timely and secure delivery. We offer various shipping options including standard, expedited, and overnight shipping to meet our customers' needs.
Each package is labeled with the product name, model number, and serial number for easy identification. We also include a packing slip with the order details for our customers' reference.
At QSFP Fiber Transceivers, we take great care in packaging and shipping our products to provide our customers with the best possible experience.



Ordering Information:

Part No. Application Data Rate Laser Source Fiber Type



LNK-QSFP28-DR1



100GBASE-DR

100GE (53.125 GBd)



1311nm EML



SMF
