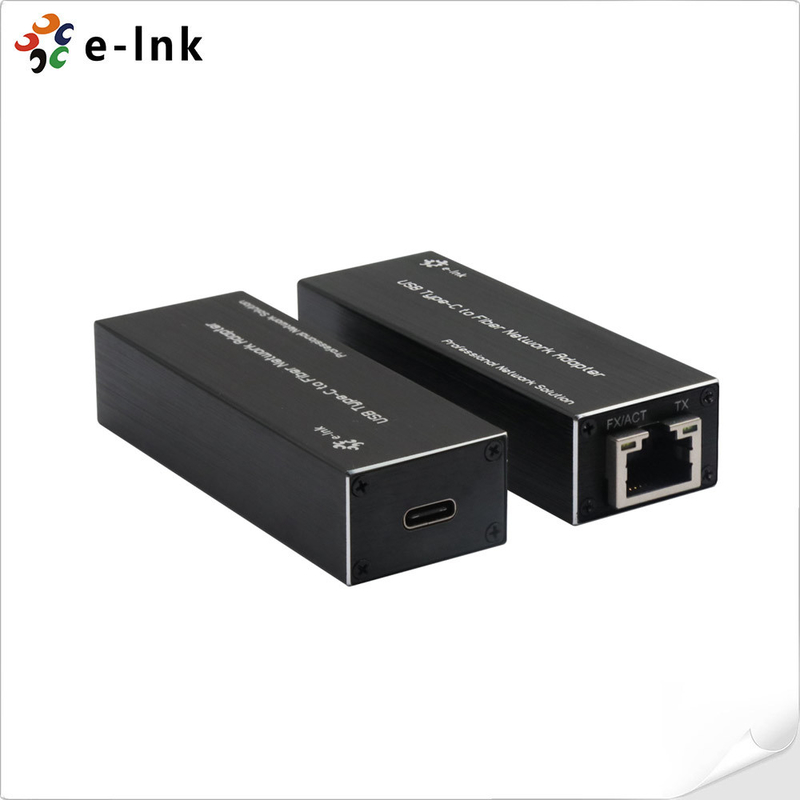

Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter

Name: Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter
Brand: E-link China Technology Co.,LTD
SKU: LNK-TCU1000 Series USB-C Network Interface Card
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-TCU1000 Series USB-C Network Interface Card

Document: E-link LNK-TCU1000 USB 3.0 ....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Weight(1U):	46g	Dimensions (LxWxH)::	78 X 27 X 18 Mm
Operating Temperature::	0°C ~ 60°C (32° ~ 140°F)	Interface:	1 X USB-C 3.0, 1 X RJ-45 10/100/1000Mbps LAN Port
Mounting Options::	Desktop

Weight(1U):	46g
Dimensions (LxWxH)::	78 X 27 X 18 Mm
Operating Temperature::	0°C ~ 60°C (32° ~ 140°F)
Interface:	1 X USB-C 3.0, 1 X RJ-45 10/100/1000Mbps LAN Port
Mounting Options::	Desktop

Description

Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter

Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter

Product Advantages

► 1 x 10/100/1000Mbps RJ45 Slot + 1 x TYPE-C USB3.0 Slot

► Supports Gigabit networking over USB 3.0

► IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible

► Powered directly from the USB ports

► Crossover Detection & Auto-Correction (Auto MDIX)

► IEEE 802.1Q VLAN Tagging support

► Jumbo Frame support

► Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload

► Activity and Link LED indicators

► Compact, lightweight design for maximum portability

Technical Indexes

Specifications
Standards:	IEEE 802.3 10BASE-T
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000BASE-T Gigabit Ethernet
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.1q VLAN tagging
Chipset ID:	Realtek RTL8153B
Network Transfer Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Other:	Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
Interface
USB:	1 x USB-C 3.0
RJ45:	1 x RJ-45 10/100/1000Mbps LAN port
Electrical and Mechanical
Power:	USB Bus Powered
Power Consumption:	5W Max.
LED Indicators:
L/A:	Link/Activity
Dimensions (LxWxH):	78 x 27 x 18 mm
Weight:	46g
Casing:	Aluminum Case
Mounting Options:	Desktop
Environmental
Operating Temperature:	0°C ~ 60°C (32° ~ 140°F)
Relative Humidity:	5% to 90% non-condensing
Regulatory Approvals
ISO9001, CE, FCC, RoHS

Overview

E-link LNK-TCU1000 Series USB-C Network Interface Card designed for Laptop/PC/Tablet that with Type-C interface and need to access Fast and Stable internet through UTP Cable. With this USB-C LAN Card, Network Connection is more stable and quicker than Wifi access. It can offer 1000Mbps Internet access, It provides up to 2000Mbps full-duplex bandwidth capacity. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking for users in a standard-based environment.

Application

Ordering Information

Model	Description
LNK-TCU1000	Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter
Mounting Options	► Desktop
Power Options	► No need for an external power adapter (bus powered)
Package Contents	► USB 3.0 Gigabit Ethernet Adapter x 1
Package Contents	► Quick installation guide x 1
