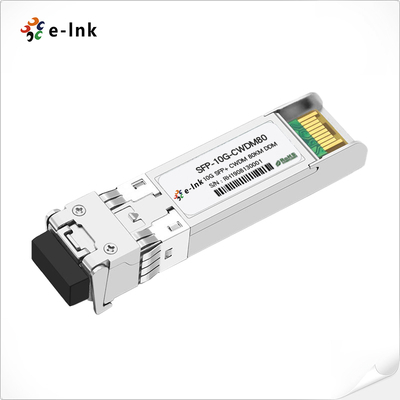

10Gb/s 80km CWDM SFP+ Transceiver
10Gb/s 80km CWDM SFP+ Transceiver

10Gb/s 80km CWDM SFP+ Transceiver

Product Details

Place of Origin: China Brand Name: E-Link

Brand Name: E-Link

Certification: CE, FCC, RoHS

Model Number: LNK-CSFP-10Gxx-80

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: Standard Export Package

Delivery Time: 3-12working Days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/Mouth Get Best Price

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Temperature::
0℃ To 70℃
Warranty::
3 Years
Power Dissipation:
<1.5W
Weight:
0.025Kg
Temperature::
0℃ To 70℃
Warranty::
3 Years
Power Dissipation:
<1.5W
Weight:
0.025Kg
Description
10Gb/s 80km CWDM SFP+ Transceiver
10Gb/s 80km CWDM SFP+ Transceiver

10Gb/s 80km CWDM SFP+ Transceiver

Advantage

Ø Supports 9.95 to 11.3Gb/s bit rates

Ø Hot-Pluggable

Ø Duplex LC connector

Ø 1270～1610nm CWDM DFB transmitter, PIN photo-detector

Ø SMF links up to 10km

Ø Temperature Range: 0~ 70°C

Ø RoHS compliant

Overview

E-LINK's LNK-CSFP-10Gxx-80 is a very compact 10Gb/s optical transceiver module

for serial optical communication applications at 10Gb/s. The LNK-CSFP-10Gxx-40

converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a

10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed

10Gb/s electrical interface is fully compliant with SFI specification.

Technical Indexes

 Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Storage Temperature

TS

-40



+85

°C

Case Operating Temperature

TA

0



70

°C

Maximum Supply Voltage

Vcc

-0.5



4

V

Relative Humidity

RH

0



85

%

Application

Ø 10GBASE-ER/EW Ethernet

Ø Sonet OC-192/SDH

Ø 10G Fibre channel

Ø CWDM Networks
