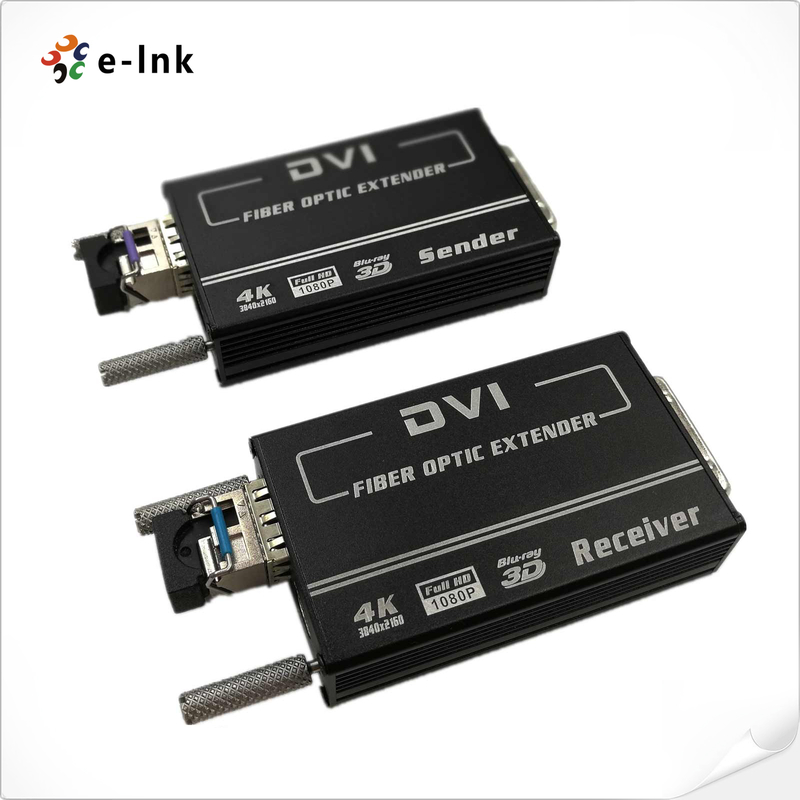

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID

Name: Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID
Brand: E-link China Technology Co.,LTD
SKU: LNK-D4K-SM-S LNK-D4K-SM-R
Price: 395.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-D4K-SM-S LNK-D4K-SM-R

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Transceiver Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Keywords:	Fiber Transceiver	Dimensions (WxDxH):	69mm X 42 Mm X 18.2 Mm
Temperature:	32° To +112° F. (0° To +50° C)	Operating Humidity:	5% To 80% (non-condensing)
The Warranty:	1-year Warranty	Power Consumption:	LNK-D4K-SM-S: 3 Watts LNK-D4K-SM-R: 3.5 Watts

Keywords:	Fiber Transceiver
Dimensions (WxDxH):	69mm X 42 Mm X 18.2 Mm
Temperature:	32° To +112° F. (0° To +50° C)
Operating Humidity:	5% To 80% (non-condensing)
The Warranty:	1-year Warranty
Power Consumption:	LNK-D4K-SM-S: 3 Watts LNK-D4K-SM-R: 3.5 Watts

Description

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID Advantages

► Support DVI 1.0 and HDMI v1.4

► Support learns and stores the display EDID info

► Support resolutions up to 3840x2160/30P

► 7.1 channel LPCM, 192 kHz, 24-bit

► Support 3840*2160/60P(YUV 420)

► Plug and Play ,Built-in EQ(Receiver)

► Support 4K/30P@ Single-Link

► One fiber,One-way

► Bandwidth up to 10.2 Gbps

► Up to 80Km distance by Single-Mode Fiber

► Does not support the HDCP and CEC

► Low RFI / EMI

► Support 3D TV pass-through

► Surface-mountable

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID Overview

E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.

The LNK-D4K-SM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 80km (default 1.4km).

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID Technical Indexes

Parameter	Specifications
Compliance	DVI1.0,HDMI v1.4
Bandwith	10.2 Gbps
Supported Resolutions	3840x2160/30P,38402160/60P(YUV 420), 40962160/60P(YUV 420)
Digital Audio Support	7.1 channel LPCM, 192 kHz, 24-bit audio capability
Connections
DVI Input / DVI Output	1x DVI-D 18+1 Male connector
Optical	1x SFP+ port
Cable
Fiber Cable	9/125μ Single-Mode Fiber:≤80Km(default 1.4km)
DDC Support
EDID Support	An EDID memory built into the Tx module can learn and store the display EDID info.
HDCP Pass-through Support	Does not support the HDCP and CEC
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H)	69mm x 42 mm x 18.2 mm
Net Weight	LNK-D4K-SM-S: 100 g LNK-D4K-SM-R: 100 g

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID Ordering information

Model	Description
LNK-D4K-SM-S	Mini 4KX2K DVI Fiber Sender Manual EDID,DC5V1A
LNK-D4K-SM-R	Mini 4KX2K DVI Fiber Receiver Manual EDID,DC5V1A

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID 0
