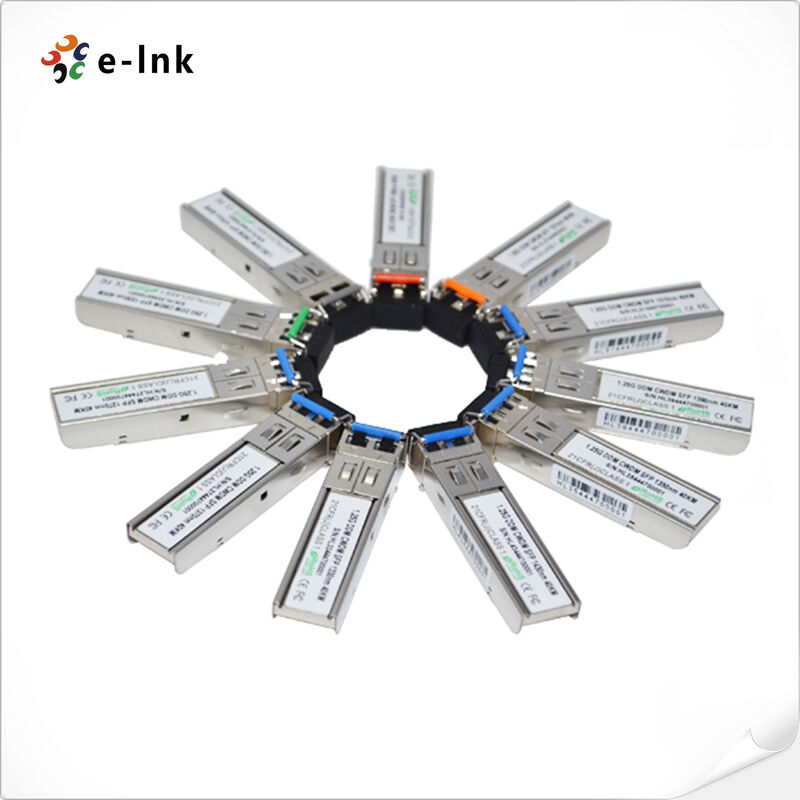

3G-SDI CWDM SFP Optical Transceiver 1270-1610nm 60km MSA Compliant

Model: LNK-CWDM-SFP3G-XX60

 Product Description & Overview

The 3G-SDI CWDM 1270~1610nm 60km Digital Video SFP Optical Transceiver (MSA) represents a

cutting-edge solution for extended-range professional video transmission, delivering exceptional

performance across unprecedented distances. This high-performance MSA-compliant optical transceiver

supports the complete 18-wavelength CWDM spectrum from 1270nm to 1610nm, enabling efficient

bandwidth multiplication over existing single-mode fiber infrastructure. Engineered for robust operation

across data rates from 50Mbps to 2.97Gbps, the module maintains superior signal integrity when processing

complex SDI pathological patterns, ensuring reliable performance for SMPTE 259M, SMPTE 344M, SMPTE

292M, and SMPTE 424M compliant video signals in demanding broadcast environments.

Featuring advanced optical technology, this digital video SFP transceiver achieves exceptional transmission

distances up to 60 kilometers while maintaining full 3Gbps signal quality, representing a significant advancement

in long-distance video connectivity. The hot-pluggable SFP form factor ensures seamless integration with broadcast

routers, video extenders, and media conversion equipment, while the precision-tuned DFB transmitter technology

provides stable wavelength performance across varying environmental conditions. The integrated digital diagnostics

monitoring through I2C interface enables real-time performance tracking and proactive maintenance capabilities,

essential for mission-critical broadcast operations.

Certified as Class I Laser products compliant with FDA/CDRH and IEC-60825 safety standards, this optical transceiver

guarantees safe operation without requiring special protective measures. The extended 60km reach makes it particularly

suitable for metropolitan-area video networks, distributed campus broadcasting systems, and large-scale event production

requiring long-haul signal transmission. This solution empowers broadcasters and system integrators to maximize existing

fiber infrastructure while achieving broadcast-grade video quality across extended distances, establishing new benchmarks

for cost-effective, high-performance video transport in next-generation broadcast and professional AV applications.

Key Features Bullets

• Professional Video Standards Compliance
  Fully compatible with SMPTE 297-2006 specifications for broadcast-grade video transmission

• Wide Bandwidth Operation Range
  Supports data rates from 50 Mbps to 2.97 Gbps across SD-SDI, HD-SDI and 3G-SDI standards

• Extended Distance Transmission
  Achieves reliable video transmission up to 60km over single-mode fiber at 3G-SDI rates

• Comprehensive Signal Integrity
  Maintains robust performance with pathological pattern support for all major SDI formats

• Multi-Wavelength CWDM Technology
  18-wavelength DFB transmitter covering full 1270nm to 1610nm CWDM spectrum

• Hot-Swappable Installation
  Standard SFP form factor enables seamless hot-pluggable operation and maintenance

• Industry Standard Interoperability
  Fully compliant with SFP MSA specifications for universal compatibility

• Real-Time Performance Monitoring
  Digital diagnostic functions via I2C interface for comprehensive system management

• Efficient Power Management
  Single +3.3V power supply with optimized low power consumption design

• Extended Thermal Operation
  Wide operating case temperature range from 0°C to +70°C ensures stable performance

• Environmental Safety Compliance
  Meets OHS requirements and lead-free manufacturing standards for safe deployment
