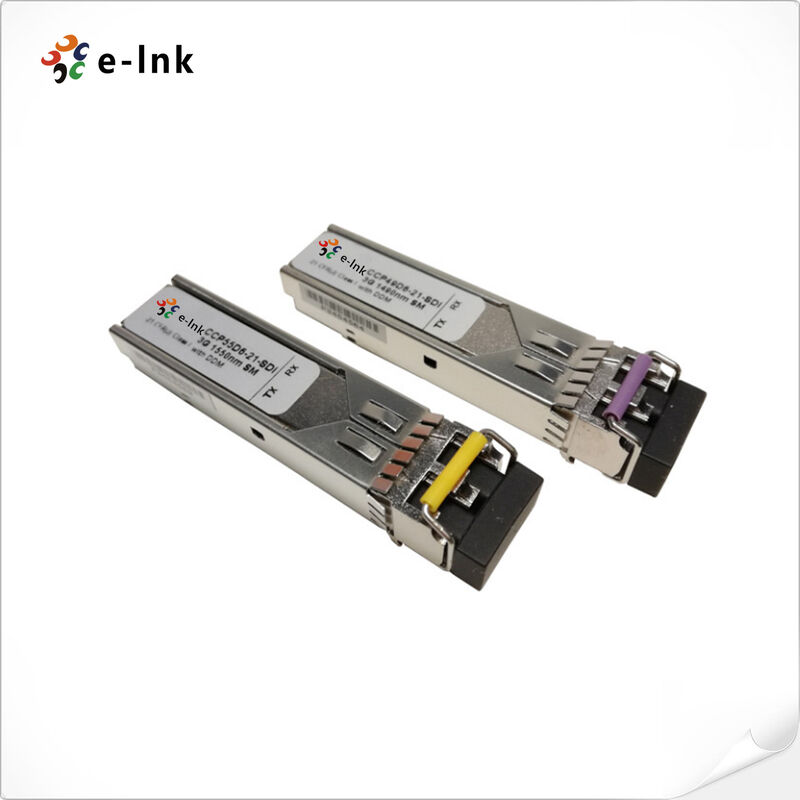

HD-SDI CWDM SFP Optical Transceiver 1270-1610nm 20km MSA Compliant

Model: LNK-CWDM-SFP1G-XX20

 Product Description & Overview

The HD-SDI CWDM 1270~1610nm 20km Digital Video SFP Optical Transceiver (MSA) delivers reliable,

high-density video transmission for professional broadcast and surveillance applications. This MSA-compliant

optical transceiver supports the complete 18-wavelength CWDM spectrum from 1270nm to 1610nm, enabling

efficient utilization of existing single-mode fiber infrastructure. Engineered for stable operation across data rates

from 50Mbps to 1.485Gbps, the module ensures robust signal integrity when processing SDI pathological patterns,

guaranteeing consistent performance for SMPTE 259M, SMPTE 344M, and SMPTE 292M compliant video signals.

Designed for flexible deployment, this digital video SFP transceiver achieves transmission distances up to 20

kilometers while maintaining 1.5Gbps signal quality, making it ideal for metropolitan and campus-wide video

networks. The hot-pluggable SFP form factor ensures straightforward integration with a wide range of broadcast

equipment, including video routers, extenders, and media converters. Advanced DFB transmitter technology

provides precise wavelength stability, while built-in digital diagnostics via the I2C interface allow for real-time

performance monitoring and system management.

Certified for safe operation, this optical transceiver meets relevant industry standards for deployment in

professional environments. The CWDM wavelength division capability enables significant bandwidth expansion

without the need for additional fiber installation, offering a cost-effective solution for broadcasters, system

integrators, and network operators. This transceiver is particularly well-suited for high-definition surveillance

systems, multi-channel broadcast distribution, distance learning networks, and event production setups where

reliable, high-quality video transmission over intermediate distances is required.

Key Features Bullets

• Broadcast Video Standards Compliance
  Fully compatible with SMPTE 297-2006 specifications for professional video transmission applications

• High-Definition Data Rate Support
  Operates at speeds from 50 Mbps to 1.485 Gbps for SD-SDI and HD-SDI signals

• Optimized Distance Transmission
  Provides reliable video transmission up to 20km over single-mode fiber at HD-SDI rates

• Robust Signal Processing Capability
  Maintains signal integrity with pathological pattern support for SDI and HD-SDI formats

• Full-Spectrum CWDM Wavelength Support
  18-channel DFB transmitter covering complete 1270nm to 1610nm CWDM spectrum

• Hot-Pluggable Modular Design
  Industry-standard SFP footprint enables flexible installation and maintenance

• Universal Interoperability
  Fully compliant with SFP MSA specifications for seamless equipment integration

• Advanced System Diagnostics
  Digital diagnostic functions accessible via I2C interface for real-time performance monitoring

• Efficient Power System
  Single +3.3V power supply with low power consumption for energy-efficient operation

• Extended Thermal Performance
  Operating case temperature range from 0°C to +70°C ensures stable environmental adaptation

• Environmental Safety Certification
  RoHS compliant and lead-free manufacturing meeting international safety standards

Technical Specifications & Indexes

Ordering Information

Application Scenarios

• High-density broadcast facility signal distribution

• Metropolitan HD surveillance and monitoring networks

• Multi-campus video distance learning systems

• Professional event production and live broadcasting

• CWDM-based video network capacity expansion
