1080P DVI-D Fiber Optic Extender

Name: 1080P DVI-D Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-DVI-106
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-DVI-106

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Fiber Extender Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Keywords:	Fiber Extender	Temperature:	Operating: -5℃ ~ +70℃
Power Supply:	The Power Adapter: DC 5V/2A	The Warranty:	1 Year Free Warranty

Keywords:	Fiber Extender
Temperature:	Operating: -5℃ ~ +70℃
Power Supply:	The Power Adapter: DC 5V/2A
The Warranty:	1 Year Free Warranty

Description

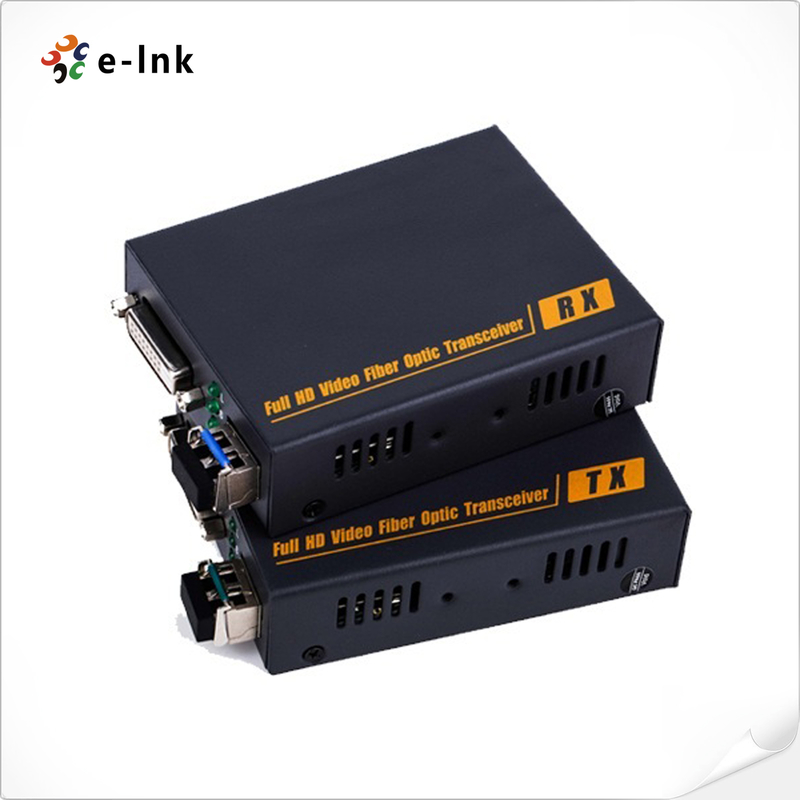

1080P DVI-D Fiber Optic Extender

1080P DVI-D Fiber Optic Extender

1080P DVI-D Fiber Optic Extender Advantages

► Transmits DVI video signals up to 2km-10km over one fiber optic cable;

► Support video resolution up to 1920*1200@60Hz;

► Support copy EDID, can match many kind display device;

► Compliance with DVI 1.0 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

1080P DVI-D Fiber Optic Extender Overview

The LNK-DVI-106 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

1080P DVI-D Fiber Optic Extender Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1920X1200@60Hz
	Connector	DVI-D
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km

1080P DVI-D Fiber Optic Extender Ordering Information

Model	Description
LNK-DVI-106	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-DVI-S106-10	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs
