8E1 HDMI Fiber Extender 1 Channel PCM business phone Fiber Multiplexer

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-PDH-E8

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

8E1 HDMI Fiber Extender

,

PDH HDMI Fiber Extender

,

PDH Fiber Multiplexer

Piece Weight:
3KG
Dimension (L×W×H):
19 Inch 1U 485X138X44mm(WXDXH)
Power Supply:
AC180V ~ 260V;DC –48V;DC +24V
Operating Temperature:
-10°C ~ 50°C
Piece Weight:
3KG
Dimension (L×W×H):
19 Inch 1U 485X138X44mm(WXDXH)
Power Supply:
AC180V ~ 260V;DC –48V;DC +24V
Operating Temperature:
-10°C ~ 50°C
Description

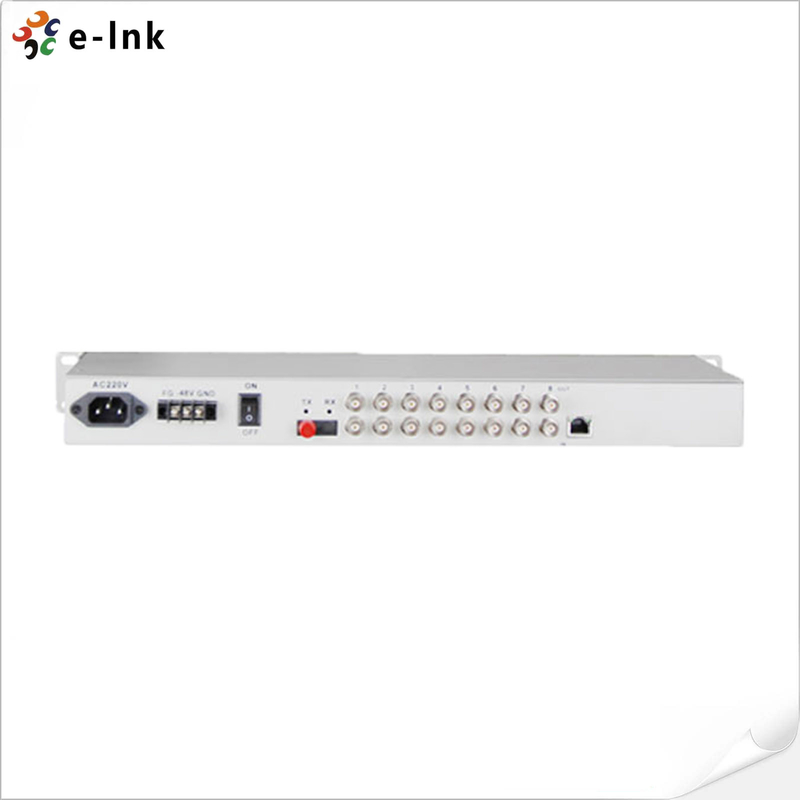

8E1 HDMI Fiber Extender 1 Channel PCM business phone Fiber Multiplexer

8E1 HDMI Fiber Extender 1 Channel PCM Business Phone Fiber Multiplexer



8E1 +1 Fiber PDH Multiplexer



HDMI Fiber Extender Advantages

· Based on self -copyright IC

· Modular wide dynamic optical detector

· 1 Channel PCM digital business phone (optional)

· The device provides master optical fiber interface and backup optical fiber interface, Dual Optical Port backup function ensures that the work will never break (optional)

· E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology

· When optical lose signal, it can detect the remote device is power off or fiber is disconnected, and indicates alarm by LED

· The local device can view the remote device working condition

· Provide command the remote interface Loop Back, ease line maintenance

· The transmission distance is up to 2-120Km without interruption

· AC 220V, DC-48V, DC24V can be optional

· DC-48V/DC24V power supply polarity detection function, Polarity-Free

Technical Indexes

Parameter Specification
Fiber
Multi-mode Fiber
Fiber Type 50/125um, 62.5/125um
Maximum transmission distance 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity -28dBm (Min)
Link budget 16dBm
Single-mode Fiber
Fiber Type 8/125um, 9/125um
Maximum transmission distance 40Km
Transmission distance 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length 1310nm
Transmitting power -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity -27dBm (Min)
Link budget 18dBm
E1 Interface
Interface Standard comply with protocol G.703
Interface Rate n*64Kbps±50ppm
Interface Code HDB3
E1 Impedance: 75Ω (unbalance), 120Ω (balance)
Jitter tolerance In accord with protocol G.742 and G.823
Allowed Attenuation 0~6dBm
Power
Power supply AC180V ~ 260V;DC –48V;DC +24V
Power consumption ≤10W
Dimension
Product size 19’’ 1U
Working environment
Working temperature -10°C ~ 50°C
Working Humidity 5%~95 % (no condensation)
Storage temperature -40°C ~ 80°C
Storage Humidity 5%~95 % (no condensation)


Overview

This device provides 1-8Channel E1 interface, 1Channel PCM digital hotline phone (optional). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, and small size.

8E1 HDMI Fiber Extender 1 Channel PCM business phone Fiber Multiplexer 0
