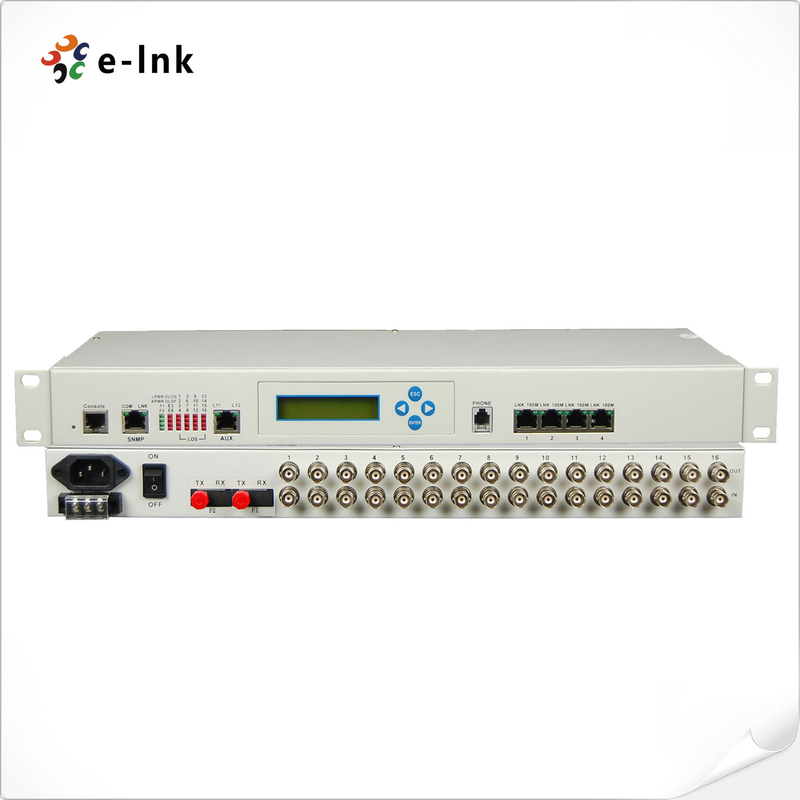

16E1 4FE LCD PDH SNMP Multiplexer Fiber 10M 100M Auto Ataptable

8E1 +1 Fiber PDH Multiplexer

HDMI Fiber Extender Advantages

Provides 16E1 transparent transmission ;
With char 16*2 LCD display and SNMP agent inside.
Provide Console manage interface(RS232)
Provide two fiber interface 1+1 protect function ,and ALS(Automatic Laser Shutdown/Reduction)function
Provide 4*100M wire-speed Ethernet channel,support mutual negotiate, Ethernet bandwidth is set on base on multiple of 32K.;
Provice one hotline channel for option;
Provide two fiber interfaces, one as master, the other as slave, insuring uninterrupted service transmission.
The rate of optical port is 155Mbps, transmission range can reach 25KM, 40KM, 60KM, 80KM or 100KM;
E1 interface code is HDB3,E1 vibration characteristic conforms to ITU-T G.703,G.823 and G.742;
Ethernet port supports full/half duplex, 10M/100M auto-ataptable;
Ethernet port supports VLAN function and has 4 devision mode for user selection;
Ethernet package size support 1916 byte and 4 Ethernet port could be set seperately;
Has complete alarm function and can monitor remote device status;
Supports two Fiber Loop-back,and Four E1 loop-back mode,and manage device conveniently;
user configurable main alarm and minor alarm, display in LCD and sound alarm at speaker;

Technical Indexes

Overview

This device has the console control,provides the 1+1 fiber path protection, point to point optical transmission, LCD display, on the basic of our company development of the PDH optical transmission, use the special VLSI and the SNMP NMS.

This device is 16E1 point-to-point optical transmission equipment with LCD display, uses the FPGA chips and easy to upgrade. It is single board structure and its largest transmission capacity is 16E1, 4*100M channel Ethernet data and 2 AUX port which is for transmitting other data such as RS232/RS485/RS422.
