10Gbps SFP+ Active Optical Cable

Name: 10Gbps SFP+ Active Optical Cable
Brand: E-link China Technology Co.,LTD
SKU: LNK-2OFC-SC-SC
Price: 130.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-2OFC-SC-SC

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Supply Voltage:	-0.3-3.6V	Relative Humidity:	5-85%
Storage Temperature:	-20-	Supply Current:	450mA

Supply Voltage:	-0.3-3.6V
Relative Humidity:	5-85%
Storage Temperature:	-20-
Supply Current:	450mA

Description

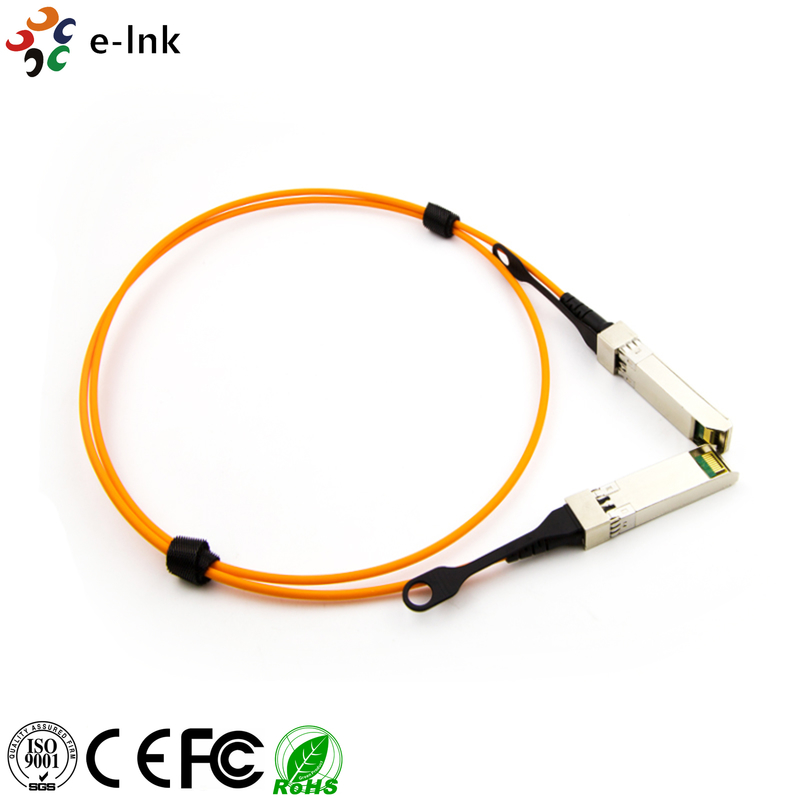

10Gbps SFP+ Active Optical Cable

10Gbps SFP+ Active Optical Cable

Product Advantages

Ø 10Gb/s active optical cable up to 100m MMF

Ø 850nm VCSEL and PIN receiver

Ø Single 3.3V power supply

Ø Operating Case Temperature: -5~75℃

Ø Hot pluggable

Ø Low Power Consumption

Ø Light weight

Ø Small Bend Radius

Ø Digital Diagnostic Monitor(DDM)

Ø All-metal Housing for Superior EMI Performance

Overview

E-link’s LNK-AA18MX-XXX SFP+ Active Optical Cable (AOC) is a 10Gbps solution to 10G Ethernet, and data center. The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low

Ordering Information

Part Number	Data Rate	Length	Connector Type	Cable Type	Temp. Range	Cable Jacket
LNK-AA18M2-1	Up to 10.5G	1m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-1.5	Up to 10.5G	1.5m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-2	Up to 10.5G	2m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-2.5	Up to 10.5G	2.5m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-3	Up to 10.5G	3m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-3.5	Up to 10.5G	3.5m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-5	Up to 10.5G	5m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-7	Up to 10.5G	7m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-10	Up to 10.5G	10m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-15	Up to 10.5G	15m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-20	Up to 10.5G	20m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-25	Up to 10.5G	25m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
LNK-AA18M2-30	Up to 10.5G	30m	SFP+ to SFP+	AOC Cable	0-70℃	PVC
