Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-FVGA
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: Video Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
VGA Fiber Optic Extender |
Audio Format: |
44.1K,48K,96K,176K,192K |
Signal Direction: |
Bidirectional |
K/M TO PC: |
USB Connect To PC |
Interface Bandwidth: |
2.97Gbps |
Power Supply: |
DC 5V/2A |
Keyword: |
VGA Fiber Optic Extender |
Audio Format: |
44.1K,48K,96K,176K,192K |
Signal Direction: |
Bidirectional |
K/M TO PC: |
USB Connect To PC |
Interface Bandwidth: |
2.97Gbps |
Power Supply: |
DC 5V/2A |

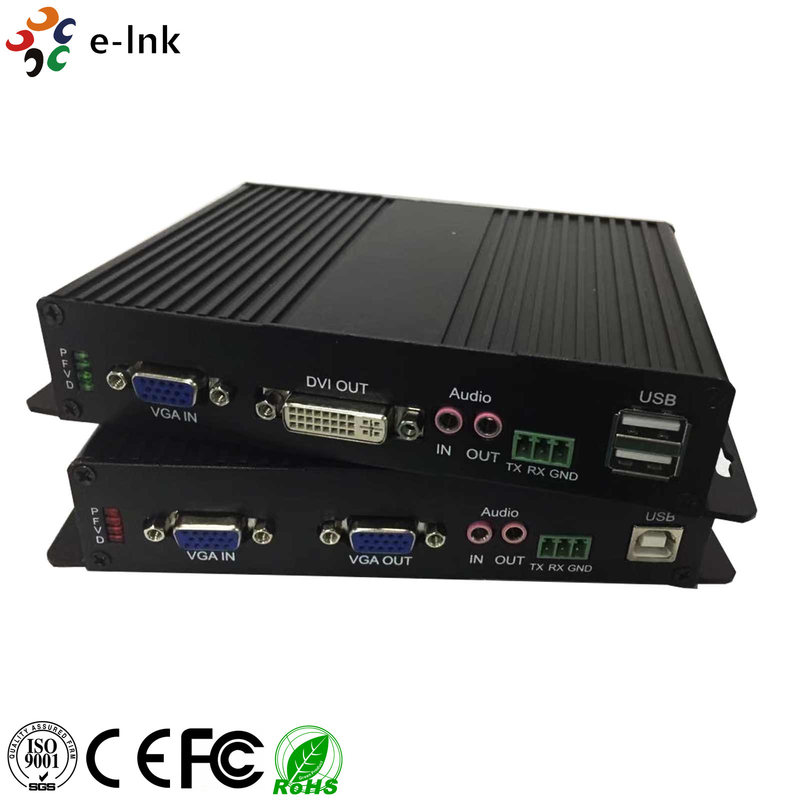

Video Fiber Converter 1080P VGA Fiber Optic Extender Fiber Audio Converter
VGA Fiber Optic Extender Advantages
► Transmits VGA video signals up to 10km over one fiber optic cable;
► Support video resolution up to 1920*1080P@60Hz;
► Support external stereo audio unidirectional transmission;
► Support transmitter one channel signal output;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive
Technical Indexes
|
Video |
Standards |
VGA |
|
Resolution |
1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz/75Hz |
|
|
Audio |
Interface |
3.5mm earphone seat |
|
Signal type |
Stereo |
|
|
RS232 |
Interface |
Industrial terminal |
|
Baud rate |
Self-adaptive, Max:115200bps |
|
|
Data bits |
8 |
|
|
KVM |
K/M TO PC |
USB connect to PC |
|
KEYBOARD/MOUSE |
USB connect to keyboard and mouse |
|
|
Optical fiber |
Interface |
LC connector |
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
Single-mode 1310nm |
|
|
Transmission distance |
standard 10km |
|
|
Other |
Dimension |
165*120*27mm 19inch 4U rack |
|
The warranty |
1 year free warranty, life-long maintenance |
Overview
The LNK-FVGA Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, 1 Ch RS232 signal and external 1 duplex audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering Information
|
Model |
Details |
|
LNK-FVGA-T |
1080P VGA Fiber Optic Extender Transmitter |
|
LNK-FVGA-R |
1080P VGA Fiber Optic Extender Receiver |
|
LNK-R16-4-D |
16-slot, dual power supply-AC110-220V-19''4U- blackfor card-type media converter |
