18dBm 1Ch 4Ch Fiber Media Converter IP30 Protection Metal Casing

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO

Model Number: LNK-GYS101

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

18dBm Fiber Media Converter

,

IP30 Fiber Media Converter

,

18dBm Industrial Media Converter

MTBF:
> 100,000 Hours
Storage Temperature:
-40°C To +85°C
Working Humidity:
5%~95 % (no Condensation)
Weight:
685g
Dimensions:
133mm×40mm×120mm (H×W×D)
Operating Temperature:
-40°C ~ 75°C
MTBF:
> 100,000 Hours
Storage Temperature:
-40°C To +85°C
Working Humidity:
5%~95 % (no Condensation)
Weight:
685g
Dimensions:
133mm×40mm×120mm (H×W×D)
Operating Temperature:
-40°C ~ 75°C
Description
18dBm 1Ch 4Ch Fiber Media Converter IP30 Protection Metal Casing

18dBm 1Ch 4Ch Fiber Media Converter IP30 Protection Metal Casing



Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter



Fiber Media Converter Advantages

  • ► Based on proprietary integrated circuit;

    ► Provide 1-4 independent serial ports (RS232/422/485 optional) channel, physical isolation from each other, there is no correspondence between the

    ► RS232 / 485/422 interface, optional three data, RS232 supports 3-wire RS232 (TXD, RXD, GND), flow control support CD, DSR, CTS,

    ► RS232 /485/422 channels can be transmitted from 0-115200 baud asynchronous serial data adaptive

    ► Serial port interface lightning reach IEC61000-4-5 (8 / 20μS) differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard

Specifications

Fiber
Multi-mode Fiber:50/125um, 62.5/125um
Maximum transmission distance 2Km @ 62.5/ 125um multi mode
fiber, attenuation (3dbm/km)Wave Length 820nm
Transmitting power -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity -28dBm (Min)
Link budget 16dBm
Single-mode Fiber:8/125um, 9/125um
Maximum transmission distance 20Km
Transmission distance 20Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length 1310nm
Transmitting power -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity -27dBm (Min)
Link budget 18dBm
RS232/422/485 Interface
Rate 0-115200Kbps
Interface characteristics EIA RS232 RS422 RS485
Connector Phoenix terminal
Working environment
Working temperature -40°C ~ 75°C
Working Humidity 5%~95 % (no condensation)
Storage temperature -40°C ~ 80°C
Mechanical:
Dimensions 133mm×40mm×120mm (H×W×D)
Casing IP30 protection, Metal case
Installation 35mm DIN-Rail, Wall Mounting
Weight 685g



Overview

The converter is designed to provide the most versatile connection possible between two RS-232/422/485 serial equipment using fiber optic cable. It allows any two pieces of serial equipment to communicate full-duplex over typical duplex fibers, or over optional single fiber up to 20km. The Din-rail mountable design makes it ideal for industrial cabinets and enclosures. For industrial environment, the converters are designed with the following enhanced features exceeding that of commercial media converters:

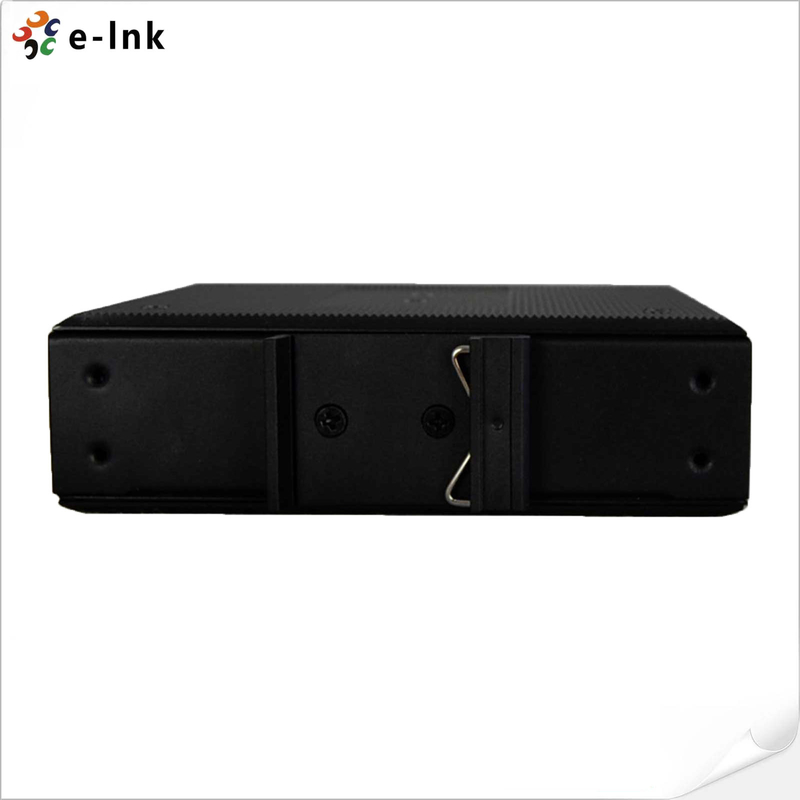

18dBm 1Ch 4Ch Fiber Media Converter IP30 Protection Metal Casing 0



Order Information



LNK-GYS101 Industrial 1Ch RS232, RS22 or RS85 Serial Fiber Media Converter: 1xOptical port+1xRS232/RS485/RS422 port (Default FC, SFP or SC Fiber port optional)
LNK-GYS102 Industrial 2Ch RS232, RS22 or RS85 Serial Fiber Media Converter: 1xOptical port+2xRS232/RS485/RS422 port (Default FC, SFP or SC Fiber port optional)
LNK-GYS104 Industrial 4Ch RS232, RS22 or RS85 Serial Fiber Media Converter: 1xOptical port+4xRS232/RS485/RS422 port (Default FC, SFP or SC Fiber port optional)
