SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver

Name: SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver
Brand: E-link China Technology Co.,LTD
SKU: LNK-2000 Series
Price: 154.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001 / CE / RoHS / FCC

Model Number: LNK-2000 Series

Payment & Shipping Terms

Minimum Order Quantity: 1pair

Price: $39-270

Packaging Details: Fiber Media Convertor Standard Carton Packaging

Delivery Time: 1-3working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      ASI Fiber Optic Transmitter, Unidirectional Fiber Optic Transmitter Receiver, SD-SDI Fiber Optic Transmitter


Pressure:	1A@12VDC	Power:	12W
Working Temperature:	-45℃～＋50℃	EMI/RFI:	FCC Part 15 Class A, EU EMC Standard
Connector:	FC/PC（ST/PC Optional）	Output Channels:	1-8

Pressure:	1A@12VDC
Power:	12W
Working Temperature:	-45℃～＋50℃
EMI/RFI:	FCC Part 15 Class A, EU EMC Standard
Connector:	FC/PC（ST/PC Optional）
Output Channels:	1-8

Description

SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver

USB VGA KVM Fiber Optic Extender Support keyboard and

mouse signal transmission

Fiber Optic Accessories Advantages:

1-8 ch unidirectional SD-SDI/ASI,TS stream with embedded audio over one fiber
SMPTE 259, SMPTE 297, SMPTE310, SMPTE305
DVB-ASI (270Mb/s) standard
Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)
Optional network management system
LED status indicators monitor the critical parameters
Support hot swap
Support stand-alone, 1U rack mount and 4U rack mount

Overview

The SD-SDI/ASI provides customer with the most cost-effective solution for

transmission of 1-8 channel unidirectional SDI/ASI digital video signal, with

1+1 remote input redundancy and 1 local input redundancy optional. It is an

easy installation and adjustment free device while providing high quality, real-time

video. It is widely used in the field of CCTV, video surveillance, and etc.

Application

· Remote OB Van/Truck Video Feeds

· Broadcast Studio Camera Feeds

· Long-haul Signal Transport

· TV station/video conference

· Lecture Hall Projector Connectivity

· Medical/Surgical Room Broadcast

· Building to Building video conference calling

· Small corporate campus video links

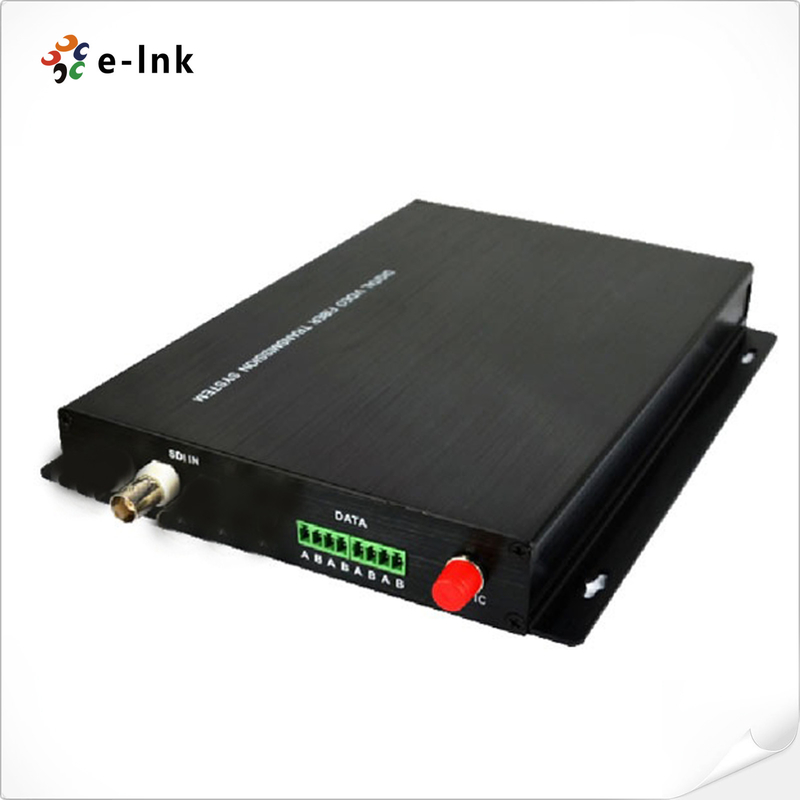

SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver 0

Technical Parameters

Serial TV BNC Input
TV signal standard	SMPTE 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate
Input channel	1-8
Reflection loss	>15DB
Equilibrium	0-250m
Connector	75Ω BNC
Serial TV BNC Output (EO/OE)
Output channels	1-8
Signal level	800mV nominal
Rise/fall time	200Ps nominal
Overshoot	<10% amplitude
Reflection loss	> 15dB
Jitter	< 0.3UI
Connector	75Ω BNC
Optic Output
Channel	1
Type	Single-mode/fiber (multimode optional)
Wavelength	CWDM wavelenth
Reflection loss	> 15dB
Jitter	< 0.3UI
Connector	FC/PC(ST/PC optional)
Power and environmental indicator
Operating temperature	-45℃～＋50℃
Pressure	1A@12VDC
Power	12W
EMI/RFI	FCC Part 15 Class A, EU EMC standard
Average time trouble-free	>100000 hours
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:

Odering Information

Model	Description
LNK-2010-T	1-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km , stand-alone or 1U rack mount
LNK-2010-R	1-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2020-T	2-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2020-R	2-Ch SD-SDI/ASI with embedded audio output, single mode (multimode optional), single fiber, FC/PC fiber connector , BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2040-T	4-Ch SD-SDI/ASI with embedded audio input, single mode (multimode optional), single fiber, FC/PC fiber connector , BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2040-R	4-Ch SD-SDI/ASI with embedded audio output, single mode (multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2080-T	8-Ch SD-SDI/ASI with embedded audio input, single mode (multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2080-R	8-Ch SD-SDI/ASI with embedded audio output, single mode (multimode optional), single fiber, FC/PC fiber connector , BNC video interface, 0-120km, stand-alone or 1U rack mount
