Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-5MP-1V-20
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: Video Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
CCTV Camera Video Converter |
Output Power: |
-8~3dBm |
Optical Connector: |
FC (default) |
Transmission Distance: |
20Km |
Video Number: |
1 Channel |
Mounting Options: |
Wall-mount/Rack-mount |
Keyword: |
CCTV Camera Video Converter |
Output Power: |
-8~3dBm |
Optical Connector: |
FC (default) |
Transmission Distance: |
20Km |
Video Number: |
1 Channel |
Mounting Options: |
Wall-mount/Rack-mount |

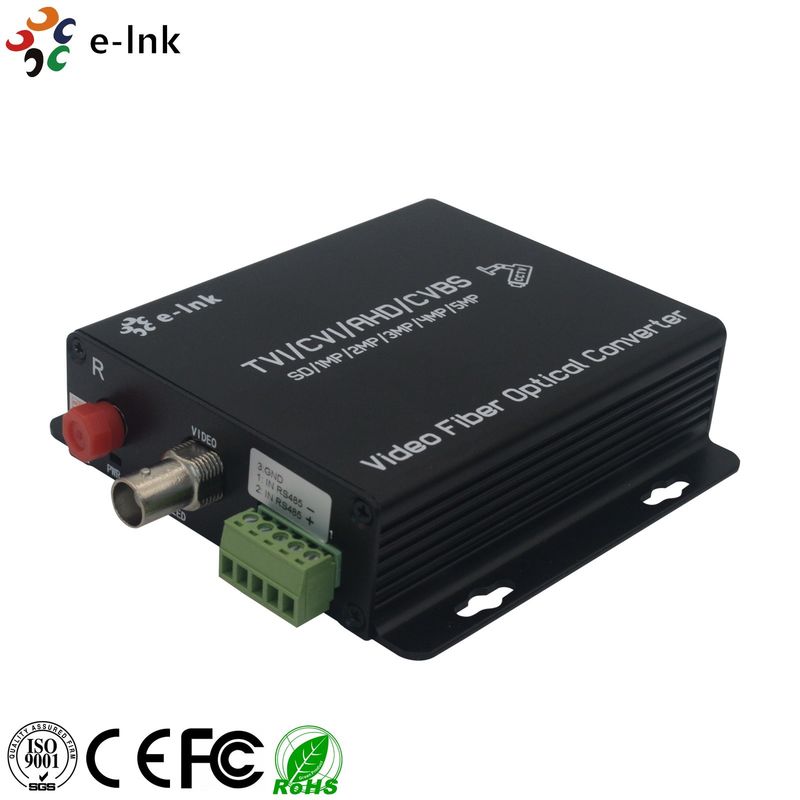

Video Fiber Converter 1Ch 5MP HD-Video 4-In-1 Video To Fiber Converter
Fiber Optic Video Converter Advantages
► Support 5MP 4MP 3MP 1080P 720P Camera
► PTZ data RS485 / RS232 / RS422 optical
► 50/125u multimode,62.5/125u multimode,9/125u single mode optic fiber
► Transmission Distance 0~550M (MM) / 0~80KM (SM) option
Technical Indexes
Optical Fiber | ||
Wavelength | WDM:1310nm/1550nm | |
Rx sensitivity | -26dBm | |
Optical connector | FC (default), ST or SC (optional) | |
Video | ||
Input/output impedance | 75 Ohm (unbalance) | |
Standard video input/output voltage | 1.0Vp-p | |
Video Bandwidth | 50MHz | |
Connector | BNC | |
Supporting video | 5MP 4MP 3MP 1080P 720P Camera | |
PTZ Data | ||
Protocol | Default: RS485 (RS232/RS422 Optional) | |
Directions | Default :Simplex from Rx to Tx (BIDI duplex optional) | |
Electrical and Mechanical | ||
Input Power: | DC5V 2A | |
Power Consumption: | ≤6W | |
Casing: | Metal Case | |
Overview
E-link HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopts the advanced uncompressed HD composite video and high speed digital optical transmission technologies which converts the AHD, HD-CVI, HD-TVI or CVBS composite signals to optical signals in order to achieve long distance(as far as 120Km) transmission through fibers. Electronic and optical adjustments are never required.
Ordering information
Model | Details |
LNK-5MP-1V-20 | 1-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs |
LNK-5MP-1V-20R | 1-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera ) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs |
