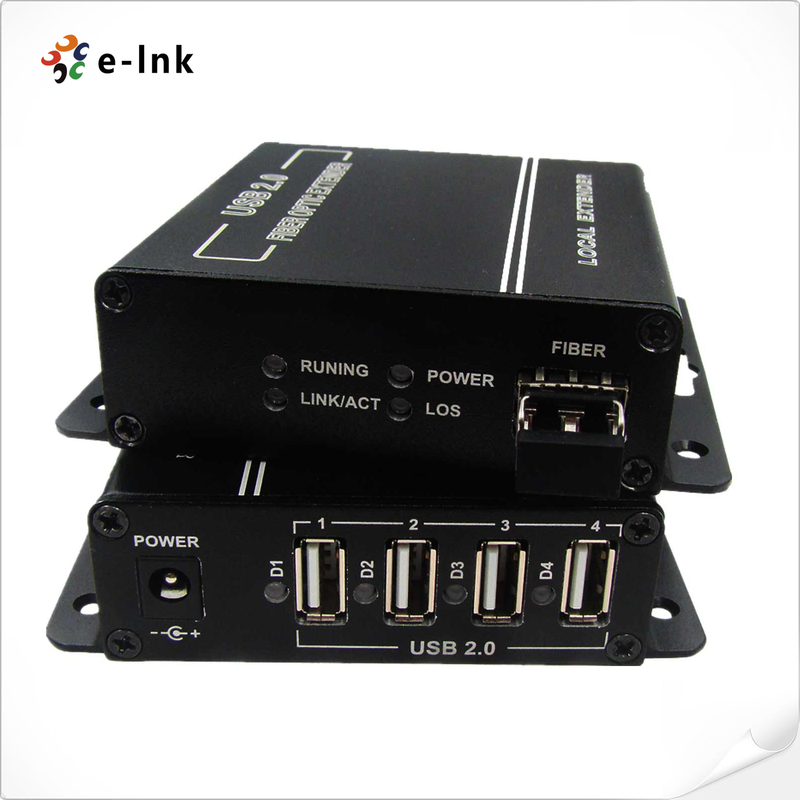

4 Port USB 2.0 Fiber Extender

Name: 4 Port USB 2.0 Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-U4F1-2.0
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-U4F1-2.0

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: Industrial PoE Switch standard export package

Delivery Time: 3-6working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Weight:	LNK-U4F1-2.0-R: 350g	Operating Temperature:	32° To +122° F. (0° To +50° C)
Storage Temperature:	-40° To +185° F. (-40° To +85° C)	Limited Warranty:	2 Year Warranty
Power Consumption:	LNK-U4F1-2.0-T: 2watts LNK-U4F1-2.0-R: 3.5 Watts

Weight:	LNK-U4F1-2.0-R: 350g
Operating Temperature:	32° To +122° F. (0° To +50° C)
Storage Temperature:	-40° To +185° F. (-40° To +85° C)
Limited Warranty:	2 Year Warranty
Power Consumption:	LNK-U4F1-2.0-T: 2watts LNK-U4F1-2.0-R: 3.5 Watts

Description

4 Port USB 2.0 Fiber Extender

4 Port USB 2.0 Fiber Extender Advantages

► Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices

► Operates with USB 1.1 and USB 2.0 hosts

► Supports all USB devices up to 480 Mbps

► Distance of up to 200m over multi-mode fiber optics (SFP transceiver modules included)

► Integrated hub provides four remote USB 2.0 ports.

4 Port USB 2.0 Fiber Extender Overview

LNK-U4F1-2.0 Series provides true USB 2.0 extension at up to 480 Mbps over 200m/600ft of

multi-mode fiber optics, without the need of additional software drivers.

A true plug-and-play solution, the LNK-U4F1-2.0 Series is compatible with all leading operating

systems, and supports all USB 1.1 and 2.0 device types from high-speed web cams, hard drives,

printers, scanners, audio devices, touch screens, digital cameras and game controllers.

An integrated four port hub allows for extension of up to four USB devices without the need for

an additional hub.

4 Port USB 2.0 Fiber Extender Technical Indexes

Performance
Local Unit	Upstream Port	USB2.0 Type A Male
	Downstream Port	USB2.0 SFP*1
Remote Unit	Upstream Port	USB2.0 SFP*1
	Downstream Port	4-Port
	USB Power Supply	1*500mA
Operation Mode	Support low speed(1.5 Mbps), full speed(12 Mbps), and high speed(480 Mbps) USB data transfer
Connections
USB2.0 Input	USB2.0 Type-A Female
USB2.0 Output	USB2.0 Type-A Female
Optical	1x SFP port
Cable
Fiber Cable Type	Multi-Mode
Max. Length	≤ 200 meters
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H) (Unit:mm)	LOCAL EXTENDER : 10411428 REMOTE EXTENDER: 10411428

Net Weight	LNK-U4F1-2.0-L: 200g LNK-U4F1-2.0-R: 350g
Environmental
Operating Temperature	32° to +122° F. (0° to +50° C)
Storage Temperature	-40° to +185° F. (-40° to +85° C)
Operating Humidity	5% to 80% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Power Requirements
External AC Power Adapter	Local Unit:Power adapter at host is not required
	Remote Unit: Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A 5/2.5mm jack
Power Consumption	LNK-U4F1-2.0-T: 2watts LNK-U4F1-2.0-R: 3.5 watts
Warranty
Limited Warranty	2 year warranty
