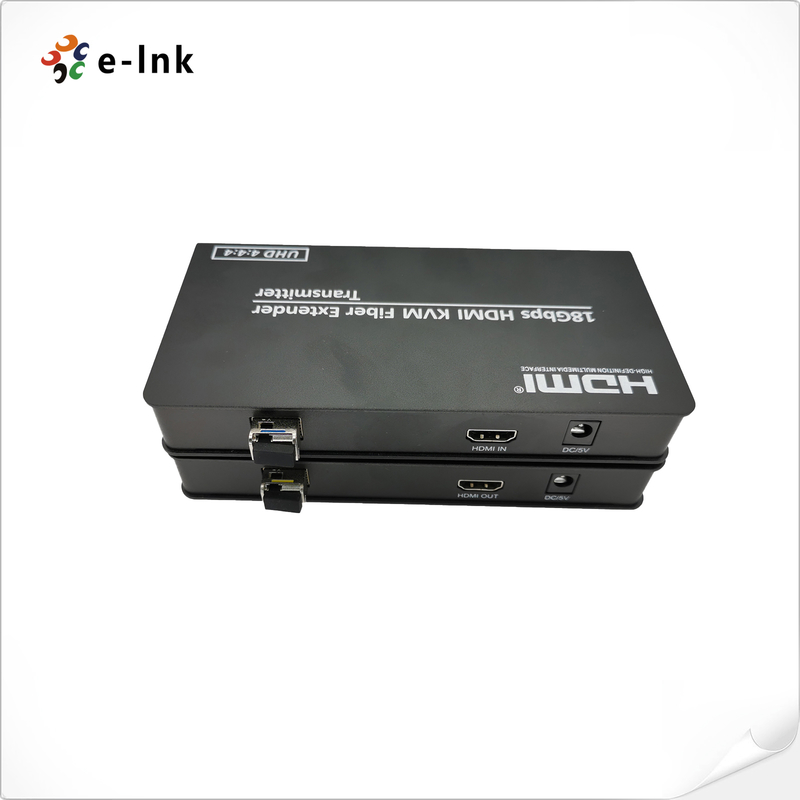

4K HDMI 2.0 KVM USB over Fiber Optic Extender

Name: 4K HDMI 2.0 KVM USB over Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-HDMI Series
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-HDMI Series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Extender Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Fiber Optic HDMI Extender, 4K USB over Fiber Optic Extender, Fiber Optic KVM USB Extender


Keywords:	Fiber Optic Extender	Operating Temperature:	-10℃ ~ +55℃
Power Supply:	The Power Adapter: DC 5V	Power Dissipation:	MAX 5W
Dimension (LxWxH):	163 X 86 X 24(mm)	Gross Weight:	1.471KG

Keywords:	Fiber Optic Extender
Operating Temperature:	-10℃ ~ +55℃
Power Supply:	The Power Adapter: DC 5V
Power Dissipation:	MAX 5W
Dimension (LxWxH):	163 X 86 X 24(mm)
Gross Weight:	1.471KG

Description

4K HDMI 2.0 KVM USB over Fiber Optic Extender

4K HDMI 2.0 KVM USB over Fiber Optic Extender Advantages

► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF

► Support keyboard and mouse signal transmission

► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit

► Supports HDCP 2.2

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse, fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Simple to install, plug and play

4K HDMI 2.0 KVM USB over Fiber Optic Extender Overview

LNK-HF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse). It consists of two modules that are interconnected by means of single-mode or multimode fiber optic cable. It allows working at a maximum resolution of 4K HDMI video. The maximum cable distance can be up to 10 km via Single Mode Fiber or 300 meters via OM3 Multimode Fiber.

4K HDMI 2.0 KVM USB over Fiber Optic Extender Technical Indexes

Parameter		Description
Video	Standards	HDMI 2.0 and HDCP 2.2
	Maximum pixel clock	600MHz
	Maximum data rate	18Gbps
	Resolution range	800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P
	Connector	Female HDMI type A
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode or Multimode
	Wavelength	Single-mode 1310nm, Multimode 850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM3 Multimode fiber: 300M Single mode fiber: 10KM

4K HDMI 2.0 KVM USB over Fiber Optic Extender Ordering Information

Model	Description
LNK-HF201KM-M	4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters
LNK-HF201KM-10	4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km

4K HDMI 2.0 KVM USB over Fiber Optic Extender 0
