HD-SDI Repeaters

Name: HD-SDI Repeaters
Brand: E-link China Technology Co.,LTD
SKU: LNK-TX500
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-TX500

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Repeaters Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  HD-SDI Repeaters


Keywords:	HD-SDI Repeaters	Operating Temperature:	-10-50
Dimensions (W X D X H):	87.5(L)x33(W)x22(H)mm 121(L)x54(W)x36(H)mm(Sale Package)	Shippingweight:	160g
Housing Material / Net Weight(each):	Aluminum/61g

Keywords:	HD-SDI Repeaters
Operating Temperature:	-10-50
Dimensions (W X D X H):	87.5(L)x33(W)x22(H)mm 121(L)x54(W)x36(H)mm(Sale Package)
Shippingweight:	160g
Housing Material / Net Weight(each):	Aluminum/61g

Description

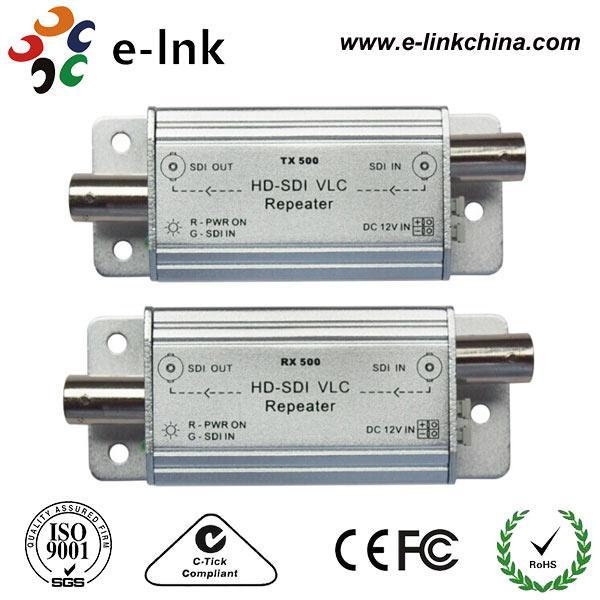

HD-SDI Repeaters

HD-SDI Repeaters

HD-SDI Repeaters Advantages

► Support resolution of 1280 x 720 (24/25/30/50/60fps) and 1920 x1080 (24/25/30fps) ·Support data width of 20-bit(Non-multiplexed) or 10-bit(Multiplexed)

► Support transmission ratio of 2.97Gbps, 1.485Gbps, and 270Mbps

► Embedded surge protection cables

► Light Aluminum Housing, Easy to carry and install

HD-SDI Repeaters Overview

E-link LNK-TX500 is to apply for signal transmitting terminal. LNK-Rx500 is to apply for receiving terminal. LNK-TX500 & LNK-TX500 repeaters is a equipment of HD-SDI signal data transmission, which can support transmitting HD-SDI signal data for 500 meters.

HD-SDI Repeaters Technical Indexes

Model No.	LNK-SDI-TX500 & LNK-RX500
Input / Output Signal Type	HD-SDI
Power Consumption	DC12V/1W
Power Input	DC12V/0.07A
Max Distance of Each Pair	RG-6(Belden 1694A)-400m(Full SD:270M)
Connect Info	SDI Signal Joint BNC-F(75Ω) Power input joint DC Female (5.5*2.1)
LED Instruction	Green OFF: HD-SDI input Red ON: Power input
Operation Temperature / Humidity	-10-50
Housing Material / Net Weight(each)	Aluminum/61g
Gross Weight(pair)	160g
Dimension(MM)	87.5(L)x33(W)x22(H)mm 121(L)x54(W)x36(H)mm(Sale package)

HD-SDI Repeaters Ordering Information

Item	Description

LNK-SDI-TX500	Transmitter: HD-SDI signal amplifier, SDI repeater, SDI Extender. HD signals to extend 500 meters.
LNK-SDI-RX500	Receiver: HD-SDI signal amplifier, SDI repeater, SDI Extender. HD signals to extend 500 meters.

HD-SDI Repeaters 0
