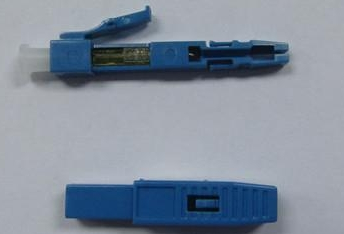

LC Fast Connector Series
LC Fast Connector Series
LC Fast Connector Series

LC Fast Connector Series

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-12working days

Payment Terms: T/T,PayPal

Supply Ability: 5000pcs/mouth

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Operating Temperature:
-40C ~ +75C
Storage Temperature:
-40C ~ +85C
Connector Type:
LC
Ferrule Material:
Ceramic
Housing Material:
Composite
Operating Temperature:
-40C ~ +75C
Storage Temperature:
-40C ~ +85C
Connector Type:
LC
Ferrule Material:
Ceramic
Housing Material:
Composite
Description
LC Fast Connector Series

LC Fast Connector Series

Advantage

· No special assembly tool

· Low insertion loss and back reflection loss

· RJ-45 style interface

· Polarized and color coded (TIA568-A & ISO 11801)

· UL-rated plastic housing and boot

· High precision alignment

· Compact, pull-proof design

· Behind-the-wall style short connector

Overview

The fast connector is designed for high quality and high efficiency for installation.

The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.Adopted fiber pre-installed structure.Could be reused, and convenient for field installation.

Technical Indexes

Mechanical Specifications- Connector

Insertion loss

≤ 0.3(1310nm & 1550nm)dB

Return loss

≤ -40dB

Bare fiber strength

>5N

Clad strength

>10N

Tension

>50N

Tensile strength (20 N)

IL ≤ 0.2& RL ≤ 5dB

Mechanical ‎durability(500times)

IL ≤ 0.2& RL ≤ 5dB

Temperature Range

Operating Temperature

-40~75℃ (wide temperature optional)

Storage Temperature

-40~85℃

Design - Connector

Connector Type

LC

Ferrule Material

Ceramic

Housing Material

Composite

Application

· Gigabit Ethernet

· Active device termination

· Telecommunication networks

· Video

· Multimedia

· Premise installation
