Mini FTTx Fusion Splicer

Name: Mini FTTx Fusion Splicer
Brand: E-link China Technology Co.,LTD
SKU: LNK-740 Series
Price: 130.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-740 Series

Document: E-link Mini FTTx Fusion Spl....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Protection Sleeve Length:	20mm, 40mm, 60mm	Splice Program:	5 Groups Of Preset Programs, 75 Group Of Manual Setting
Language:	English, Chinese, Russian, Spanish, Portuguese.	Environment Conditions:	-25～＋50℃ (operation Temperature), 0～95%RH (humidity), 0～5000m (altitude)
Storage Environment:	-40～ +80℃ (temperature) , 0～95％RH (humidity)	Dimensions/Weight:	142（D）×122（W）×138（H）mm/1.95kg

Protection Sleeve Length:	20mm, 40mm, 60mm
Splice Program:	5 Groups Of Preset Programs, 75 Group Of Manual Setting
Language:	English, Chinese, Russian, Spanish, Portuguese.
Environment Conditions:	-25～＋50℃ (operation Temperature), 0～95%RH (humidity), 0～5000m (altitude)
Storage Environment:	-40～ +80℃ (temperature) , 0～95％RH (humidity)
Dimensions/Weight:	142（D）×122（W）×138（H）mm/1.95kg

Description

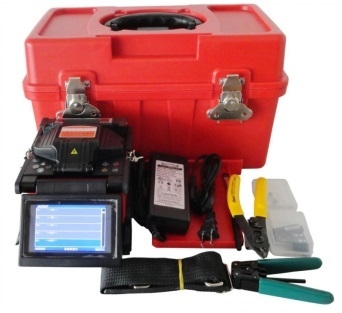

Mini FTTx Fusion Splicer

Product Advantages

· Compact & Light weight

· Applied for Fibers, Cables and SOC (splice- on connector)

· Integrated Holder Design

· Fully Automatic, Semi-automatic and Manual Operation

· Shockproof, Drop resistance

· Power saving Function

· 4.3 inch Color LCD monitor

· USB&DC interface

Overview

E-link Mini FTTx Fusion Splicer LNK-740 is an economic and competitive fusion splicer machine for FTTx optical network engineering. Compact, simple and slim body, multiple foreign languages menu, convenient and easy to operate indoor and field.

Technical Indexes

Applicable fibers	SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.
Fiber cleaved length	8-22mm
Average splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss	≥60dB
Tension test	2.0N(200gf)(Standard)
Protection sleeve length	20mm, 40mm, 60mm
Splice Program	5 groups of preset programs, 75 group of manual setting
Language	English, Chinese, Russian, Spanish, Portuguese.
Environment conditions	-25～＋50℃ (operation temperature), 0～95%RH (humidity), 0～5000m (altitude)
Storage environment	-40～ +80℃ (temperature) , 0～95％RH (humidity)
Power supply	AC adaptor: 85～260V input voltage
Power supply	Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat
Dimensions/Weight	142(D)×122(W)×138(H)mm/1.95kg
