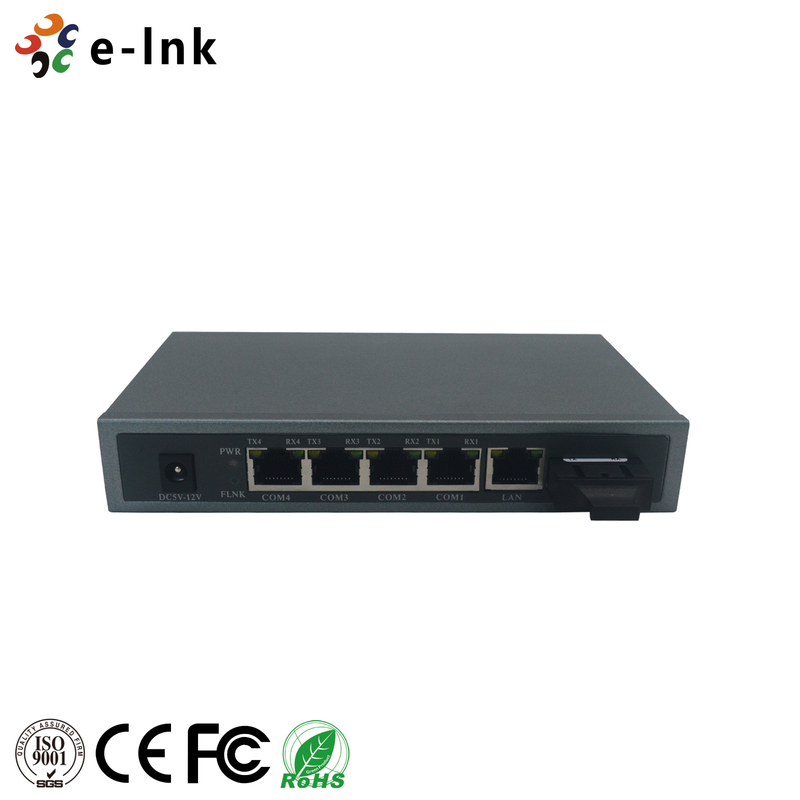

RS422 Serial to Fiber/Ethernet Converter

Name: RS422 Serial to Fiber/Ethernet Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-2401-RS422
Price: 130.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-2401-RS422

Document: E-link LNK-2401 Series 4 Po....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Working Temperature:	0~50℃	L×W×H:	160mm×95mm×28mm
Fiber Connector:	SFP (LC) / SC	Weight:	0.65Kg
Linux Real TTY Drivers:	Linux 2.4.x, 2.6.x	Distance:	2km/20km/40km/60km/80km/100km/120km

Working Temperature:	0~50℃
L×W×H:	160mm×95mm×28mm
Fiber Connector:	SFP (LC) / SC
Weight:	0.65Kg
Linux Real TTY Drivers:	Linux 2.4.x, 2.6.x
Distance:	2km/20km/40km/60km/80km/100km/120km

Description

RS422 Serial to Fiber/Ethernet Converter

Product Advantages

► 10/100M Ethernet or fiber port is optional

► 4 Port RS-422 (RJ45 ports)

► Support WEB and Telnet configuration

► Support ICMP, TCP, UDP, DHCP, BOOTP, HTTP, Telnet, SNMP, SMTP, DNS protocol

► Have TCP Server, TCP Client, TCP Auto, UDP and Real COM driver working mode

► Support UDP multicast and UDP subnet mode

► Support heartbeat time and time over disconnect function

► Cross-gateway and cross-router communication are available

► Virtual serial COM port access and Network interruption automatic recovery

► Provide Windows configuration tools for easy to use, easy to bath install.

Overview

LNK-2401-RS422 provides 4 port RS422 (RS-232 connector: RJ45), 1 port 10/100Base-Tx Ethernet and 1port fiber. It provides strong function configuration tools based in Windows platform, and can guide user configure the device step by step. All configurations are coming true by WEB or Telnet SNMP, support cross-gateway and cross-router, user can change configure IP address, server and client mode, data bag size etc.

Technical Indexes

RS-422 Port
RS-422 Signal		DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS
Check Bit		None, Even, Odd, Space, Mark
Data Bit		5bit, 6bit, 7bit, 8bit
Stop Bit		1bit, 1.5bit, 2bit
Baud Rate		300bps～115200bps
Load Capacity		RS422 supports 32 points polling
Transmission Distance		15m
Ethernet Port
Standard		10Base-T, 100Base-TX
Protocol		Support ICMP, TCP, UDP, DHCP, BOOTP, HTTP, Telnet, SNMP, SMTP, DNS protocols
Advanced Setting		Force Transmit interval time (0-65535 ms) Delimiter TCP Alive Check Timeout Enable the accessible IP
Network Rate		10/100Mbps
Serial Interface		Serial Interface: RS-232/422/485 No. of Ports: 4 Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485 (2-wire): Data+, Data-, GND RS-485 (4-wire): Tx+, Tx-, Rx+, Rx-, GND
Work Mode		Support TCP Server and Client
Transmission Distance		100m
Fiber Port
Fiber Connector		SFP (LC) / SC
Wavelength		850nm/1310nm/1550nm
Distance		2km/20km/40km/60km/80km/100km/120km
General
Power Supply	DC5V-12V&12-48V
Operating Temperature	0~50℃
Storage Temperature	-30℃-60℃
Dimension	160mm×95mm×28mm
Weight	0.65Kg

Ordering Information

LNK-2401-RS422/M2	4-Port RS422 serial to Ethernet/Fiber converter, MM, dual fiber, 2Km, SC
LNK-2401-RS422/S20	4-Port RS422 serial to Ethernet/Fiber converter, SM, dual fiber, 20Km, SC
LNK-2101-RS422/ETH	1-Port RS422 serial to Ethernet converter
LNK-2201-RS422/ETH	2-Port RS422 serial to Ethernet converter
LNK-2301-RS422/ETH	3-Port RS422 serial to Ethernet converter
LNK-2401-RS422/ETH	4-Port RS422 serial to Ethernet converter
