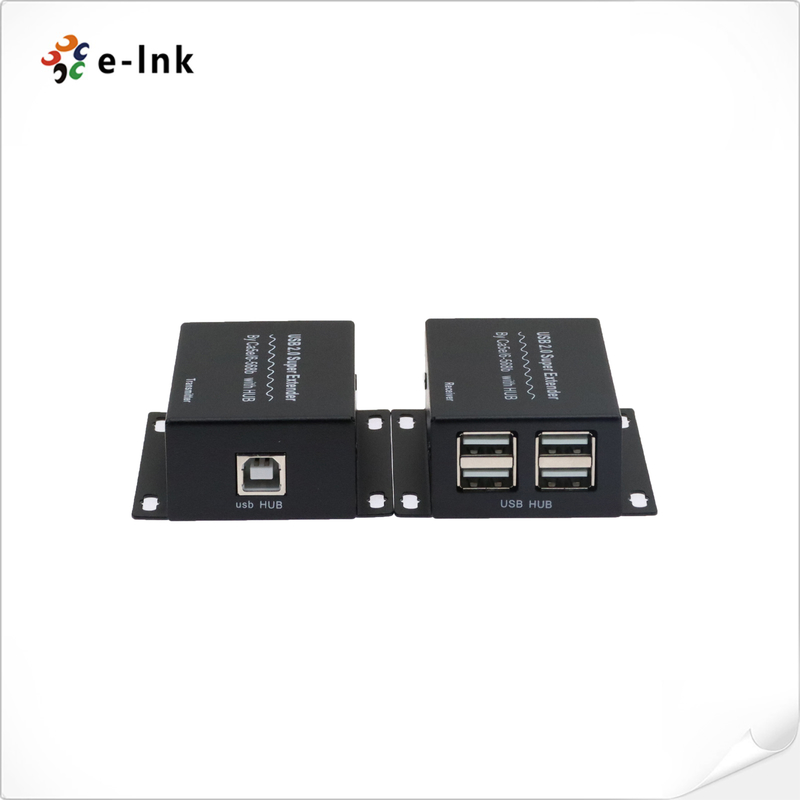

USB2.0 via CAT5e/6e Extender 150M with POC

Name: USB2.0 via CAT5e/6e Extender 150M with POC
Brand: E-link China Technology Co.,LTD
SKU: LNK-USB2.0-150
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-USB2.0-150

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: Industrial PoE Switch standard export package

Delivery Time: 3-6working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Weight:	140g	Operating Temperature:	0~40°C
Storage Temperature:	-40~85℃	Humidity:	5~85%RH (non-condensing)
Size (L× W ×H):	68x82x28 Mm	Wiring Method:	IEEE-568B

Weight:	140g
Operating Temperature:	0~40°C
Storage Temperature:	-40~85℃
Humidity:	5~85%RH (non-condensing)
Size (L× W ×H):	68x82x28 Mm
Wiring Method:	IEEE-568B

Description

USB2.0 via CAT5e/6e Extender 150M with POC

USB2.0 via CAT5e/6e Extender 150M with POC Advantages

· Using CAT6 cable can transmit keyboard, mouse device extend up to 150 meters.

· Compliant with USB 2.0 USB 1.1

· Supports major operating systems: Windows, Mac OS X, Linux etc.

· Supports full-speed(480Mbps) and low speed (15Mbps) USB device.

· Plug and Play, no driver needed.

· Support swap function; plug and play.

· Simple installation.

USB2.0 via CAT5e/6e Extender 150M with POC Overview

This Extender is including Transmitter and Receiver.

Transmitter by CAT5E/CAT6 UTP cable (same line orders with Ethernet). No need install software.

The max distance between Transmitter and Receiver can reach 150 meters when using CAT6 UTP

cable. It is a ideal product in extend keyboard, mouse, writing pad and game controller and other

USB devices.

USB2.0 via CAT5e/6e Extender 150M with POC Technical Indexes

USB input interface	1x USB-A/F
USB output interface	4x USB-A/F
Compatible USB version	USB1.1 and USB 2.0
Wiring method	IEEE-568B
Maximum working current	≤150m CAT5E standard cable
Input cable distance	≤5m USB standard cable
Output cable distance	≤5m USB standard cable
Supports data transfer rates	480Mbps
Power Adapter Specifications	AC(50/60Hz): 100V-240V, DC Output: 5V/1A
Operating temperature range	0~40°C
Operating humidity range	5~85%RH (non-condensing)
Transmitter Dimension	68x82x28 mm
Transmitter Weight	140g
Receiver Dimension	68x82x28 mm
Receiver Weight	140g
