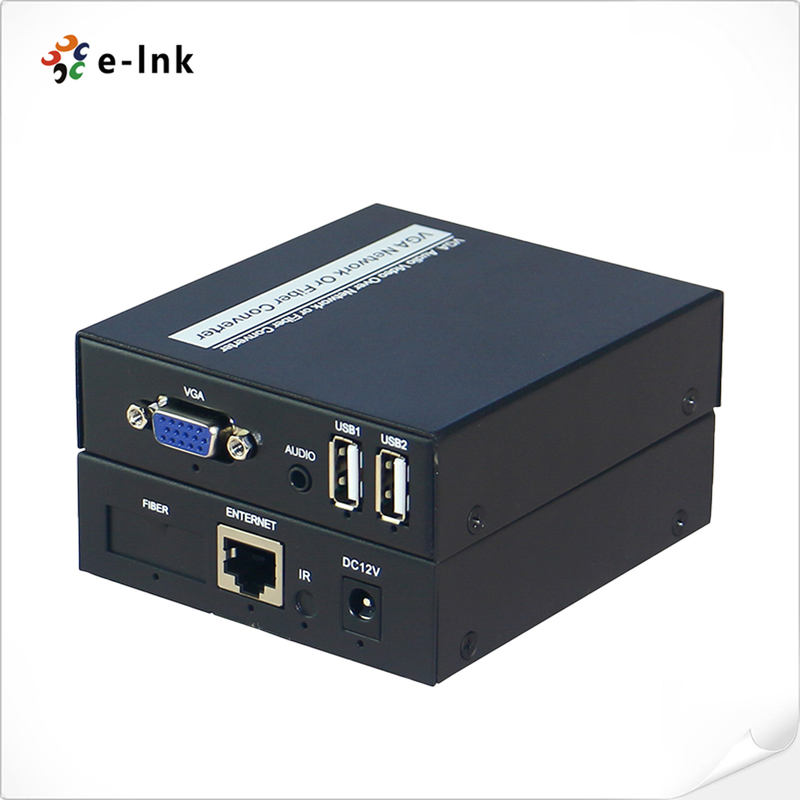

USB VGA KVM over CAT5/6 UTP Extender

Name: USB VGA KVM over CAT5/6 UTP Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-UVGA-T/R
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC, ISO9001

Model Number: LNK-UVGA-T/R

Document: E-link LNK-UVGA-KVM USB VGA....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      VGA KVM UTP Extender, USB VGA KVM UTP Extender


Dimension:	92 X 89 X 26 Mm	Operating Temperature::	-5℃ ~ +70℃
Power Dissipation:	MAX 4W	Power Supply:	Adapter: DC 12V/1A
Audio Port:	3.5mm Stereo Audio Socket	The Warranty:	1 Year Free Warranty

Dimension:	92 X 89 X 26 Mm
Operating Temperature::	-5℃ ~ +70℃
Power Dissipation:	MAX 4W
Power Supply:	Adapter: DC 12V/1A
Audio Port:	3.5mm Stereo Audio Socket
The Warranty:	1 Year Free Warranty

Description

USB VGA KVM over CAT5/6 UTP Extender

Product Advantages

► Transmit VGA video and audio over long distances through the cable, up to 150 meters;

► The highest resolution HD video signals up to 1080P @ 60Hz;

► Compliance with VGA standard protocol;

► Support for external one-way analog stereo audio signal transmission;

► Support USB keyboard and mouse transmission;

► It can automatically identify and configure a variety of display modes;

► Built-in automatic equalization system, the picture is smooth, clear and stable;

Built-in ESD Protection Circuit, comprehensive protection system

Overview

LNK-UVGA-KVM Extender could transmission high-definition video long distance through a single cable, while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications.

Technical Indexes

Parameter		Description
Video	Signal Type	VGA
	BW	380MHz
	Resolution	1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps
	Impedance	75Ω
Audio	Port	3.5mm Stereo audio socket
Audio	Type	Stereo
K/M	PIN	USB
Ethernet port	Cable Type	IEEE 568B
Ethernet port	Max transmission distance	Cat5e :120m,cat6 :150m
Other	Power	Adapter: DC 12V/1A
	Power dissipation	MAX 4W
	Temperature	Operating:-5℃ ~ +70℃
	Humidity	Operating:5% ~ 90%
	Size	92 x 89 x 26 mm
	Warranty	1 year

Ordering Information

Part No	Description of product
LNK-UVGA-T/R	VGA Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters
LNK-UVGA-KVM-T/R	USB VGA KVM Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters
