Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC104G-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: 19.9USD/PCS
Packaging Details: Industrial Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Keyword: |
Industrial Ethernet Switch |
Connector: |
4 X RJ45 |
Input Power:: |
12~48VDC (Terminal Block) |
Dimensions (WxDxH):: |
95 X 70x 29mm |
Weight: |
0.25KG |
Operating Temperature:: |
-40°C To 75°C (-40°F To 176°F) |
Casing:: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Keyword: |
Industrial Ethernet Switch |
Connector: |
4 X RJ45 |
Input Power:: |
12~48VDC (Terminal Block) |
Dimensions (WxDxH):: |
95 X 70x 29mm |
Weight: |
0.25KG |
Operating Temperature:: |
-40°C To 75°C (-40°F To 176°F) |
Casing:: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Industrial Ethernet Switch Advantages
► 100/1000BASE-X SFP slots for SFP type auto detection
► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
Technical Indexes
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W |
| Power Input Overload: | Automatic Resettable |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR: | Power |
| L/A: | Link/Activity |
| SPD | Data Rate |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
Overview

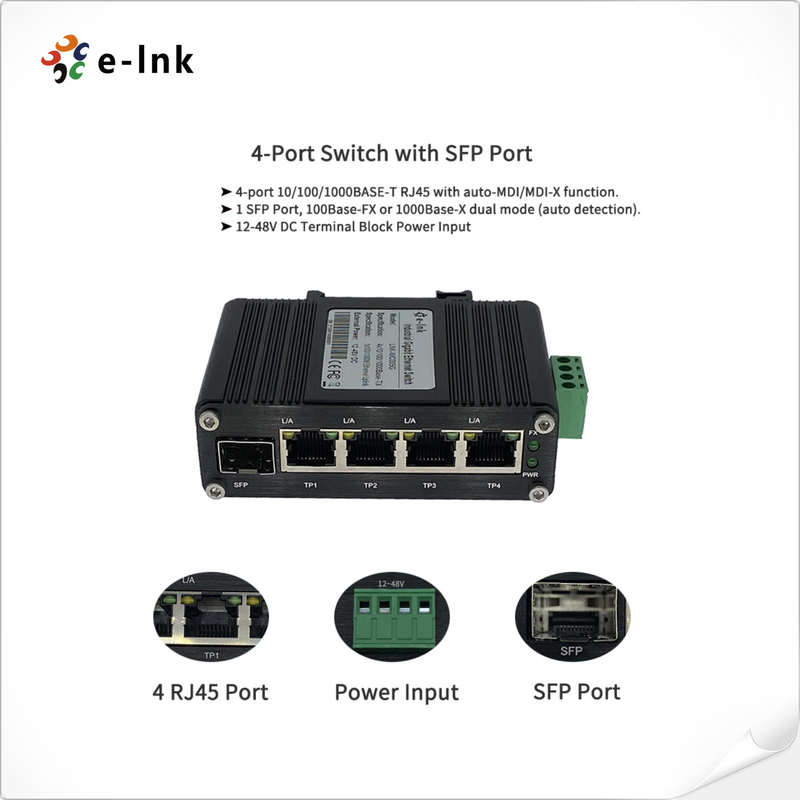

LNK-IMC104G-SFP Series is a Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards.
With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC104G-SFP | Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
