Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC104GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: 29.9USD/PCS
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000pcs/month
Keyword: |
Industrial PoE Switch |
Input Power:: |
12~48VDC (Terminal Block) |
Power Consumption:: |
<125W (Non-PoE<6W) |
Dimensions (WxDxH):: |
95 X 70x 29m |
Weight: |
0.25Kg |
Casing: |
Aluminum |
Operating Temperature:: |
-40°C To 75°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Keyword: |
Industrial PoE Switch |
Input Power:: |
12~48VDC (Terminal Block) |
Power Consumption:: |
<125W (Non-PoE<6W) |
Dimensions (WxDxH):: |
95 X 70x 29m |
Weight: |
0.25Kg |
Casing: |
Aluminum |
Operating Temperature:: |
-40°C To 75°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Industrial PoE Switch Advantages
► 100/1000BASE-X SFP slots for SFP type auto detection
► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► 12~48VDC wide range power input with power booster function
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 75°C (-40°F to 176°F) operating temperature
Technical Indexes
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 176°F) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
IEC 61000-4-8: 2009 (PFMF) | |
Overview

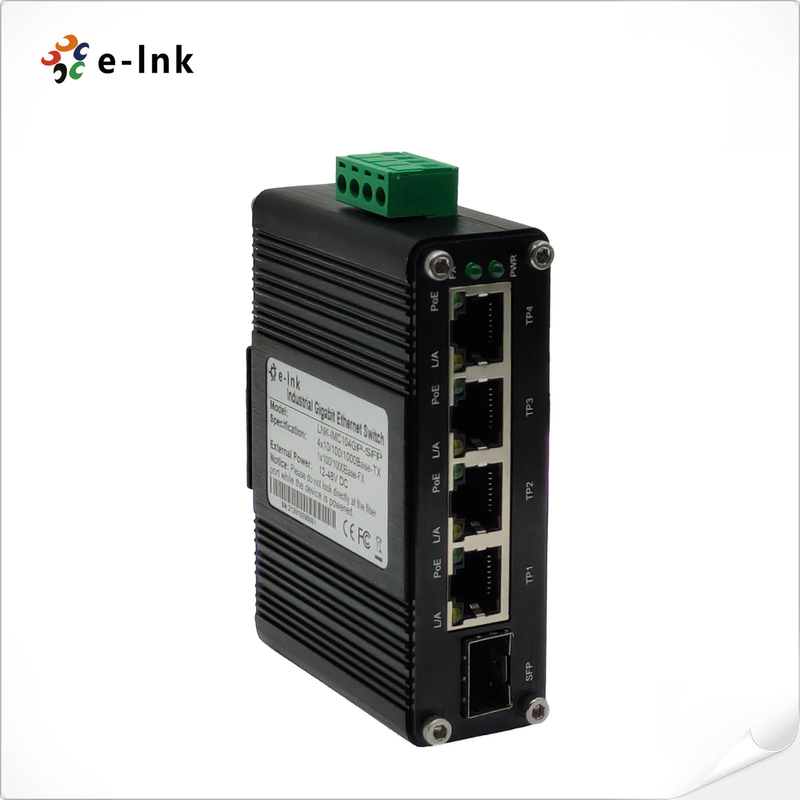

LNK-IMC104GP-SFP Series is a Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster.
This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC104GP-SFP | Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
