Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC108GP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Industrial PoE Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
8 Port 802.3at PoE Switch |
Optical Port: |
1 Port 1000Base-X (SFP, SC, FC, ST Optional) |
RJ45 Port: |
8 Port 10/100/1000T 802.3at |
Input Power: |
48~57VDC Redundant Power |
Power Per Port: |
30W Max Per Port |
Mounting Options: |
DIN-Rail / Wall-mount |
Keywords: |
8 Port 802.3at PoE Switch |
Optical Port: |
1 Port 1000Base-X (SFP, SC, FC, ST Optional) |
RJ45 Port: |
8 Port 10/100/1000T 802.3at |
Input Power: |
48~57VDC Redundant Power |
Power Per Port: |
30W Max Per Port |
Mounting Options: |
DIN-Rail / Wall-mount |

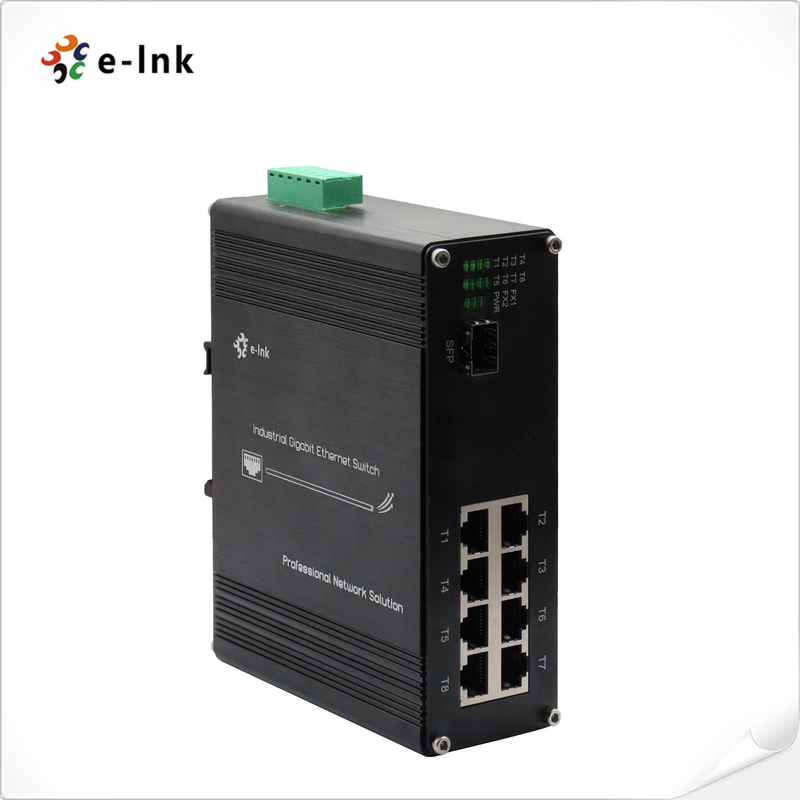

8 Port Unmanaged 802.3at PoE Switch Redundant Power Inputs
Din Rail Industrial Unmanaged 8 Port 802.3at PoE Switch
8 Port 10/100/1000T 802.3at PoE To 1-Port 1000Base-X SFP
8 Port Unmanaged PoE Switch 30W Advantages
► 8 10/100/1000Base-TX + 1 1000Base-X
► Supports IEEE 802.3at PoE+ (30W per port)
► SFP, SC, FC, ST Optional
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
Gigabit PoE Switch 8 Port 802.3at Overview
LNK-IMC108GP is an 8 ports 10/100/1000Base-TX + 1 port 1000Base-X Hardened PoE switch. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
8 Port 1000Mbps Gigabit PoE Switch Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE802.3x Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
1 x 1000Base-X (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
253W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
8 Port PoE to 1 Port SFP Industrial Fiber Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC108GP |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 1-Port 1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC108GP-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 1-Port 1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC108GPS-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 1-Port 1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC108GPF-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 1-Port 1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC108GP-SFP |
Industrial 8-port 10/100/1000BASE-T (8-port PoE+) + 1-port 1000BASE SFP Ethernet Switch |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page |
|
SFP module is to be purchased separately. |
|
|
Mounting Options |
Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
Power Supply is to be purchased separately. |
